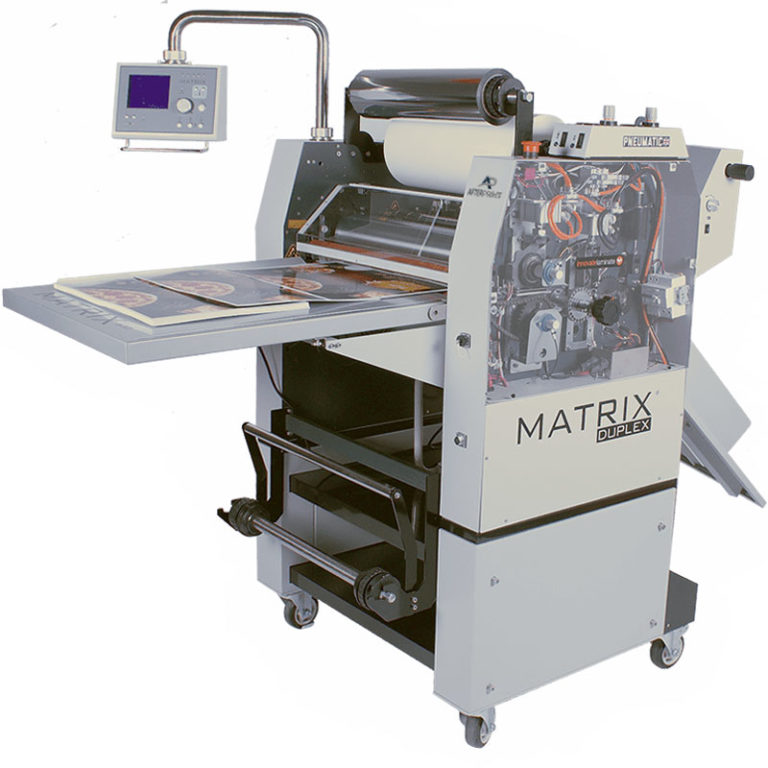

Matrix MX-370DP Duplex Digital Laminator

  • Single & Double Sided Digital OPP Laminator
  • Compatible with Digital OPP Laminating Films
  • Semi-Automated Single Operator System
  • Create Beautifully Finished Work with Toner Foils & Special Effect Films
  • Swing Out Multilingual Control Panel
  • Produce up to 20 Guillotine Ready Laminated Sheets per Minute
  • Large Diameter Chrome Top Application Roller
  • Inline Perforation & Sheet Separation (Bursting)
  • Perfect for Short to Medium Run Lengths
  • Ideal for Copy Shops & Digital Printers
  • Call or Click Enquire to Request an Official Quotation
Read MoreLess

Description

Demonstration Video

Specifications

Alliance Package Included

Ancillaries

The Matrix MX-370DP SRA3 pneumatic duplex laminating, digital foiling and special effects system. Cost and time-efficient laminating with the duplex option, enabling you to laminate both sides at the same time. Create eye-catching finishes using foil and special effects with the pneumatic option, achievable with pressure adjustable rollers.

Patented semi-automatic feed and pneumatic pressure rollers also allow you to laminate certain substrates up to 50% quicker. In addition to saving time, cost and providing an affordable and effective solution to outsourcing.

Built for continuous use on an everyday basis. Constructed using the highest quality components including Omron switches and Schneider electrics. Heavy-duty motors and all-metal construction further enhance the robustness of the Matrix MX. Breathe life into your business with the Matrix MX series of Pneumatic Laminators. Allowing you to provide your customers with a service you previously had to outsource. Thus, enabling you to offer your customers a true one-stop-shop.

Unique Benefits of the Matrix MX Duplex Series

Single side & duplex two side digital laminating is a popular requirement for printers and copy shops. Ideal for the production of a wide range of items from business cards to menus. Small Businesses outsourcing work can add huge costs. The Matrix MX-370DP can laminate two sides simultaneously, speeding up production.

Operate with ease using the intuitive, swing-out control panel with clear, functional LCD Display. With very little training or expertise. Control temperature, speed, start/stop and a reverse function in case of a loading error or jam from one control panel. The patented semi-automated feed with sheet burst separation at the rear ensures only one operator is needed. Sheets are automatically overlapped, perforated and then separated to deliver guillotine ready sheets onto the output tray. Whilst the integrated adjustable anti-curl bar ensures flat sheets are produced. Add the Omni-Flow 370 Feeder and you can automated the complete process and remove the need for a dedicated operator whilst increasing productivity even further.

The increased pressure applied using pneumatics allows more difficult substrates to ran with confidence. In addition, to increased productivity with up to 50% quicker operation, saving both time and cost. The pneumatic components are all produced in Britain, this shortens the supply chain and lead times.

These models can also create beautifully finished work using foils and special effect films. Special custom blocks or dies are normally required to create foiling effects. But, with the Matrix, this is achievable due to the adjustable pressure from the pneumatic rollers.

Matrix MX Duplex models are available in 370 and 530 mm widths covering single side & duplex double side OPP laminating from SRA3 to B2. The operating speed is adjustable from 0.5 to 10 Metres Per Minute and all come complete with a sturdy chrome mandrill and 3″ Core Adaptors.

Why Matrix MX-370DP?

The Matrix MX-370DP Duplex Digital Laminators offer excellent build quality, reliability and affordability. Available in 2 sizes, 2 production speed options and with single or double sided laminating capabilities. More than just a Laminator, the Matrix MX-370DP can produce beautifully finished work using foils and special effect films.

Single person operation producing guillotine ready sheets at a rate of up to 40 sheets per minute (MX-530PS). Modular design allows the system to grow as your demands change, adding the Omni-Flow feeder automates production. Built using high end components from Omron and Schneider electrics, all metal construction with heavy duty motors and chain drive. They are built to last in today’s most demanding environments.

5 Reasons to Buy A Matrix MX-370DP
  • Highly Productive SRA3 Single & Double Side (Duplex) Laminating
  • Create Beautifully Finished Work Using Foil & Special Effect Films
  • Single Operator Can Easily Create up to 20 Guillotine Ready Sheets Per Minute
  • Automated Sheet Overlap & Burst Function
  • Modular Design Grows with your Business
Typical Applications – Matrix MX-370DP
  • Single Side Laminating
  • Duplex Double Side Laminating
  • Toner Foiling & Special Effects
  • Secure Ticketing Applications
  • Menu’s, Flyers, Postcards
  • Business Cards
  • Greeting Cards
  • Book Covers
  • Thank You Cards
  • Max Speed – 10 Metres Per Minute
  • Max Laminating Width – 340mm
  • Minimum Paper Thickness – 135gsm
  • Max Sheet Width – 420mm
  • Warm up Time – 10 Minutes
  • Laminating Temperature Range – 0/140 Degrees Celsius
  • Control Panel – Multi-Lingual LCD
  • Pressure Adjustment – Pneumatic
  • Film Core – 3″ (77mm)
  • Power Consumption – 4,500W
  • Power Requirement – 230V AC 32A
  • Overall Dimensions – 800 x 1800 x 1400mm
  • Gross Machine Weight – 285 Kgs
  • Manufacturer Warranty Period – 12 Months

Introducing our unique Alliance Package. Our support does not cease once we make the sale or agree on a deal. At AfterPrint Ltd we are unique; our aim is to develop long term business relationships that ensure you return to buy again when the time comes.

To ensure we are offering the most comprehensive package all of our Digital Finishing Solutions come complete with our unique Alliance Service Package. This package ensures your new purchase is taken care of correctly from day 1 and throughout your ownership of the product, to do this we include:

Delivery

  • A Pre-Delivery Inspection is conducted on every machine prior to shipment
  • A site survey will be conducted prior to shipping to ensure the delivery goes smoothly
  • Specialist instrument logistics companies with freight insurance are used for delivery
  • All deliveries are completed with Tail-Lift equipped vehicles & a minimum two-person team
  • Customers are offered suitable timed delivery slots with a 2 Hour delivery window

Installation

  • Our Installation Team will arrive at an agreed time to complete the installation (Normally on the same day as the delivery unless otherwise specified)
  • The installation team will complete a thorough check of all processes and operations of the machine against the PDI checklist
  • If the machine has been split into smaller components for delivery, the installation team will re-build the machine onsite
  • Standard installation is ground floor with direct access, splitting the machine and re-building will not incur extra charges
  • Installations required on upper floors will require lift access or extra charges will be incurred. All charges will be made clear and agreed upon before the installation date.

Training

  • Training will be conducted by our trained and certified Specialist Training Team
  • Training includes Best Working Practices for Safe Operation, General Operation, Job Programming, Film Changeover & Webbing Techniques
  • All trained operatives will be issued with an official training certificate from our Certified Trainers (Certificates are created and posted within 7-10 days of training completion)
  • Training is completed in small groups of up to three people maximum
  • Training is normally completed on the same day as the installation

12 Month Manufacturer Warranty

  • Manufacturer Warranty on all parts from the date of installation
  • All Manufacturer warranties do not include labour, travel or identifying of parts (See Service Section)

12 Month Alliance Service Benefits

  • 20% Discount on All Parts (Discount will be taken from Standard UK Sales Price of each Part)
  • Direct Technical Team Access on the first phone call to discuss the fault (this will speed up any part requirements and offer a solution if possible that the operator can implement)
  • Guaranteed next day appointment for an engineer to be onsite (Technical team will allocate during the initial phone conversation and confirm)
  • Technical Team will identify if parts could be needed to resolve the issue, parts will be dispatched the same day so the engineer can meet parts on-site and perform the repair
  • Parts will only be requested for payment once the parts are fitted and the machine is operational (All parts will be paid on account)
  • 3 Month Warranty on all parts we fit (Manufacturer standard warranty is 30 days)
  • No Call-Out Charges for Emergency Calls
  • No Travel Charges for Emergency Calls
  • No Labour Charges (Includes all-time on-site under normal contract conditions)
  • 2 Preventative Maintenance visits per annum
  • Call out priority given to customers on an agreement (Contracts will take precedence over an Ad-Hoc call out)
  • Unlimited Emergency Call Outs – Within reason, Excludes intentional damage
  • Free Technical Advice on how to set up machinery or complete certain tasks
