Used Duplo iSaddle Booklet System
- Powerful Fully Automated Booklet Making System for short & long run applications
- Collate, Crease, Plough Fold, Stitch & 3 Knife Trim in one Pass (5 knife trim also possible with slitter unit)
- Heavy Duty Commercial Solution for High Volume Production of Booklets (Just as suitable to short run work)
- Capable of Producing A4 Landscape Booklets
- Handles up to 6 Different Sheet Sizes in the same booklet
- Handles Booklets with Pockets and Flaps
- Can Handle Sheet by Sheet or Uncollated Sets (Mix & match digital output with Lithographic work)
- Integrates Duplo’s Powerful DSC 10/60i Intelligent Vacuum Collator Towers
- Handles a Wide Variety of Media from 52 to 300gsm
- PC Controlled System with Duplo Software (Very easy to use from central PC Control)
- Compact Foot Print built in a U-Shape to Ergonomic Operation
- Automatic Setup – User Friendly
- Produce up to 5,000 Booklets per Hour (1-Up) 9,000 Booklets per Hour (A6 @ 2UP)
- Ideal Solution for Commercial Print, Digital Printers, Universities, Local Government
- Very Economical to Run
- Delivery, Installation & full operator Training also available (Extra costs may apply)
Read MoreLess
Description
Demonstration Video
Specifications
We have available this 2nd User 2018 Duplo iSaddle Booklet Making System with just 490,000 Booklets processed since new. The system comprises of:
- Duplo DSC 10/60i Intelligent Collator Towers with Ultrasonic Double Sheet Detection on Top 2 Bins (PC Controlled)
- Duplo DC-12JR Jogger Unit

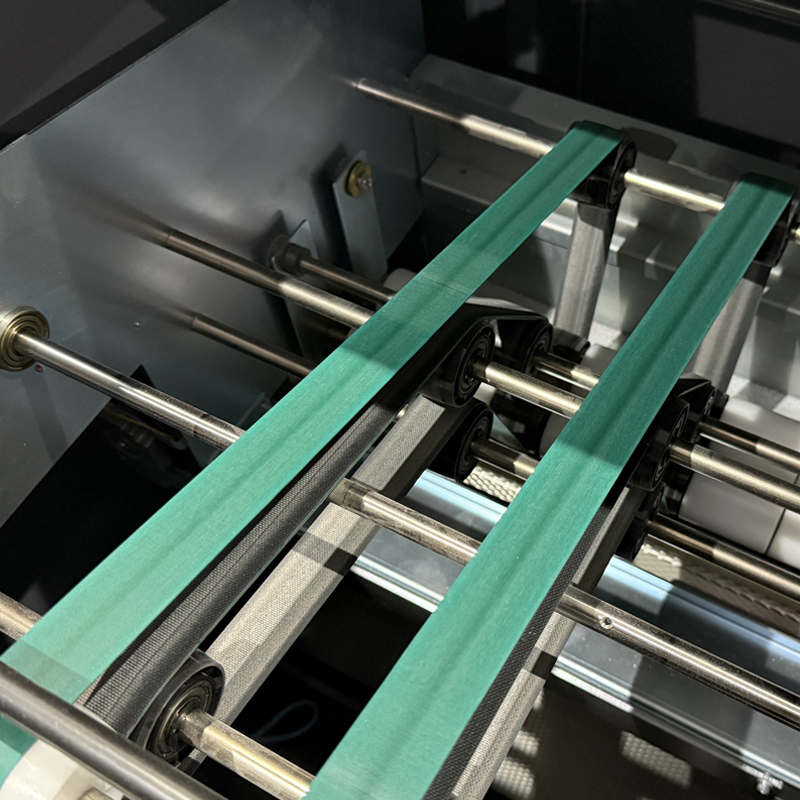

- Duplo DBMS-F Accumulator, Crease & Plough Fold Unit
- Duplo DBMS-S Stitching Unit (Twin Hohner Stitching Heads with option for up to 4 Stitching Heads)
- Duplo DBMS-T Front Edge Trimmer Unit
- Duplo DKT-200 Two Knife Trimmer (Removes the Header & Footer)
- Extended Delivery Unit
- High Capacity Waste Conveyor (Takes the trimmed waste from both trimmer units and drops it into a high volume waste bin)
The complete system is in immaculate condition throughout having only been lightly used by a local council since installation in 2019. The total count on the machine is just 490,000 which equates to just 77 Hours of running time. The machine has been serviced and maintained since new by Duplo UK with the last service completed just before the machine was removed. We have the machine setup in our showroom and welcome any trial or demo. It is the perfect upgrade to an existing Duplo system and offers exceptional value for money. New this system has a retail value of well over 130K + VAT, we are offering this complete system for less than half price!
About Duplo iSaddle
Duplo’s iSaddle Saddle Stitch System combines traditional stitched booklet production on a saddle. Adding the versatility needed for short run operation in today’s fast changing commercial print environment.
With the ongoing trend for ever shorter runs with faster delivery times. There has never been a greater need to invest in solutions that deliver high quality results and adapt to many production formats and requirements. The iSaddle provides the convenience of production from a flat sheet. Combined with features to produce a wide range of profitable applications, allowing users to differentiate themselves from the competition.
Designed with ease of use in mind. Its complete automation and intuitive programming make it possible for a single operator to perform change-over in minimal time. Thus swiftly and easily tackling a wide range of formats from the very small to oversize A4 landscape with minimal intervention. The versatile and superior suction feed collators enable quick makeready between different formats and media printed on both litho and digital presses.
Buts its not only automation and ease of use that set the iSaddle apart. It is also in the wide range of booklets that can be produced where it can make a real difference, removing the need to sub-contract complex finishing and therefore bringing in more revenue. In addition to simple booklets, the iSaddle can handle covers with pockets and flaps, as well as produce stepped format pages made from up to six different sized sheets within the booklet.
Despite being designed to support the varied needs brought by shorter runs, the iSaddle has also been engineered to suit longer runs. This is most apparent at the end of the system in the DKT-200 Trimmer which will finish a book with a three or five knife trim, allowing 2-up layouts of small format books and so doubling speed!
Why Duplo?
Duplo is a Japanese company which was established in 1951. Manufacturing one of the first duplicators in the print industry. In 1959, Duplo got its name “Duplo” coming from the word “Duplicator”. Duplo is now the leading supplier of print finishing equipment in the world having launched over 50 product ranges.
Today Duplo is dedicated to turning paper into great communication, pushing the boundaries of what’s possible with printed media. Duplo lead the world in the field of Multi Function Finishing Machines with the DC618, DC648 & DC746. Duplo were the first to bring this style of machine to market with the latest evolutions offering incredible performance and automation. Their booklet making ranges are just as impressive, starting with the entry level DBM150 through to the iSaddle systems, a solution for every requirement.
5 Reasons to Buy a Duplo iSaddle Booklet Maker System
- The most powerful booklet making solution in Duplo’s range designed for the commercial printer
- Plough folding on a saddle provides much flatter finished results
- Handles both very small and large formats up to oversized A4 landscape
- Intelligent Collator Towers allow Pre-Collated Sets to be handled alongside traditional uncollated Litho Printed Materials
- Produce up to 5,000 booklets per hour
Typical Applications – Duplo iSaddle Booklet Maker System
- A4 Landscape Booklets
- Booklets
- Order of Service
- Brochures
- Magazines
- Newsletters
- Instruction Manuals
- Training Manuals
- Menu’s
Duplo iSaddle Specifications
- Maximum Sheet Size (W x L) – 356 x 508mm (Long sheets over 500mm Max is 230 x 610mm)
- Minimum Sheet Size (W x L) – 120 x 210mm
- Maximum Finished Trimmer Booklet Size 1-Up Production (W x L) – 350 x 250mm (Long sheets over 500mm Max is 210 x 305mm)
- Minimum Finished Trimmer Booklet Size 1-Up Production (W x L) – 120 x 75mm
- Maximum Finished Trimmer Booklet Size 2-Up Production (W x L) – 174 x 254mm
- Minimum Finished Trimmer Booklet Size 2-Up Production (W x L) – 90 x 75mm
- Max Booklet Thickness – 6mm (30 Sheets of 80gsm, 120 page booklet)
- Fore Edge Trimming Capacity – Max 75mm with 12 pages of less or Max Thickness 6mm 120 page booklet
- Fore Edge Trimming Waste Width – 2 to 25mm
- Head & Foot Trim – Adjustable from 1 to 30mm on each side (6mm gutter up to 2.4mm thickness, 8mm gutter up to 4mm thickness)
- Max Processing Speed – Up to 5,000 Booklets per Hour (1 Up) or 9,000 per Hour (A6 @ 2-up)
- Number of Stitching Heads – 2 (Option for up to 4 stitching heads)
- Adjustment – Independent Stitch Head Positioning from 55 to 196mm Centres, Crease Depth, Independent Skew for Stitch, Fold & Trim
- Error Detections – Stitching Wire (on the saddle), Paper Feed, Paper Jam, Safety Guards

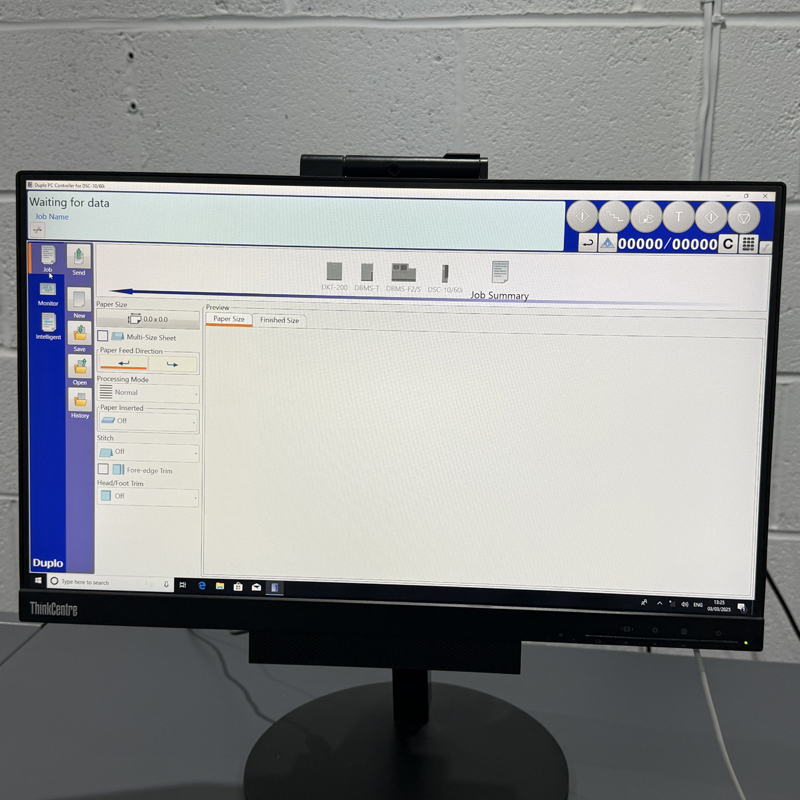

- Operation Panel – PC Controller (Software driven with direct control of all electronic aspects of the complete system)
- Dimension (Complete with 2 x DSC 10/60i Towers) W x D x H – 3,340 x 4,250 x 1,970mm
- Weight – 2,430kg
- Power Connection – 240Vac 50/60Hz (Normal UK Plugs throughout)
Duplo DSC 10/60i Collator Specifications
- Number of Bins – 20 (Twin Tower System)
- Bin Capacity – 65mm
- Sheet Length – 148 to 610mm
- Sheet Width – 105 to 356mm
- Paper Weight – 52 – 300gsm
- Paper Type – Sheet, Folded, Cross Folded
- Detection – Double Feed (Ultrasonic on Bin 1 & 2 on Tower 1 – Others Optical), Miss-Feed, Paper Jam, Bin Empty
- Feed System – Vacuum Belt with Air Sheet Separation (AMS) Fully Adjustable Air Flow & vacuum settings on every bin
- Other Features – Programmable Intelligent Feeding, A4 Landscape Mode, Multi-size sheet handling, Hand Marry Mode, Hand Feeding Mode
Overall System Dimensions
- Twin Tower Configuration (Includes Delivery Unit) – (W x D x H) – 3,340 x 4,250 x 1,970mm
