Used Duplo 350CR Booklet Maker System

  • Fully refurbished
  • Comes with a 3 Month Parts & Labour Warranty
  • Powerful Automated Booklet Making System for Digital Print
  • Incorporates Powerful Stitching Heads for Lower Operational Costs
  • Fully Automated Setup of Stitching Head Positions, Fold Position, Trim Position
  • Feed, Slit, Crease, Stitch, Fold & Trim in One Pass
  • Professional Quality System for Mid-Volume Users
  • Integrates Duplo’s Powerful DC445 Digital Crease Feeder with Vacuum Feed Technology
  • Feeds Pre-Collated Media – No Need for a Collator Unit
  • Handles a Wide Variety of Media from 64 to 300gsm
  • Modular Design Grows and Adapts as your Business Demands Change
  • Compact Foot Print – Under 3.5 Metres in Length
  • Automatic Setup – User Friendly
  • 4 Finishing Modes – Booklets, Side Staple, Corner Staple, Fold Only
  • Produce up to 2,000 Booklets per Hour
  • Ideal Solution for Commercial Print, Digital Printers, Copy Shops
  • Very Economical to Run
  • Available for Demonstration
Read MoreLess

£14,995.00 ex VAT

£17,994.00 inc VAT

£14,995.00 £17,994.00Add to basket

Description

Demonstration Video

Specifications

Ancillaries

We have available this used/pre-owned Duplo 350CR Booklet Maker System. The machine has been fully refurbished including a complete full strip-down and rebuild with all worn or tired components replaced.

The 350 CR Duplo Booklet Maker is an economical booklet-making system for digital full-colour print. Cut, crease and make booklets in one pass. Utilising the powerful versatility of the Duplo DC445 as a feed engine and as a two-knife slitter, the 350 CR is ideal for short to medium-volume digital print output. 30 programs offer a load-and-go solution offering unattended operation and the removal of guillotining from your process of booklet production.

The introduction of fully position adjustable Stitching Heads and a Booklet Press adds speed and versatility to this solution. Marry the extra speed with the ASM350 Square Back solution, bar code reader and the optional side air kit and you have a solution that can run variable data, virtually any stocks, even fresh from the print engine, and booklets as small as A6.

The Duplo 350CR Booklet Maker consists of:

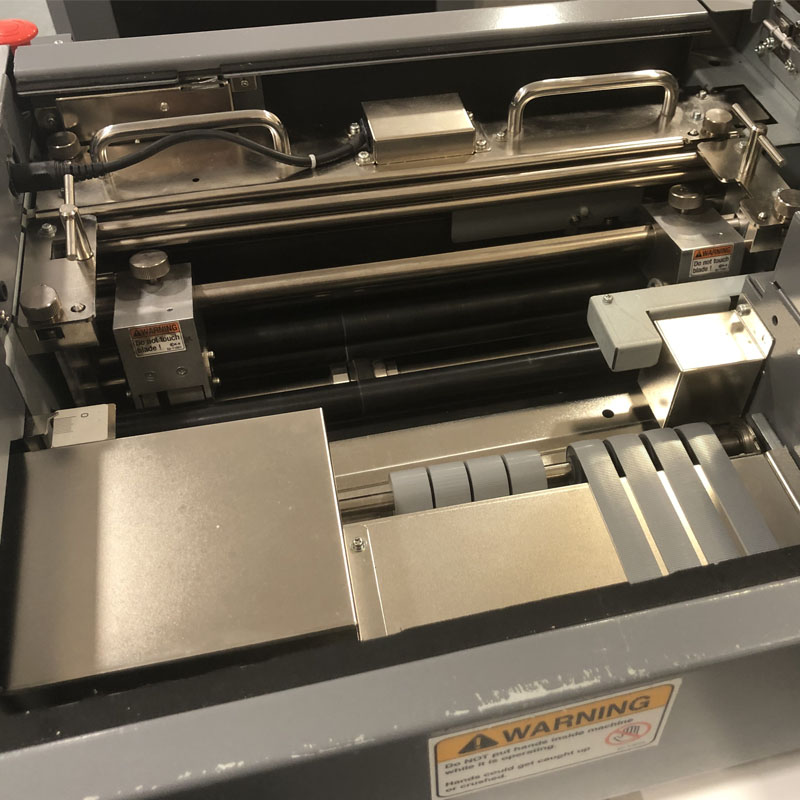

  • DC445 Digital Creaser
  • DC445 Bridge Conveyor
  • DBM350 Booklet Maker
  • DBM350 Front Edge Trimmer

Comes with a 3 Month Parts & Labour Warranty.

Installation & Training can also be provided upon request – Extra charges may apply.

Available for demonstration.

Duplo DBM350T Specifications

  • Maximum Sheet Size Booklets (W x L) – 320 x 460mm
  • Minimum Sheet Size Booklets (W x L) – 148 x 210mm (105mm width possible with Small Booklet Kit)
  • Maximum Sheet Size Side or Corner Stapling (W x L) – 320 x 231mm
  • Minimum Sheet Size Side or Corner Stapling (W x L) – 200 x 180mm
  • Paper Capacity – 20 Sheets + Cover x 1 (300gsm+)
  • Cover Type – Art Coated up to 300gsm
  • Stapling Thickness – Fine Quality up to 2.0mm regardless of paper weight / Art Coated up to 1.9mm regardless of paper weight
  • Trimming Capacity – 4 to 50 sheets
  • Trimming Waste Width – 1 to 20mm
  • Max Processing Speed – Up to 2,000 Cycles per Hour
  • Number of Stitching Heads – 2
  • Stitch Positions – Saddle, Fold Only, Corner & Side Stitch
  • Adjustments – Independent Stitch & Fold Position Adjustment, Independent Skew Adjustment for Stitch, Fold & Trim
  • Error Detections – Double Feed, Miss Feed, Bin Empty, Paper Jam, Staple Near Empty, Cover Open, Stop Position Error, Motor Overload, Fold Roller Gap Setting
  • Operation Panel – Individual LCD Panels on DC445 & DBM350T
  • Noise Emission – 75db (A)
  • Dimensions (W x D x H) – 2,740 x 650 x 1,030mm (Inc Belt Stacker)
  • Net Weight – 310kgs

Duplo DC445 Crease Feeder Specifications

  • Number of Bins – 1
  • Maximum Sheet Size (W x L) – 330 x 670mm (Sheets longer than 450mm are crease only)
  • Minimum Sheet Size (W x L) – 140 x 150mm
  • Paper Type – Uncoated, Coated & Laminated
  • Input Paper Weight – 110 to 350gsm (paper curl within +/- 3mm)
  • Feeder Capacity – 100mm (exit tray 110mm)
  • Feeder Type – Top feed / 8 belt suction
  • Feeder Speed – A4 SEF (1 crease) 3,600 sheets p/hr, A4 SEF (2 creases) 1,860 p/hr, A3 SEF (1 crease) 2,340 sheets p/hr, A3 SEF (2 creases) 1,740 sheets p/hr
  • Number of Creases – Up to 20 creases per document across the paper direction
  • Crease Depth Adjustment – 3 Steps (from control panel)
  • Crease Tolerance – +/-0.3mm
  • Minimum Repeat Distance – 0.1mm
  • Error Detections – Paper Jam, Double Feed, Feeder Empty, Stacker Full
  • Operation Panel – LCD Display
  • Optional – Ultrasonic double sheet detector, Perforation & Slitting modules, Feed table extension
  • Dimensions (W x D x H) – 1,262 x 618 x 1,090mm
  • Net Weight – 114kgs
  • Power Consumption – 160W, 0.6A
  • Power Requirement – 230V, 50Hz – Normal UK Plug

Overall System Dimensions

  • Duplo 350CR System (W x D x H) – 3,100 x 750 x 1,090mm
