Duplo DC615 Pro Slitter, Cutter & Creaser

  • Fully automated multi-function finishing solution
  • Slit, Cut & Crease in a single pass
  • Automates the complete finishing cycle in one pass
  • Replaces the guillotining process within a digital print environment
  • Unattended operation thanks to Barcode Reader

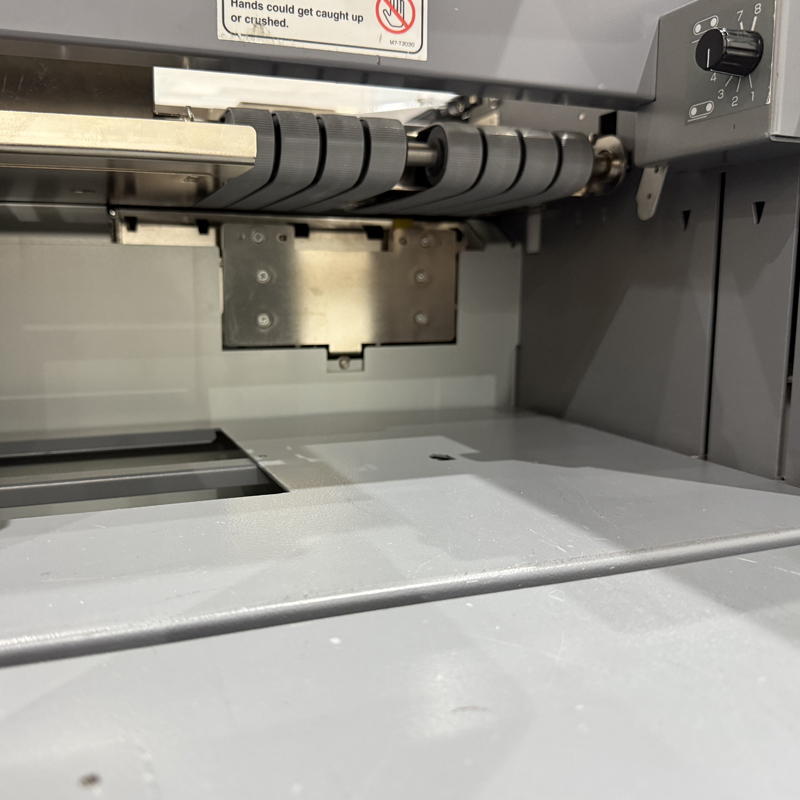

  • Top feed vacuum technology
  • 100mm feeder capacity for uninterrupted production

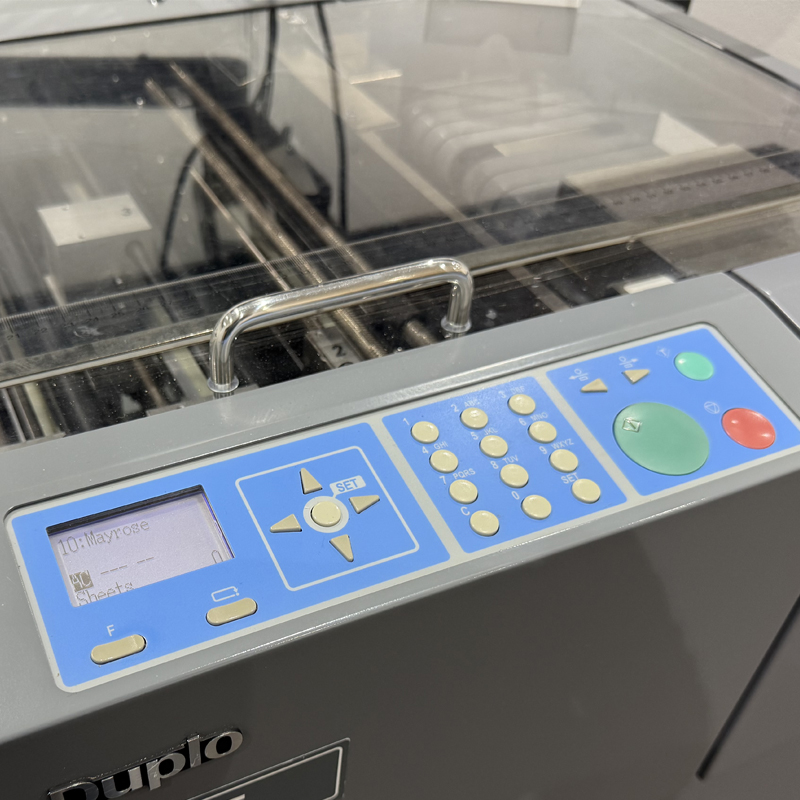

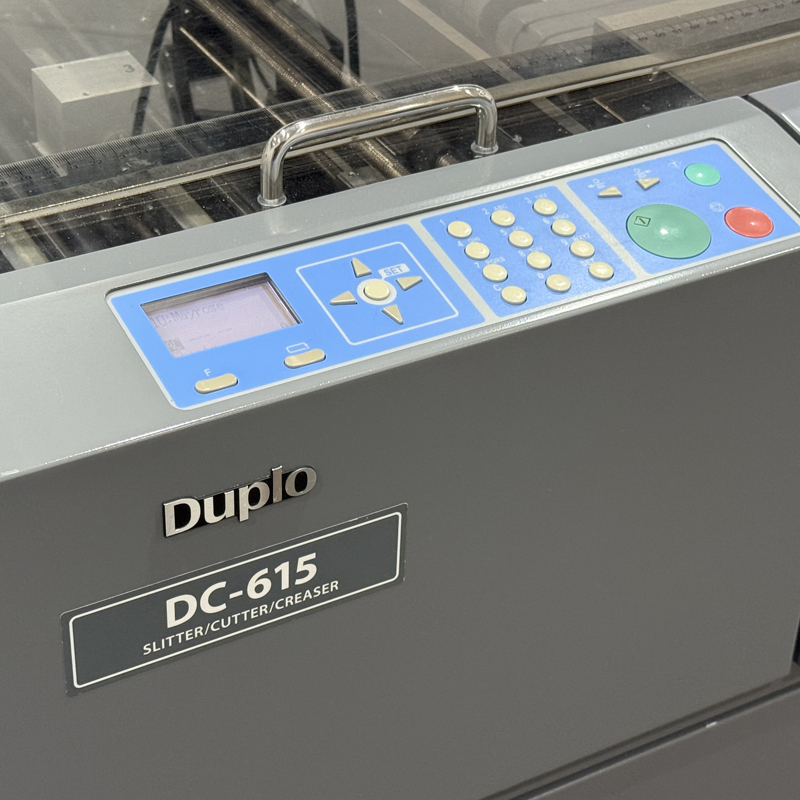

  • LCD Control panel with 80 program memory
  • Apply up to 6 slits, 10 creases and 15 guillotine cuts
  • Electronic depth adjustment of crease depth
  • Handles a Wide Variety of Media Types – Coated, Uncoated and Laminated materials
  • Process up to 9 sheets per minute
  • Very Economical to Run
  • Call or Click Enquire to Request an Official Quotation
Read MoreLess

£4,995.00 ex VAT

£5,994.00 inc VAT

Description

Specifications

Alliance Package Included

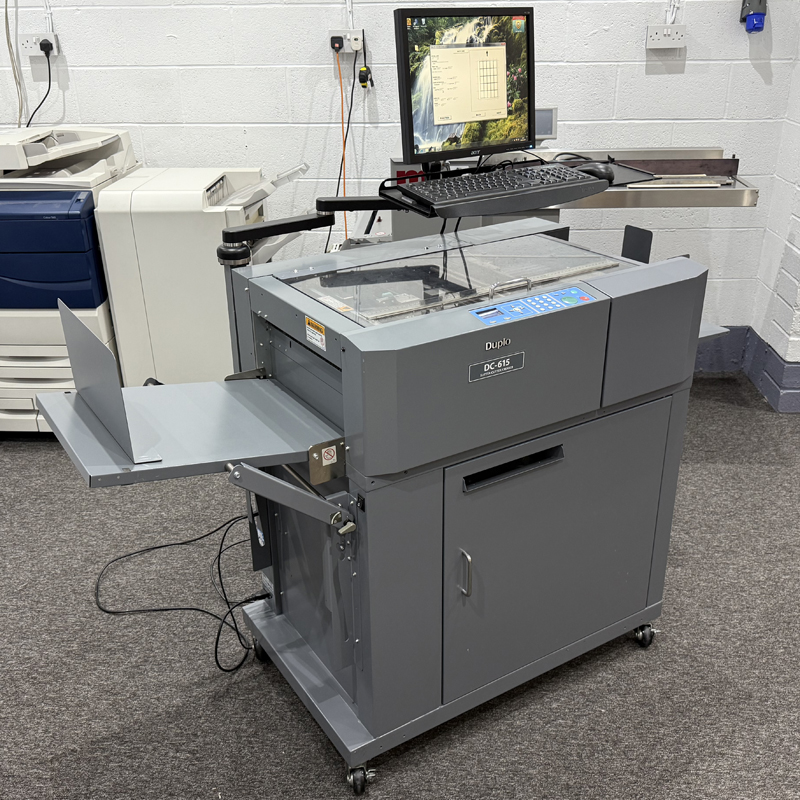

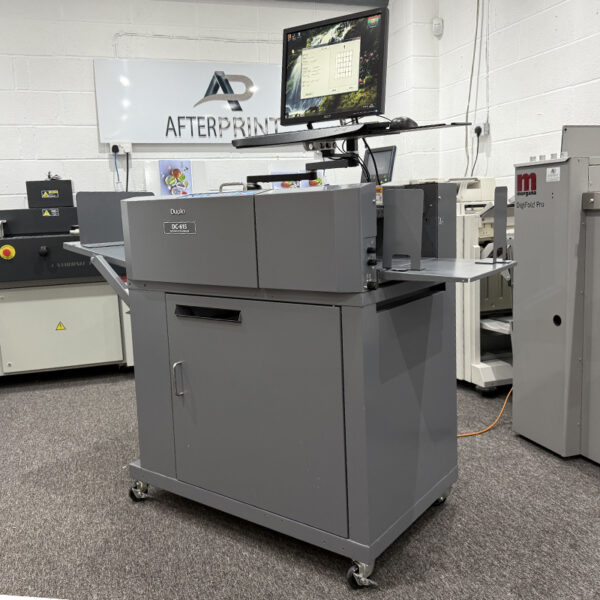

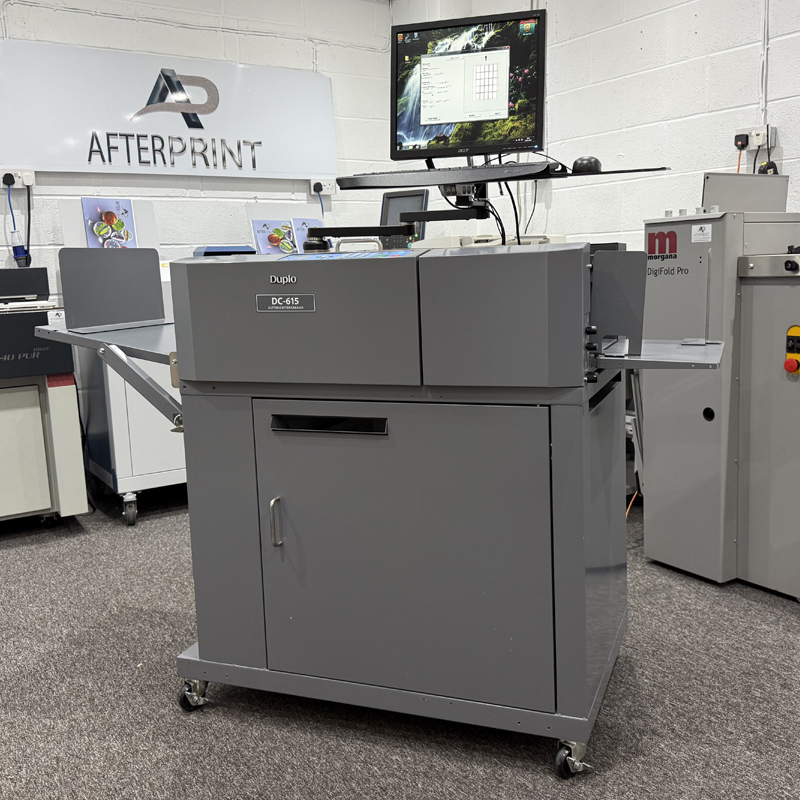

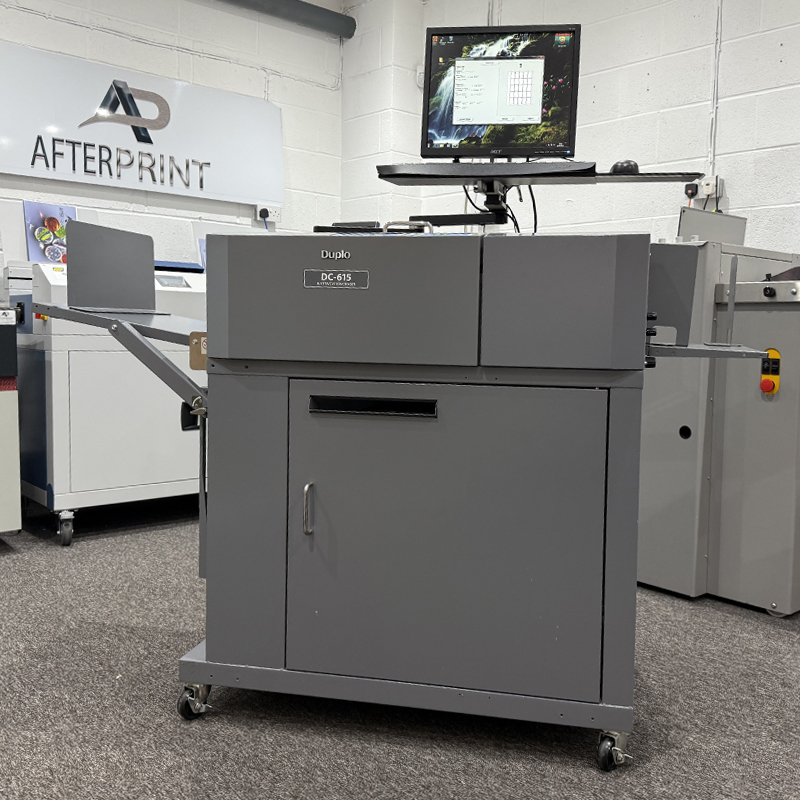

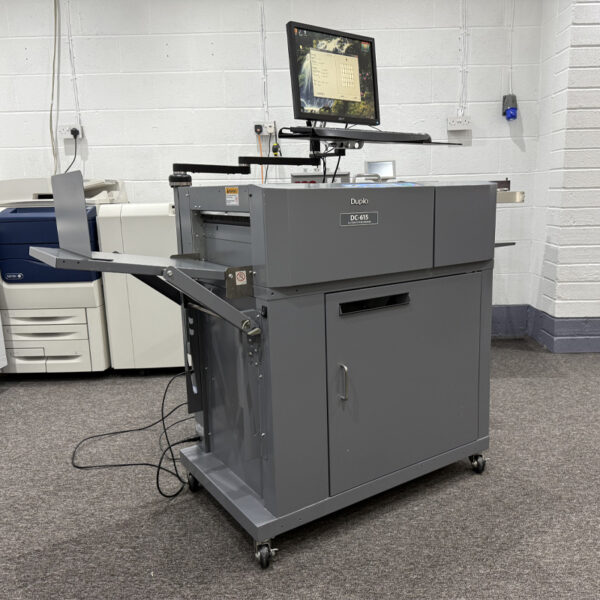

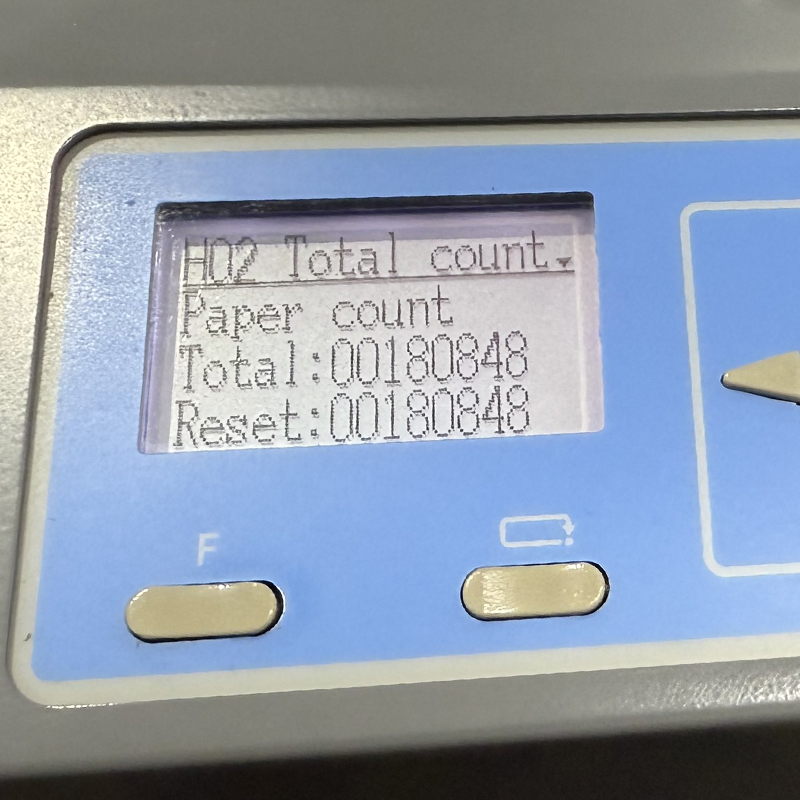

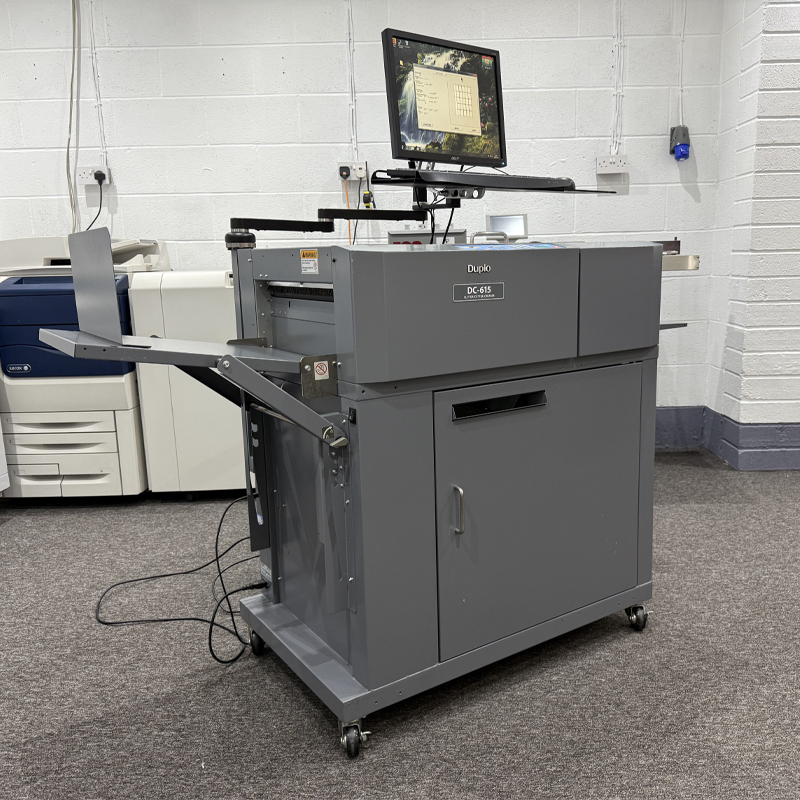

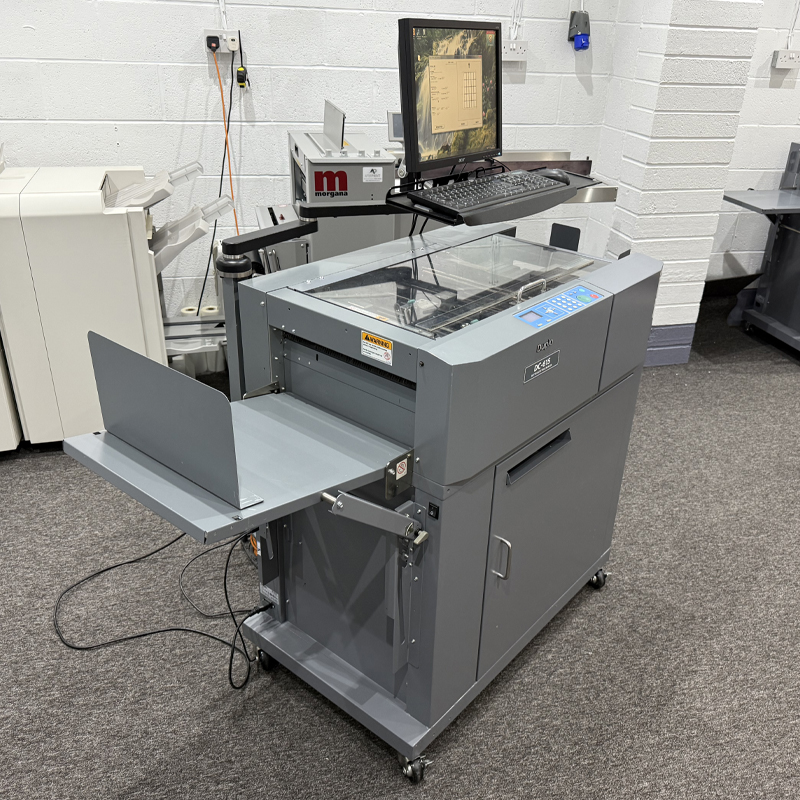

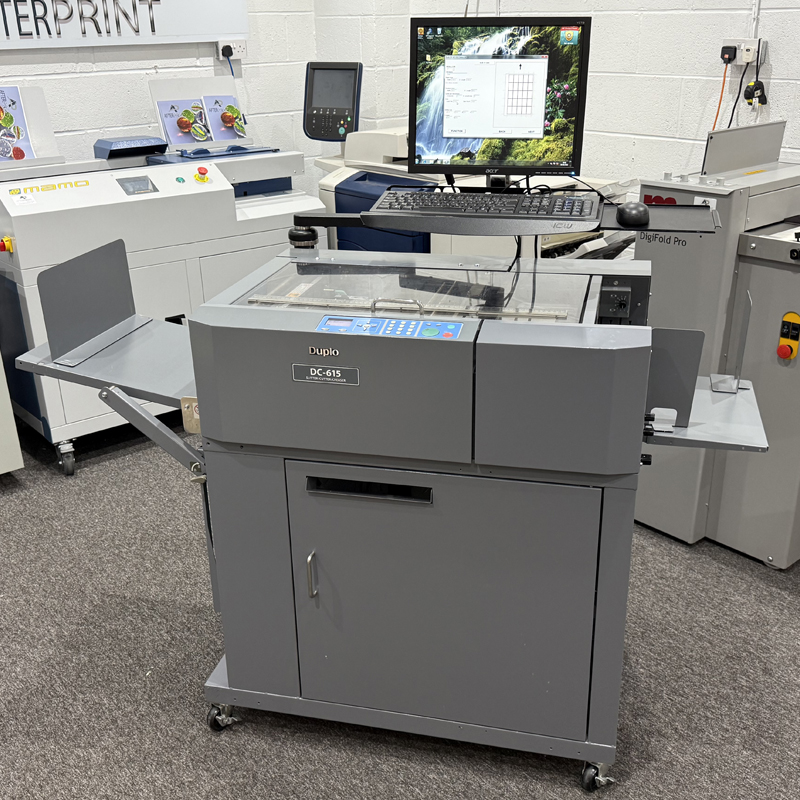

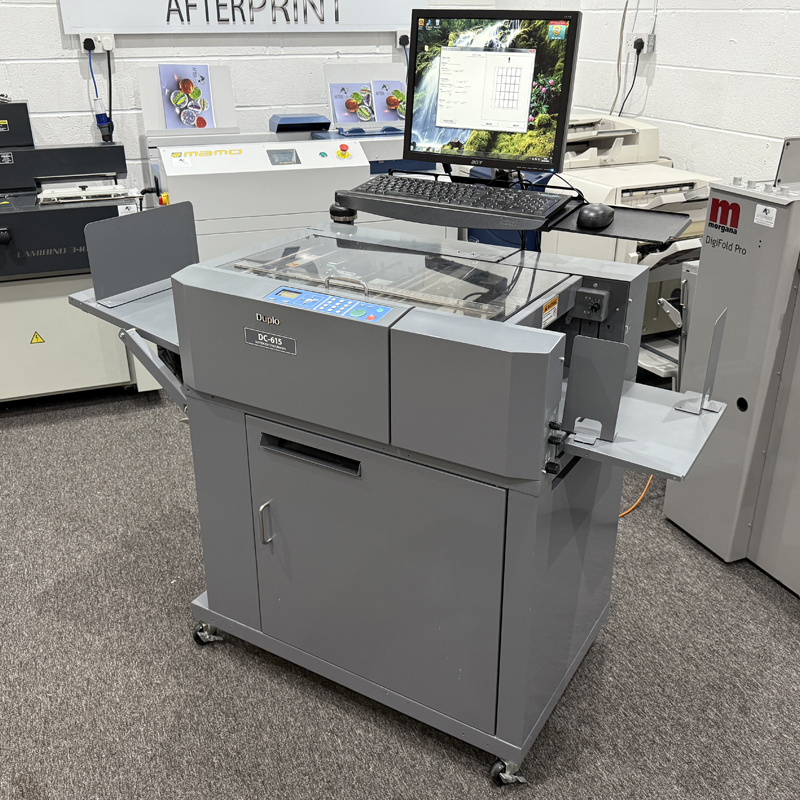

Afterprint are excited to offer this immaculate 2nd User Duplo DC615 PRO multi-function finisher. We removed this machine a large legal company as it was surplus to requirements and getting very little use. Due to the low usage the total count is just 180,084.

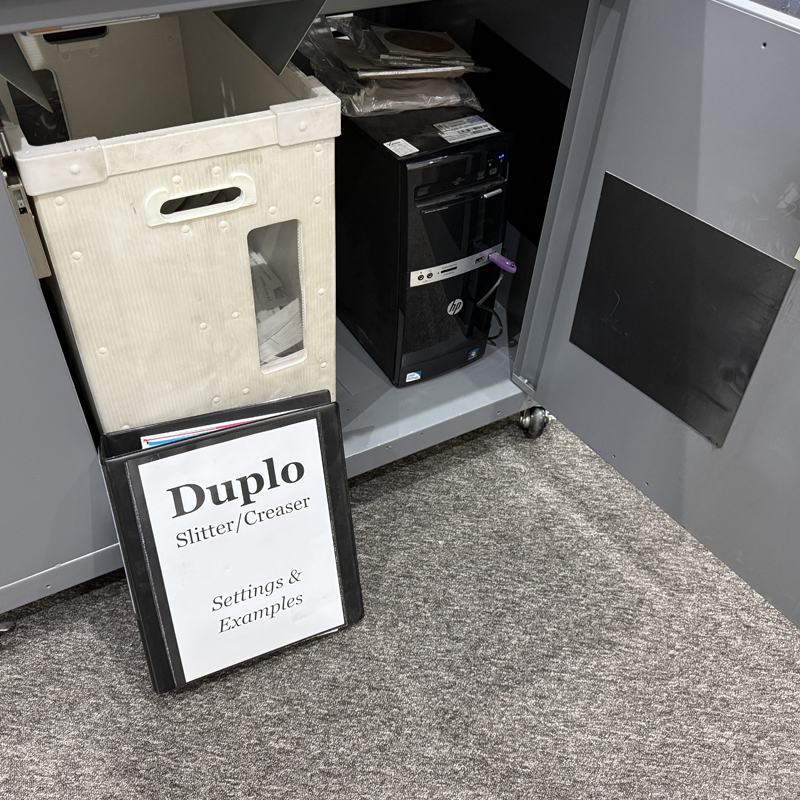

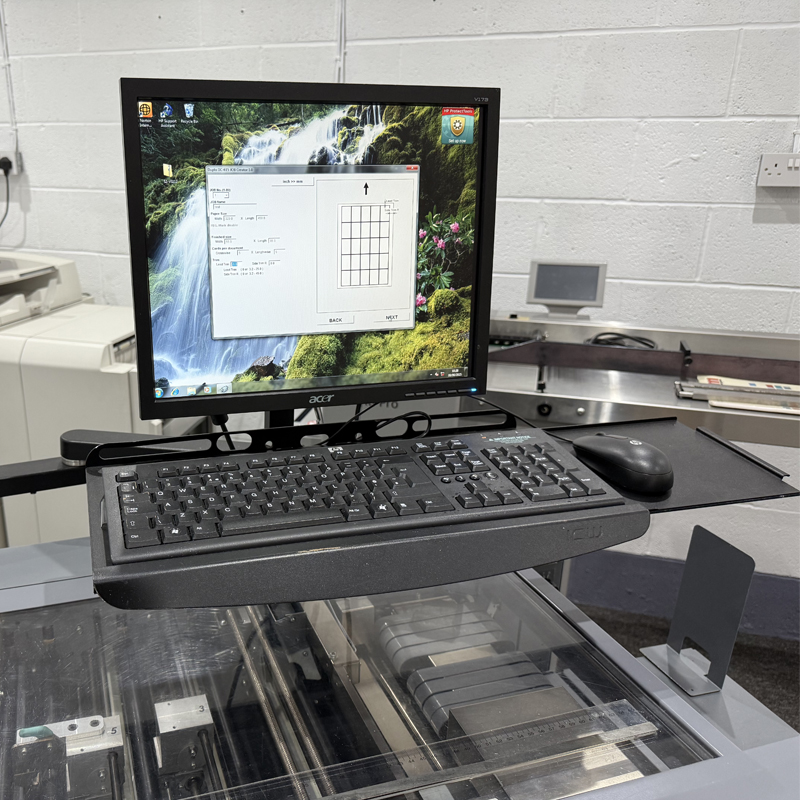

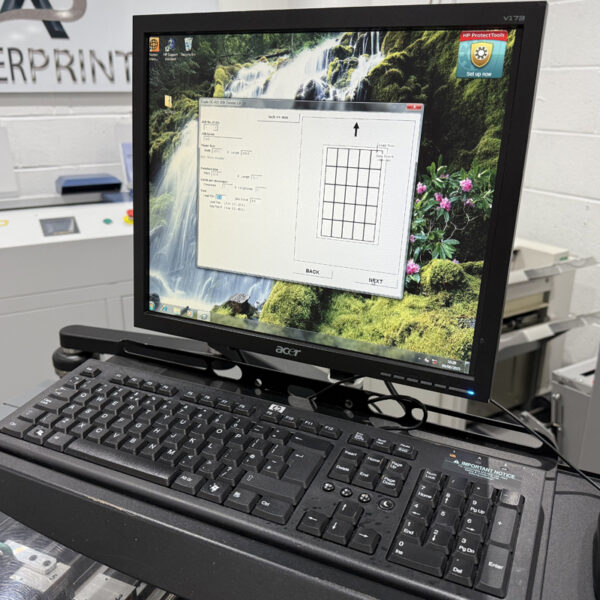

As standard, the DC615 Pro comes with the PC Controller and software. This is a rare opportunity to purchase an excellent machine at an incredible price. It is perfect for anybody looking to produce greeting cards, business cards, leaflets, flyers at the touch of a button.

Demonstration available in our showroom in Cheshire, 10 Minutes from Junction 9 of M62 or Junction 21a of M6.

Comes with our Alliance Service Package & a 3 Month Parts Warranty.

The Duplo DC615 PRO is the perfect option for the short-run on-demand digital printer. With the ability to process up to 6 slits, 15 cuts and 10 creases in a single pass, the DC-615 Pro delivers full-bleed applications at the press of a button. Process Up to 9 sheets per minute without white borders and toner cracking for a clean finish. Bring your print finishing in-house with the Duplo DC615 Pro!

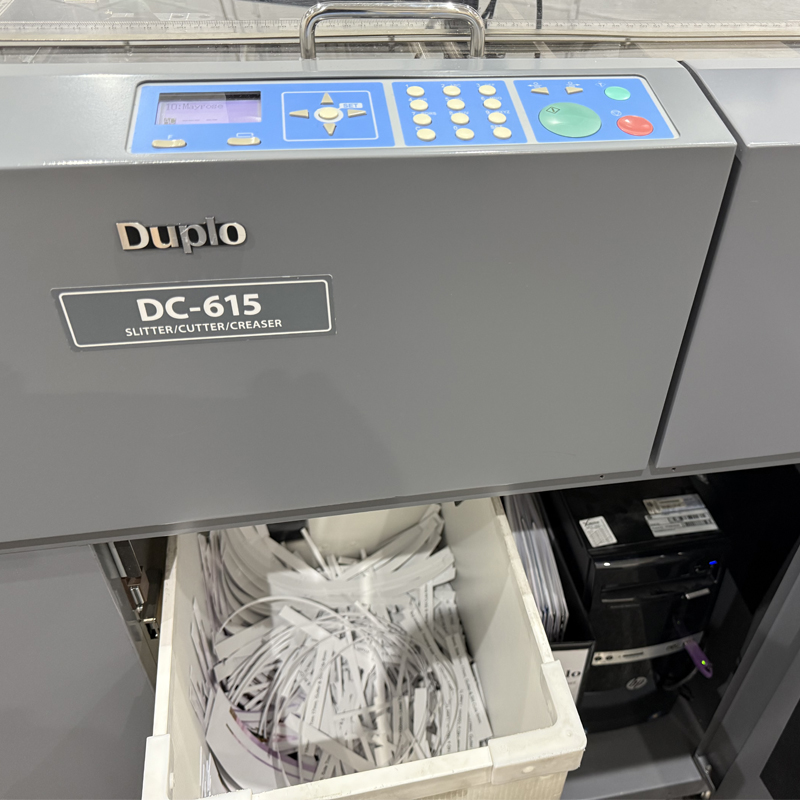

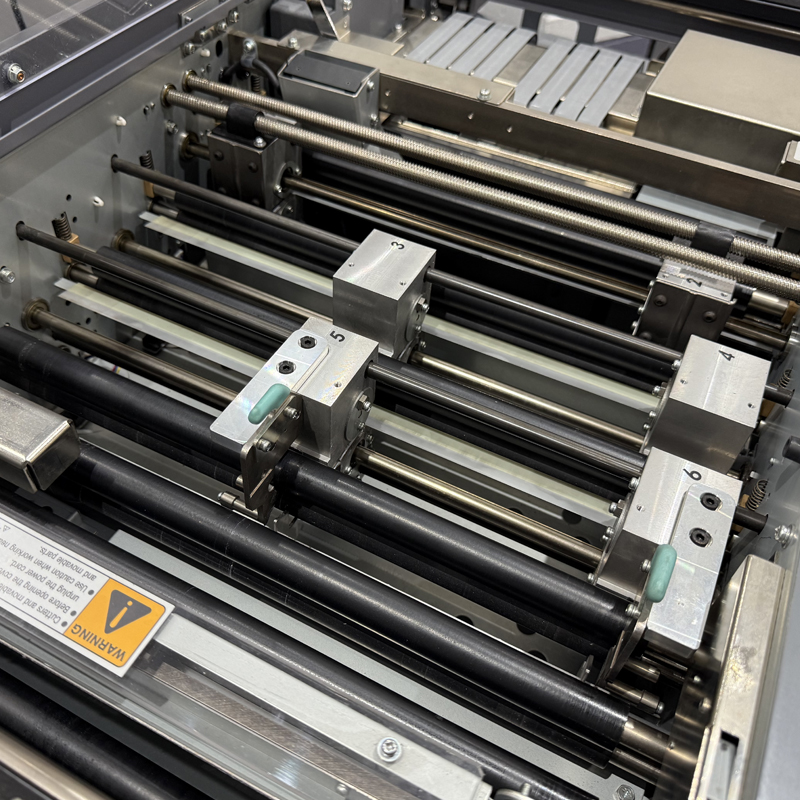

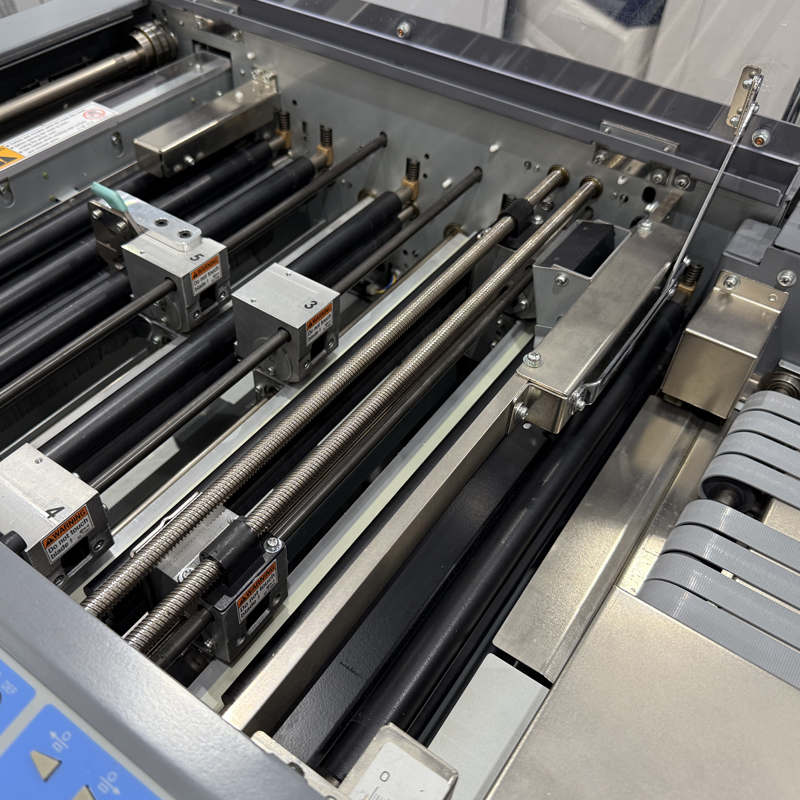

The versatility of the DC615 Pro makes it ideal for finishing full bleed applications in a single pass. Its rotary slitters, guillotine cutter and depth-adjustable creaser provides the versatility of multiple machines without the costly, manual setup and production times. Margins trimmed horizontally by the slitter and vertically by the cutter are automatically deposited into the large waste bin. Only the finished pieces are delivered to the exit tray.

The creaser utilises male and female matrix channels to create up to 10 creases across the sheet, enabling documents to be folded with ease. Creasing performance is optimised via the adjustable 3-step crease depth for various paper types and weights.

Automatic Barcode and Registration Mark Scanner

Using the built-in CCD to read a printed barcode, the DC615 Pro will recall the job from memory and automatically setup, reducing changeover time and errors.  The automation is complemented by a second feature of the CCD, to read a printed mark and compensate for any horizontal or vertical movement in the image. Ensuring precision finishing every time.

Why Duplo?

Duplo is a Japanese company which was established in 1951. Manufacturing one of the first duplicators in the print industry. In 1959, Duplo got its name “Duplo” coming from the word “Duplicator”. Duplo is now the leading supplier of print finishing equipment in the world having launched over 50 product ranges.

Today Duplo is dedicated to turning paper into great communication, pushing the boundaries of what’s possible with printed media. Duplo lead the world in the field of Multi Function Finishing Machines with the DC618, DC648 & DC746. Duplo were the first to bring this style of machine to market with the latest evolutions offering incredible performance and automation. Their booklet making ranges are just as impressive, starting with the entry level DBM150 through to the iSaddle systems, a solution for every requirement.

5 Reasons to Buy a Duplo DC615 Pro

  • Fully automated multi-function finishing solution
  • Slit, Cut & Crease in one operation
  • Replaces the guillotining process within a digital print environment
  • Proven reliability
  • Unattended operation even for variable data thanks to Barcode Reader

Typical Applications – Duplo DC615 Pro

  • Business Cards
  • Postcards
  • Greeting Cards
  • Invitations
  • Brochures
  • Menu’s
  • Direct Mail Pieces
  • Book Covers
  • Tent Cards/Calendars
  • Maximum Sheet Size (W x L) – 320 x 650mm
  • Minimum Sheet Size (W x L) – 210 x 210mm
  • Paper Type – Uncoated, Coated & Laminated
  • Input Paper Weight – 110 to 350gsm (paper curl within +/- 3mm)
  • Feeder Capacity – 100mm (exit tray 110mm)
  • Feeder Type – Top feed / 8 belt suction
  • Feeder Speed – A4 Leaflet (4 side trim & centre) @540 per hour, Business Cards (20 from an A3 sheet) @6,000 per hour, Greeting Cards (4 Up SRA3) @ 1,200 cards per hour
  • Number of Slits – Up to 6 per sheet
  • Guillotine Cuts – up to 15 per sheet
  • Number of Creases – Up to 10 creases per document across the paper direction

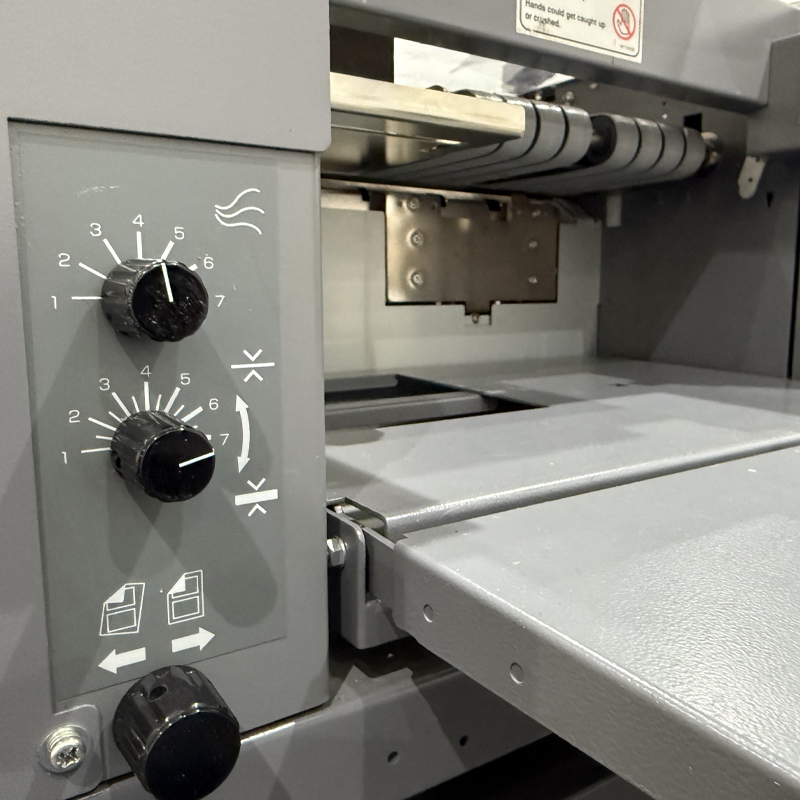

  • Crease Depth Adjustment – 3 Steps (from control panel)
  • Crease Tolerance – +/-0.3mm
  • Minimum Finished Size (W x L) – 48 x 85mm (85mm is in the feed direction)
  • Waste Bin Capacity – 60 Litres
  • Controller – PC Controller or LCD Display
  • Memory – Unlimited Job Storage via PC or up to 80 Jobs on the LCD Display
  • Error Detections – Paper Jam, Double Feed, Feeder Empty, Stacker Full
  • Standard Features – Air Knife, Automatic Gutter slitters, CCD Scanner, Ultrasonic Double Sheet Detection
  • Dimensions (W x D x H) – 1,600 x 620 x 1,050mm
  • Net Weight – 132kgs
  • Power Consumption – 100W, 0.7A
  • Power Requirement – 230V, 50Hz – Normal UK Plug

Introducing our unique Alliance Package. Our support does not cease once we make the sale or agree on a deal. At AfterPrint Ltd we are unique; our aim is to develop long-term business relationships that ensure you return to buy again when the time comes.

To ensure we are offering the most comprehensive package all of our Digital Finishing Solutions come complete with our unique Alliance Service Package. This package ensures your new purchase is taken care of correctly from day 1 and throughout your ownership of the product, to do this we include:

Delivery

  • A Pre-Delivery Inspection is conducted on every machine prior to shipment
  • A site survey will be conducted prior to shipping to ensure the delivery goes smoothly
  • Specialist instrument logistics companies with freight insurance are used for delivery
  • All deliveries are completed with Tail-Lift equipped vehicles & a minimum two-person team
  • Customers are offered suitable timed delivery slots with a 2 Hour delivery window

Installation

  • Our Installation Team will arrive at an agreed time to complete the installation (Normally on the same day as the delivery unless otherwise specified)
  • The installation team will complete a thorough check of all processes and operations of the machine against the PDI checklist
  • If the machine has been split into smaller components for delivery, the installation team will re-build the machine onsite
  • Standard installation is ground floor with direct access, splitting the machine and re-building will not incur extra charges
  • Installations required on upper floors will require lift access or extra charges will be incurred. All charges will be made clear and agreed upon before the installation date.

Training

  • Training will be conducted by our trained and certified Specialist Training Team
  • Training includes Best Working Practices for Safe Operation, General Operation, Job Programming, Crease Adjustments
  • All trained operatives will be issued with an official training certificate from our Certified Trainers (Certificates are created and posted within 7-10 days of training completion)
  • Training is completed in small groups of up to three people maximum
  • Training is normally completed on the same day as the installation

12 Month Manufacturer Warranty

  • Manufacturer Warranty on all parts from the date of installation
  • All Manufacturer warranties do not include labour, travel or identifying of parts (See Service Section)

12 Month Alliance Service Benefits

  • 20% Discount on All Parts (Discount will be taken from Standard UK Sales Price of each Part)
  • Direct Technical Team Access on the first phone call to discuss the fault (this will speed up any part requirements and offer a solution if possible that the operator can implement)
  • Guaranteed next day appointment for an engineer to be onsite (Technical team will allocate during the initial phone conversation and confirm)
  • Technical Team will identify if parts could be needed to resolve the issue, parts will be dispatched the same day so the engineer can meet parts on-site and perform the repair
  • Parts will only be requested for payment once the parts are fitted and the machine is operational (All parts will be paid on account)
  • 3 Month Warranty on all parts we fit (Manufacturer standard warranty is 30 days)
  • No Call-Out Charges for Emergency Calls
  • No Travel Charges for Emergency Calls
  • No Labour Charges (Includes all-time on-site under normal contract conditions)
  • 2 Preventative Maintenance visits per annum
  • Call out priority given to customers on an agreement (Contracts will take precedence over an Ad-Hoc call out)
  • Unlimited Emergency Call Outs – Within reason, Excludes intentional damage
  • Free Technical Advice on how to set up machinery or complete certain tasks
