Used Duplo System 4000 Twin Tower Booklet Maker System
Used Duplo System 4000 Twin Tower Booklet Maker Commercial Booklet Making Solution Handles digital and litho output Twin Collation Towers...
Products
Used/Pre-Owned Booklet Makers
Used Duplo System 2000 Booklet Maker System
- Fully refurbished with very low total count of just 155,000 booklets since new
- Comes with a 3 Month Parts & Labour Warranty
- Powerful Automated Booklet Making System
- Collate, Stitch & Fold in one pass
- Professional Quality System
- Integrates Duplo’s Powerful DSC 10/20 Vacuum Collator
- Handles a Wide Variety of Media from 50 to 300gsm
- Modular Design Grows and Adapts as your Business Demands Change
- Compact Foot Print – Under 2.5 Metres in Length
- Automatic Setup – User Friendly
- 5 Finishing Modes – Collate, Booklets, Side Staple, Corner Staple, Fold Only
- Produce up to 2,400 Booklets per Hour
- High Speed Collation up to 7,600 Sets per Hour
- Optional Stacker Unit available for Offset or Straight Stacking
- Ideal Solution for Digital Printers, Copy Shops
- Available for Demonstration
Read MoreLess
£7,995.00 ex VAT
£9,594.00 inc VAT
Description
Specifications
We have available this used/pre-owned Duplo System 2000 Booklet Maker. The machine has had very little use since new with only 155,000 booklets processed since new in 2012, as a result it is in an immaculate condition. The system consists of:
- Duplo DSC 10/20 Suction Collator (10 Station)
- Left Side Lift Up Hand Marry Unit
- Duplo DBM120 Booklet Maker
Duplo presents the System 2000, a compact fully automated booklet system with a production speed of 2,400 booklets per hour. The high speed DSC 10/20 Collator features an advanced feeding system capable of handling stocks in a variety of sizes and weights. Each bin is equipped with adjustable high-powered fans that contribute to its accurate and consistent feeding.
Despite its small size, the DSC 10/20 is a high production machine, its rapid 7,200 sets per hour speed rivals many larger collators on the market. The large intuitive colour touch screen control panel allows the operator to monitor progress of each job at all times. Simple error messages such as double and miss feed are clearly displayed and recorded to ensure that there is a true total count of each job. The DSC 10/20 collator can also connect to a variety of Duplo Booklet Makers making it very easy to upgrade the system should the business demands grow.
The Duplo DBM120 can be either hand fed or connected online to the DSC 10/20 Collator as you have here, creating a 2,400 booklet/hour finishing system. Lay flat stapling ensures a good quality bind and is capable of producing up to a 80 page booklet. The DBM-120 can be used as a stand-alone booklet maker and manually fed through the hand feeder mode or from the Lift Up Hand Marry Tray. This function is ideal for very short runs or pre-collated jobs such as those from a digital printer. The DBM-120 is capable of side stapling, corner stapling, folding and saddle stapling so just about any finishing requirement is possible with this versatile unit. Setup is completed automatically in seconds. Simply select the required size and the side guides adjust automatically. For smaller books the staple positions can also be moved in and out manually.
The small footprint of this booklet making system makes it easy to locate in places with limited space. Despite its small size the system can produce a range of applications such as reports, manuals, brochures and corner stapled handouts.
Comes with a 3 Month Parts & Labour Warranty.
Installation & Training can also be provided upon request – Extra charges may apply.
Available for demonstration.
Duplo DBM120 Specifications
- Maximum Sheet Size Booklets (W x L) – 320 x 450mm
- Minimum Sheet Size Booklets (W x L) – 148 x 200mm
- Maximum Sheet Size Side or Corner Stapling (W x L) – 320 x 231mm
- Minimum Sheet Size Side or Corner Stapling (W x L) – 200 x 180mm
- Paper Capacity – 20 Sheets Saddle or 25 Sheets Flat Stapling (Corner or Edge)
- Trimming Capacity – 4 to 40 sheets
- Trimming Waste Width – 1 to 25mm
- Max Processing Speed – Up to 2,600 Cycles per Hour
- Number of Stapling Heads – 2 Staple Heads
- Stitch Positions – Saddle, Fold Only, Corner & Side Stitch
- Error Detections – Double Feed, Miss Feed, Bin Empty, Paper Jam, Staple Near Empty, Cover Open, Stop Position Error, Motor Overload

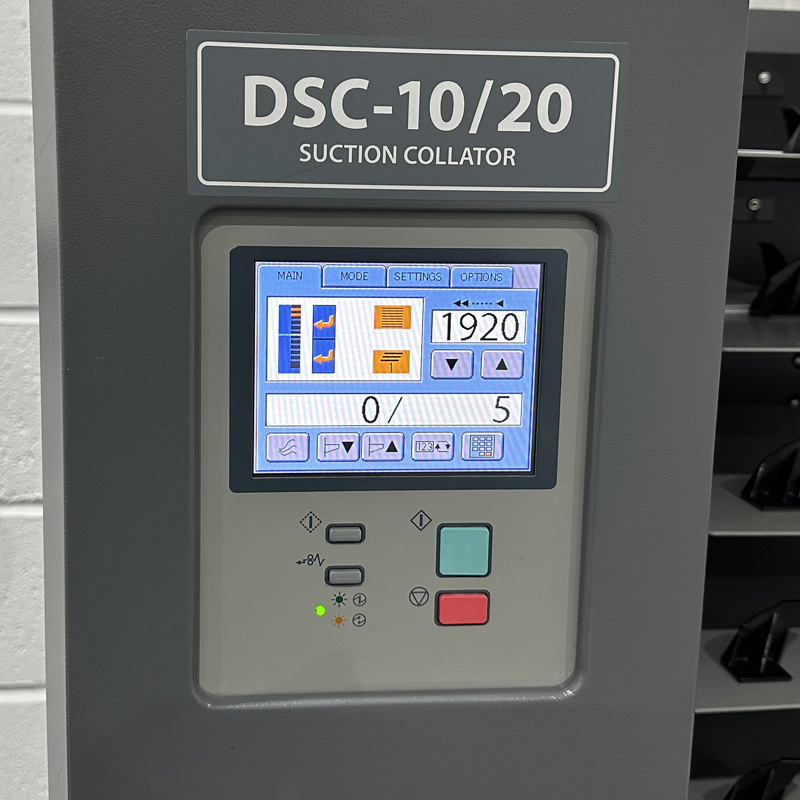

- Operation Panel – Touch Screens on DSC10/20 Collator & LCD with Rotary Dial on DBM120 Booklet Maker
- Noise Emission – 45db (A)
- Dimensions (W x D x H) – 1,300 x 700 x 550mm (Inc Delivery Unit)
- Net Weight – 120kgs
Duplo DC10/60 Pro Collator Tower Specifications
- Number of Bins – 10
- Bin Capacity – 35mm
- Maximum Sheet Size (W x L) – 320 x 450mm
- Minimum Sheet Size (W x L) – 139 x 210mm
- Paper Type – Uncoated, Coated & Laminated
- Input Paper Weight – 52 to 300gsm
- Feeder Type – Top feed / 8 belt suction with AMS
- Error Detections – Paper Jam, Double Feed, Feeder Empty, Stacker Full
- Operation Panel – Colour LCD Touch Screen Display
- Dimensions (W x D x H) – 745 x 780 x 1,708mm
- Net Weight – 293kgs
- Power Consumption – 160W, 0.6A
- Power Requirement – 230V, 50Hz – Normal UK Plug
Overall System Dimensions
- Duplo 5000 System (W x D x H) – 2,045 x 780 x 1,708mm
