Used Duplo System 5000 Booklet Maker System

  • Fully refurbished
  • Comes with a 3 Month Parts & Labour Warranty
  • Powerful Automated Booklet Making System
  • Stitching Heads Offer Higher Productivity and Lower Running Costs
  • Collate, Stitch, Fold & Trim in One Pass
  • Comes with ASM350 Square Back Module
  • Professional Quality System for Mid-High Volume Users
  • Integrates Duplo’s Powerful DC 10/60 Pro Vacuum Collator
  • Handles a Wide Variety of Media from 50 to 300gsm
  • Modular Design Grows and Adapts as your Business Demands Change
  • Compact Foot Print – Under 3.5 Metres in Length
  • Automatic Setup – User Friendly
  • 5 Finishing Modes – Collate, Booklets, Side Staple, Corner Staple, Fold Only
  • Produce up to 5,200 Booklets per Hour
  • High Speed Collation up to 24,000 Sets per Hour
  • Straight Stacking or Optional High Capacity Offset Stacking
  • Ideal Solution for Commercial Print, Digital Printers, Copy Shops
  • Available for Demonstration
Read MoreLess

£22,995.00 ex VAT

£27,594.00 inc VAT

£22,995.00 £27,594.00Add to basket

Description

Demonstration Video

Specifications

Ancillaries

We have available this used/pre-owned Duplo System 5000 Booklet Maker System. The machine has been fully refurbished including a complete full strip-down and rebuild with all worn or tired components replaced.

The Duplo System 5000 Booklet System delivers a great package for both offset and digital printers: high-quality booklets, simple and intelligent operation, high productivity, and the ability to produce high volumes of booklets quickly and efficiently. The System 5000 combines high-speed DC-10/60 Pro Collator Towers with the easy-to-use DBM-500 Booklet-maker and Trimmer, running at up to 5,200 booklets per hour.

Fully automatic and designed to cater for the needs of mid-high volume commercial printers and in-plants, the 5000 Booklet System is a productive and flexible booklet maker, capable of handling a wide range of paper types that can be variable within a single job. An impressive collate only speed of up to 20,000 A4 sets per hour completes the package.

Our 2nd user system also has the added benefit of the optional ASM350 Square back unit for the most professional looking finish.

The Duplo System 5000 Booklet Maker consists of:

  • DC10/60 Pro Collator Tower
  • Left Side Lift up Hand Marry Unit

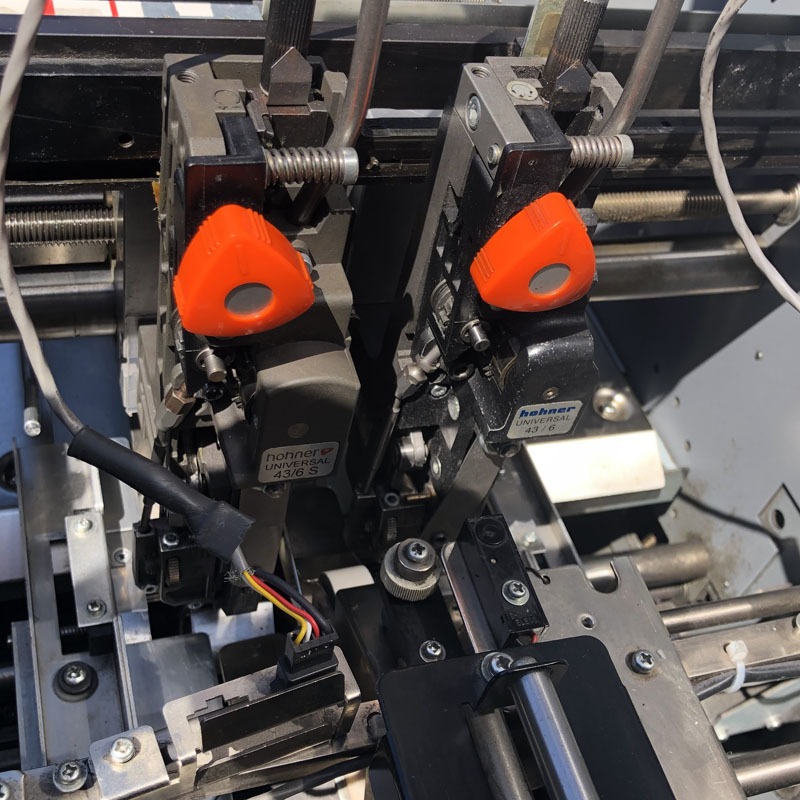

  • DBM500 Booklet Maker with Hohner Stitching Heads
  • DBM500 Fore Edge Trimmer
  • ASM350 Square back

Comes with a 3 Month Parts & Labour Warranty.

Installation & Training can also be provided upon request – Extra charges may apply.

Available for demonstration.

Duplo DBM500T Specifications

  • Maximum Sheet Size Booklets (W x L) – 356 x 508mm
  • Minimum Sheet Size Booklets (W x L) – 120 x 170mm (105mm width possible with Small Booklet Kit)
  • Maximum Sheet Size Side or Corner Stapling (W x L) – 320 x 231mm
  • Minimum Sheet Size Side or Corner Stapling (W x L) – 200 x 180mm
  • Paper Capacity – 30 Sheets + Cover x 1 (300gsm+)
  • Cover Type – Art Coated up to 300gsm
  • Stitching Thickness – Fine Quality up to 3.0mm regardless of paper weight / Art Coated up to 1.9mm regardless of paper weight
  • Trimming Capacity – 4 to 60 sheets
  • Trimming Waste Width – 1 to 25mm
  • Max Processing Speed – Up to 5,200 Cycles per Hour
  • Number of Stitching Heads – 2 Hohner Stitch Heads
  • Stitch Positions – Saddle, Fold Only, Corner & Side Stitch
  • Adjustments – Independent Stitch & Fold Position Adjustment, Independent Skew Adjustment for Stitch, Fold & Trim
  • Error Detections – Double Feed, Miss Feed, Bin Empty, Paper Jam, Staple Near Empty, Cover Open, Stop Position Error, Motor Overload, Fold Roller Gap Setting
  • Operation Panel – Touch Screens on Both DC10/60 Pro Collator & DBM500 Booklet Maker
  • Noise Emission – 75db (A)
  • Dimensions (W x D x H) – 1,900 x 700 x 1,094mm (Inc ASM350 Square Back)
  • Net Weight – 650kgs

Duplo DC10/60 Pro Collator Tower Specifications

  • Number of Bins – 10
  • Bin Capacity – 65mm
  • Maximum Sheet Size (W x L) – 356 x 508mm
  • Minimum Sheet Size (W x L) – 120 x 148mm
  • Paper Type – Uncoated, Coated & Laminated
  • Input Paper Weight – 52 to 300gsm
  • Feeder Type – Top feed / 8 belt suction with AMS
  • Error Detections – Paper Jam, Double Feed, Feeder Empty, Stacker Full
  • Operation Panel – LCD Touch Screen Display
  • Optional – Ultrasonic double sheet detector
  • Dimensions (W x D x H) – 630 x 750 x 1,972mm
  • Net Weight – 290kgs
  • Power Consumption – 160W, 0.6A
  • Power Requirement – 230V, 50Hz – Normal UK Plug

Overall System Dimensions

  • Duplo 5000 System (W x D x H) – 3,200 x 750 x 1,975mm
