Morgana Uchida AeroCut Classic Slitter, Cutter & Creaser
- Fully automated multi-function finishing solution
- Slit, Cut & Crease in a single pass
- Automates the complete finishing cycle in one pass
- Replaces the guillotining process within a digital print environment
- Unattended operation
- Top feed vacuum technology
- 60mm feeder capacity for uninterrupted production
- Colour LCD Control panel with 50 program memory + 263 Preset Templates
- Apply up to 6 slits, 6 creases and 30 guillotine cuts
- 5 Stage depth adjustment of crease depth
- Handles a Wide Variety of Media Types – Coated, Uncoated and Laminated materials
- Process up to 8 sheets per minute
- Very Economical to Run
- Call or Click Enquire to Request an Official Quotation
Read MoreLess
£7,995.00 ex VAT
£9,594.00 inc VAT
Description
Demonstration Video
Specifications
Alliance Package Included

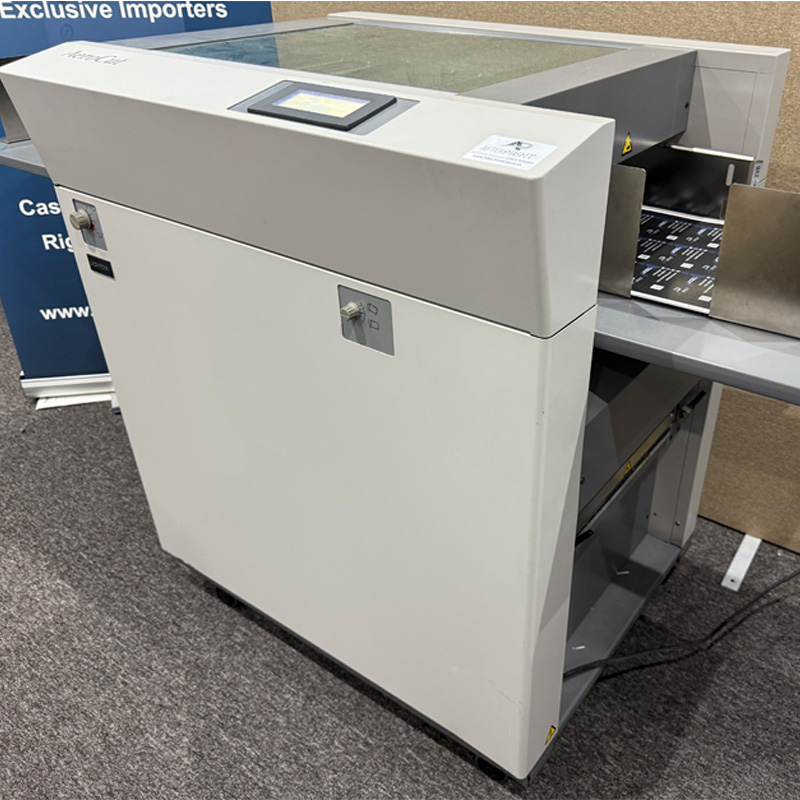

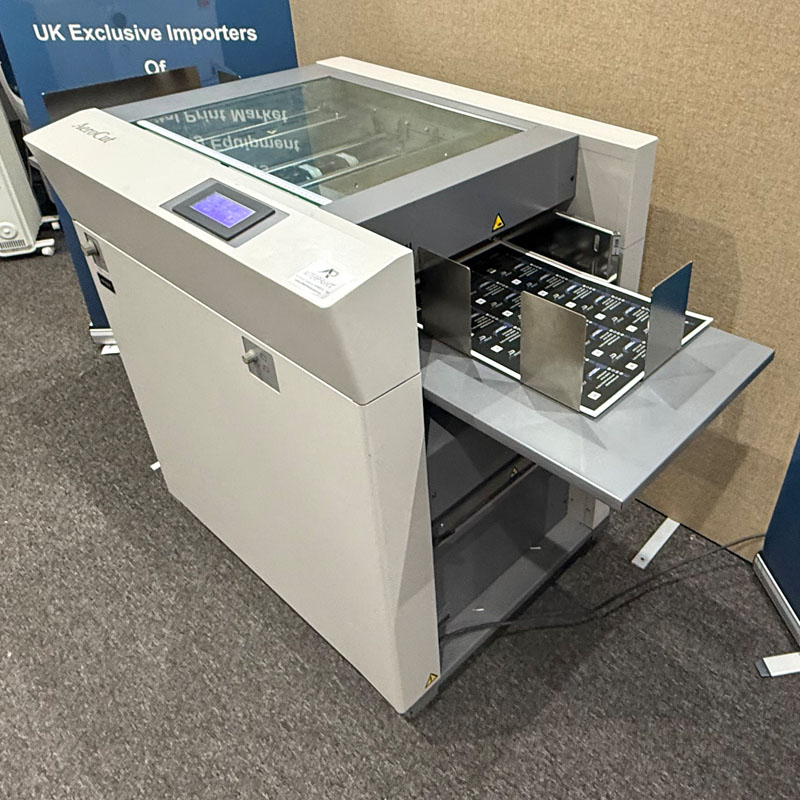

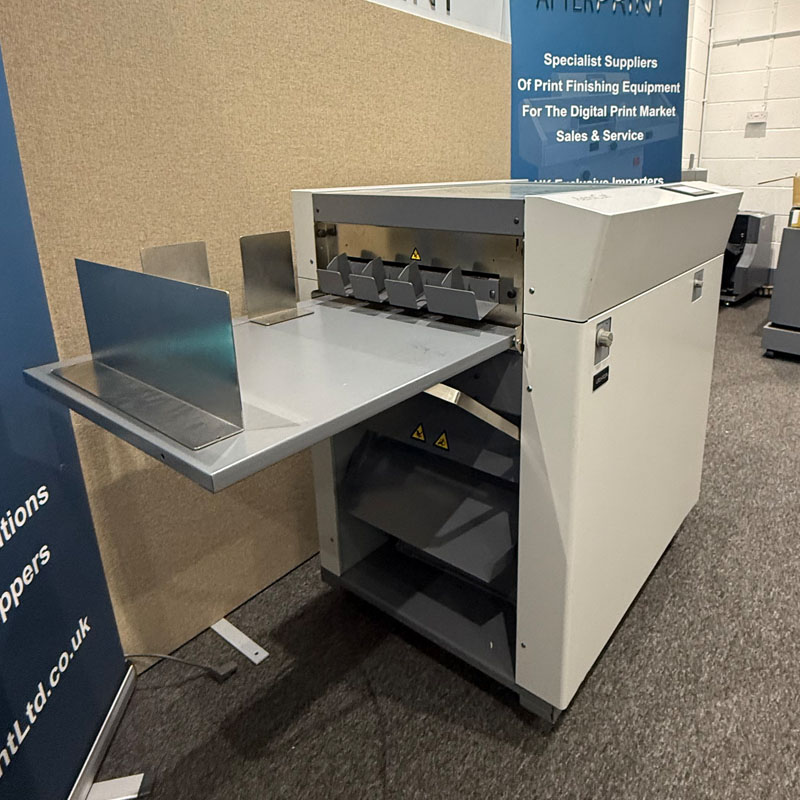

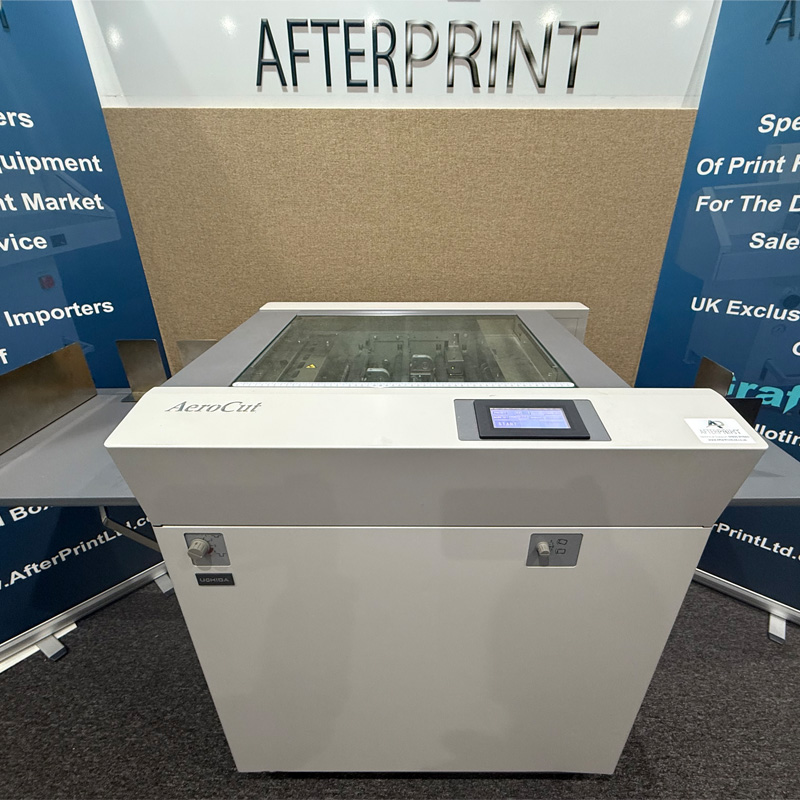

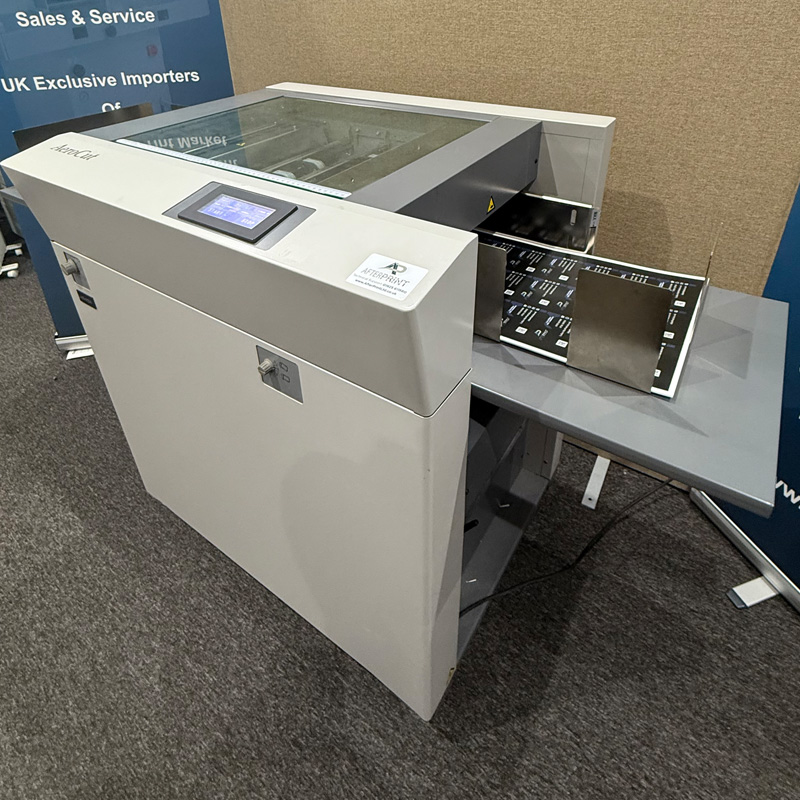

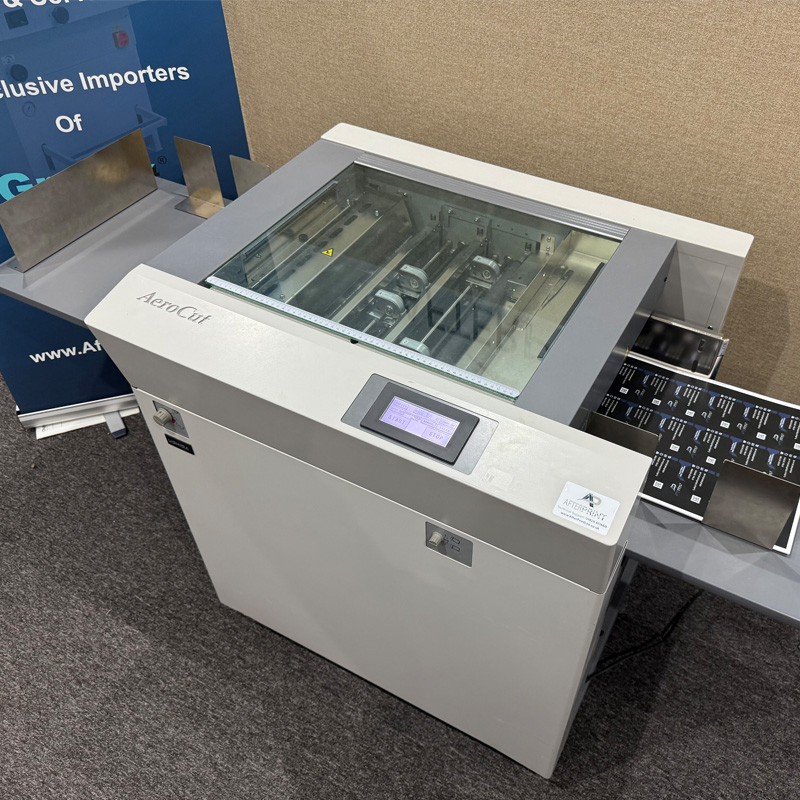

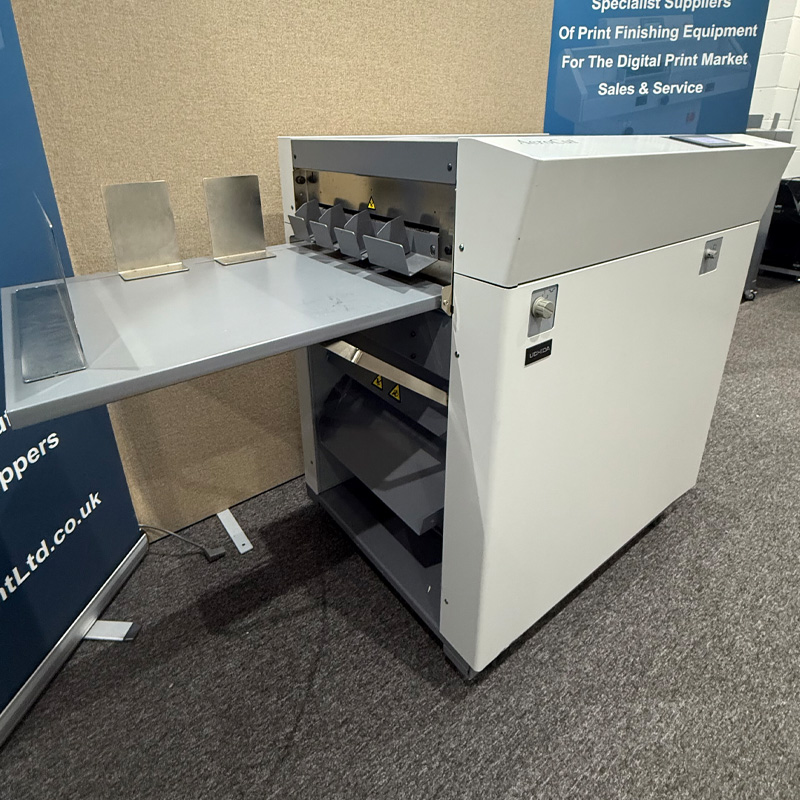

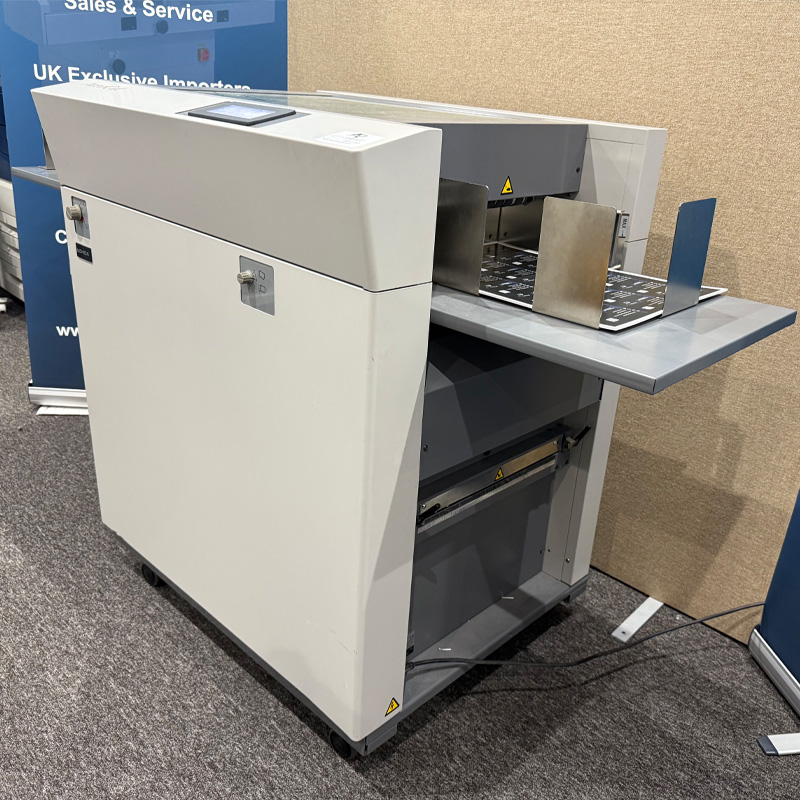

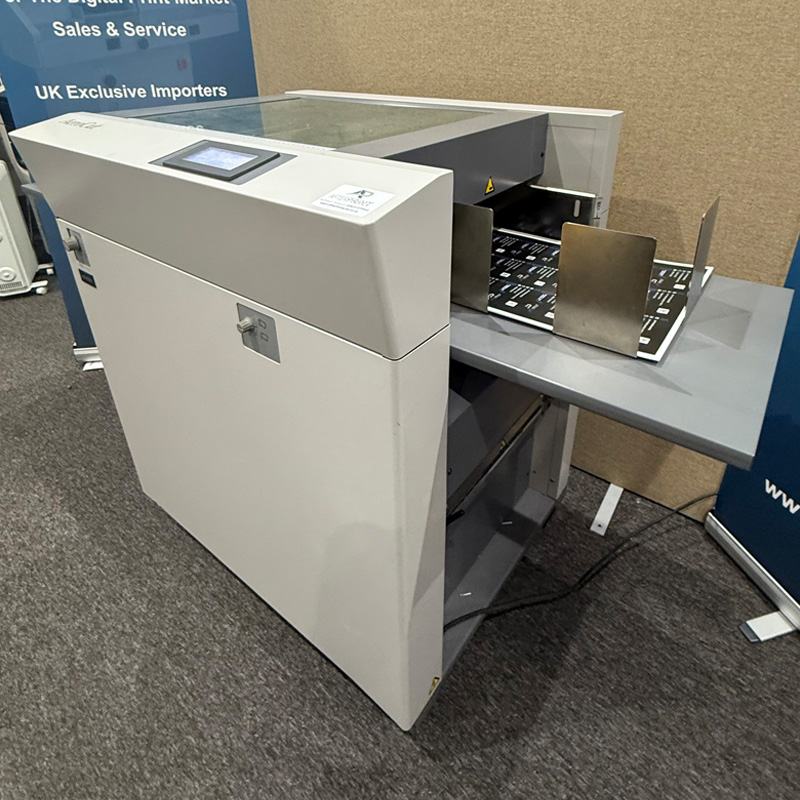

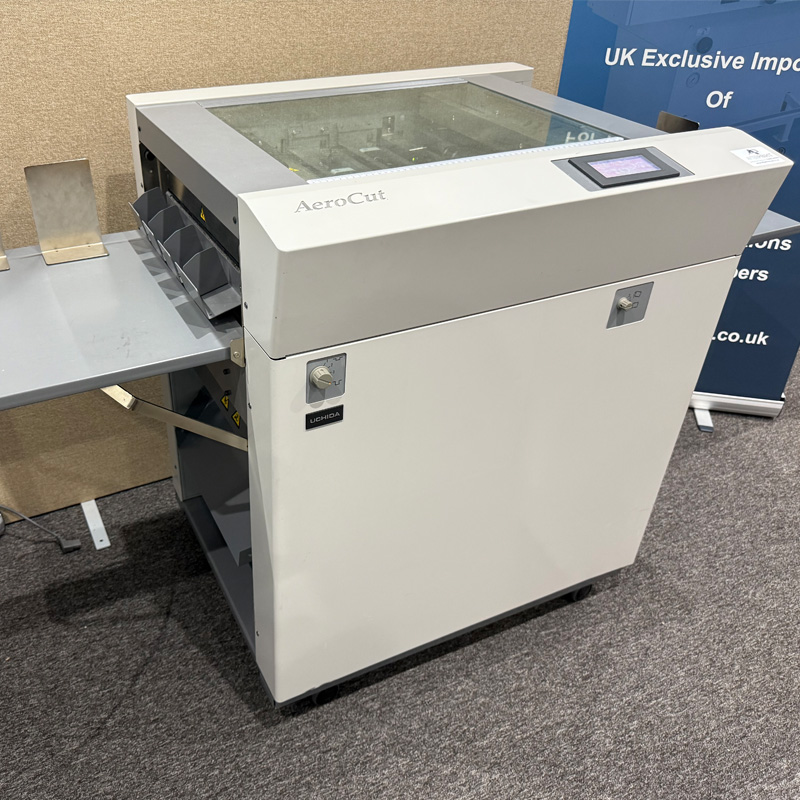

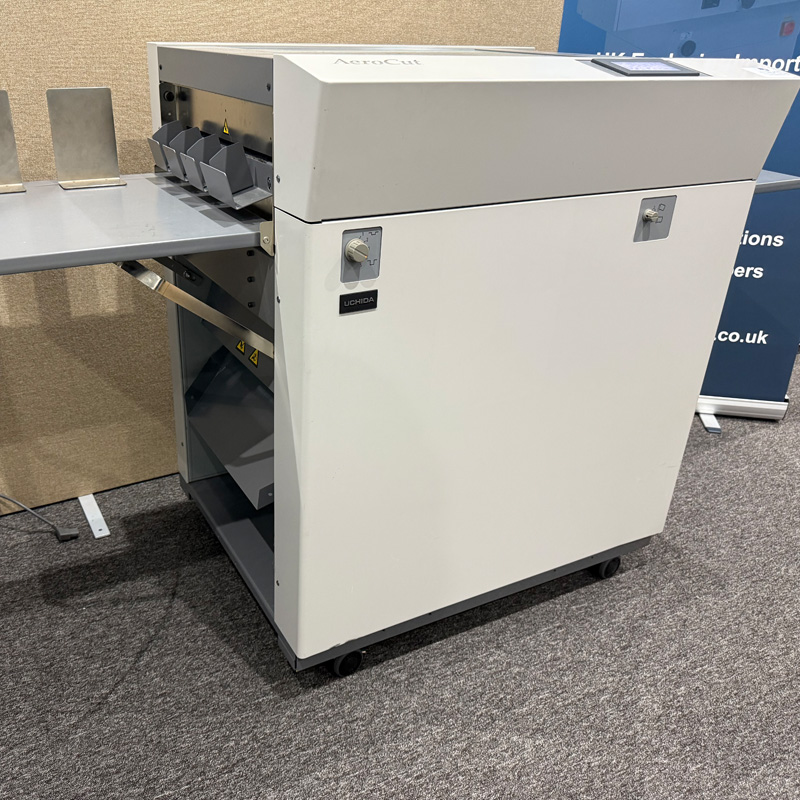

Afterprint are excited to offer this immaculate 2nd User Morgana/Uchida Aerocut Classic multi-function finisher.
The machine is in excellent overall condition with a low sheet count, all rollers, slitters & blades are in excellent condition. Comes complete with the optional Perforation Module enabling inline perforation.
This is a excellent opportunity to purchase a high quality Uchida multi-function finishing device at a budget friendly price. It is perfect for anybody looking to produce greeting cards, business cards, leaflets or flyers at the touch of a button.
Demonstration available in our showroom in Cheshire, 10 Minutes from Junction 9 of M62 or Junction 21a of M6.
Comes with our Alliance Service Package & a 3 Month Parts Warranty.
The Uchida AeroCut Classic is the perfect option for the short-run on-demand digital printer. Designed to be compact yet offer a simple operation even when completing complex finishing tasks. It offers a very high level of accuracy with image drift compensation and is capable of converting oversized sheets into multiple products.

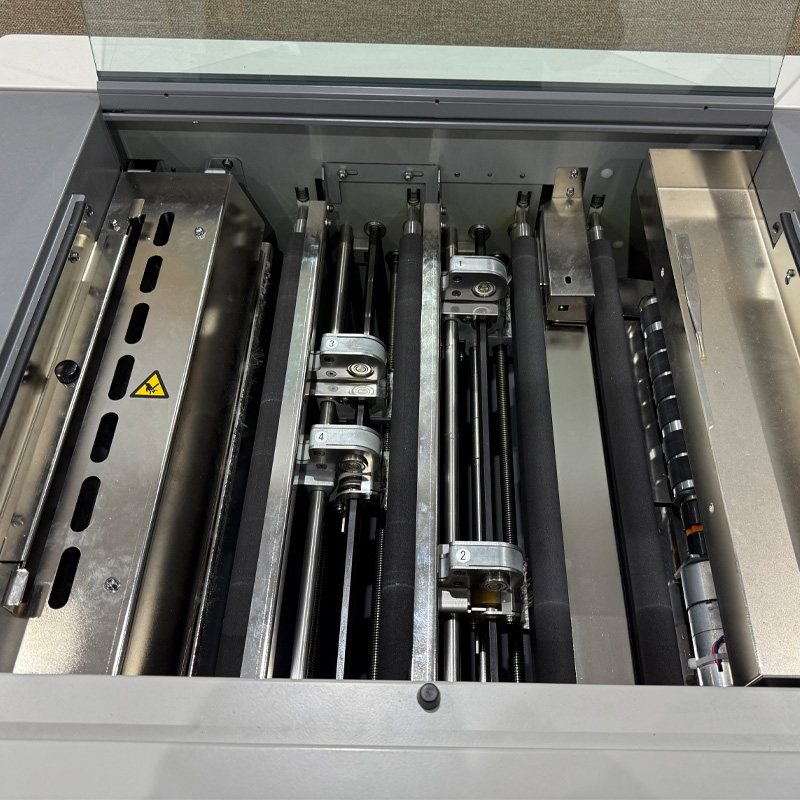

The versatility of the Uchida AeroCut makes it ideal for finishing full bleed applications in a single pass. Its rotary slitters, guillotine cutter and depth-adjustable creaser provides the versatility of multiple machines without the costly, manual setup and production times. The trimmed pieces, both horizontally by the slitters and vertically by the cutter, are deposited in the waste bin. Only the finished products are delivered onto the output tray.
The creaser utilises male and female matrix channels to create perfect creases across the sheet, enabling documents to be folded with ease. Creasing performance is optimised via the adjustable 5-step crease depth for various paper types and weights.
Pre-programmed with 263 templates, which are selected from the touchscreen. These templates are loaded for the most common sizes and typical type of work. 21Up business cards, 4 Up Greeting cards, 8 Up flyers and a host of other standard templates are available at the click of the screen. A further 50 jobs can be stored for unique work giving ultimate flexibility in production.
5 Reasons to Buy a Morgana/Uchida AeroCut Classic
- Fully automated multi-function finishing solution
- Slit, Cut & Crease in one operation
- Replaces the guillotining process within a digital print environment
- Proven reliability
- Unattended operation
Typical Applications – Morgana/Uchida AeroCut Classic
- Business Cards
- Postcards
- Greeting Cards
- Invitations
- Brochures
- Menu’s
- Direct Mail Pieces
- Book Covers
- Tent Cards/Calendars
- Maximum Sheet Size (W x L) – 365 x 520mm
- Minimum Sheet Size (W x L) – 210 x 210mm
- Paper Type – Uncoated, Coated & Laminated
- Input Paper Weight – 120 to 350gsm (paper curl within +/- 3mm)
- Feeder Capacity – 60mm (exit tray 70mm)

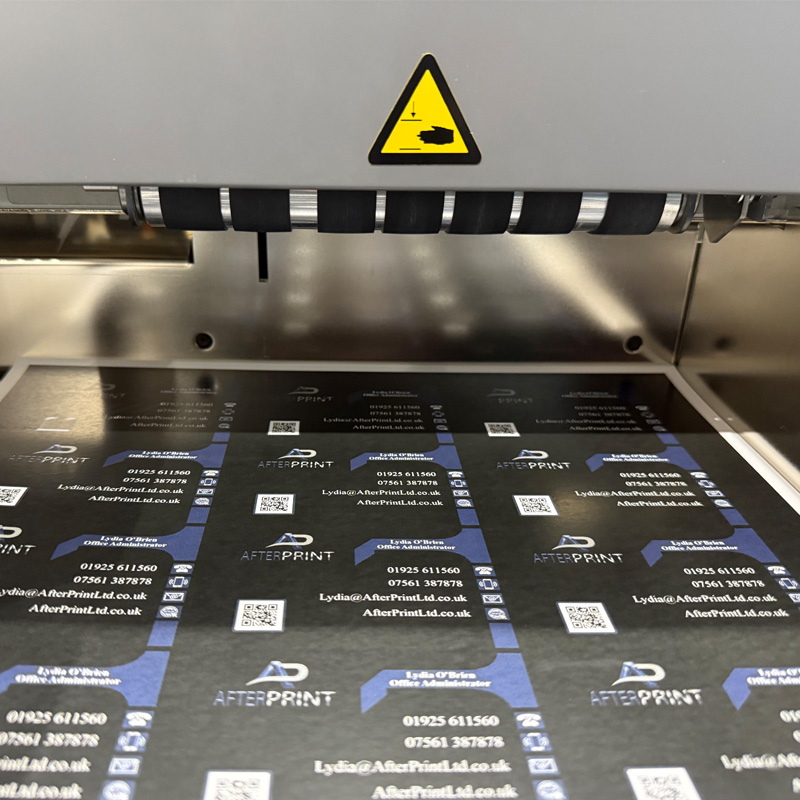

- Feeder Type – Top feed / 8 belt suction
- Feeder Speed – A4 Leaflet with Crease (2 cuts & 1 crease) @480 p/hr, 21Up Business Cards @7,560 p/hr, Greeting Cards (4 Up SRA3) @ 1,680 cards p/hr
- Number of Slits – Up to 6 per sheet
- Guillotine Cuts – up to 30 per sheet
- Number of Creases – Up to 6 creases per document across the paper direction
- Crease Depth Adjustment – 5 Steps (from adjustable dial)
- Crease Tolerance – +/-0.3mm
- Minimum Finished Size (W x L) – 55 x 50mm (50mm is in the feed direction)
- Waste Bin Capacity – 100 Litres
- Controller – Colour LCD Display
- Memory – Up to 50 Jobs on the LCD Display + 263 Preset Jobs
- Error Detections – Paper Jam, Double Feed, Feeder Empty, Stacker Full
- Standard Features – Air Knife, Automatic Gutter slitters, Ultrasonic Double Sheet Detection
- Dimensions (W x D x H) – 1,720 x 714 x 1,037mm
- Net Weight – 180kgs
- Power Consumption – 240W, 0.7A
- Power Requirement – 230V, 50Hz – Normal UK Plug
Introducing our unique Alliance Package. Our support does not cease once we make the sale or agree on a deal. At AfterPrint Ltd we are unique; our aim is to develop long-term business relationships that ensure you return to buy again when the time comes.
To ensure we are offering the most comprehensive package all of our Digital Finishing Solutions come complete with our unique Alliance Service Package. This package ensures your new purchase is taken care of correctly from day 1 and throughout your ownership of the product, to do this we include:
Delivery
- A Pre-Delivery Inspection is conducted on every machine prior to shipment
- A site survey will be conducted prior to shipping to ensure the delivery goes smoothly
- Specialist instrument logistics companies with freight insurance are used for delivery
- All deliveries are completed with Tail-Lift equipped vehicles & a minimum two-person team
- Customers are offered suitable timed delivery slots with a 2 Hour delivery window
Installation
- Our Installation Team will arrive at an agreed time to complete the installation (Normally on the same day as the delivery unless otherwise specified)
- The installation team will complete a thorough check of all processes and operations of the machine against the PDI checklist
- If the machine has been split into smaller components for delivery, the installation team will re-build the machine onsite
- Standard installation is ground floor with direct access, splitting the machine and re-building will not incur extra charges
- Installations required on upper floors will require lift access or extra charges will be incurred. All charges will be made clear and agreed upon before the installation date.
Training
- Training will be conducted by our trained and certified Specialist Training Team
- Training includes Best Working Practices for Safe Operation, General Operation, Job Programming, Crease Adjustments
- All trained operatives will be issued with an official training certificate from our Certified Trainers (Certificates are created and posted within 7-10 days of training completion)
- Training is completed in small groups of up to three people maximum
- Training is normally completed on the same day as the installation
12 Month Manufacturer Warranty
- Manufacturer Warranty on all parts from the date of installation
- All Manufacturer warranties do not include labour, travel or identifying of parts (See Service Section)
12 Month Alliance Service Benefits
- 20% Discount on All Parts (Discount will be taken from Standard UK Sales Price of each Part)
- Direct Technical Team Access on the first phone call to discuss the fault (this will speed up any part requirements and offer a solution if possible that the operator can implement)
- Guaranteed next day appointment for an engineer to be onsite (Technical team will allocate during the initial phone conversation and confirm)
- Technical Team will identify if parts could be needed to resolve the issue, parts will be dispatched the same day so the engineer can meet parts on-site and perform the repair
- Parts will only be requested for payment once the parts are fitted and the machine is operational (All parts will be paid on account)
- 3 Month Warranty on all parts we fit (Manufacturer standard warranty is 30 days)
- No Call-Out Charges for Emergency Calls
- No Travel Charges for Emergency Calls
- No Labour Charges (Includes all-time on-site under normal contract conditions)
- 2 Preventative Maintenance visits per annum
- Call out priority given to customers on an agreement (Contracts will take precedence over an Ad-Hoc call out)
- Unlimited Emergency Call Outs – Within reason, Excludes intentional damage
- Free Technical Advice on how to set up machinery or complete certain tasks
