Rigo Autobind EVA Perfect Binding Machine
- Fully-automated perfect binding solution
- Air-suction cover feeder with inline scoring
- Cover feed & spine/hinge crease applied automatically
- Automated book eject onto conveyor and integrated stacker unit
- Binds larger formats up to 420mm x 420mm
- Depth adjustable & tiltable milling (adjust from 0 to 3mm)
- Powerful EVA Perfect Binding Machine
- Very Simple to Use via Touch Screen Controller
- Offers high quality soft back book production or padding
- Produce up to 500 Books Per Hour
- Bind Documents up to 50mm Thick
- Single Person Operation & Automated Format Changes
- Zero Clean Down or Operator Maintenance
- Separate glue tanks for spine and side glue
- Ribbed side glue application rollers apply a perfect 7mm bead (Switchable when not needed)
- Professional Milling and Notching Station

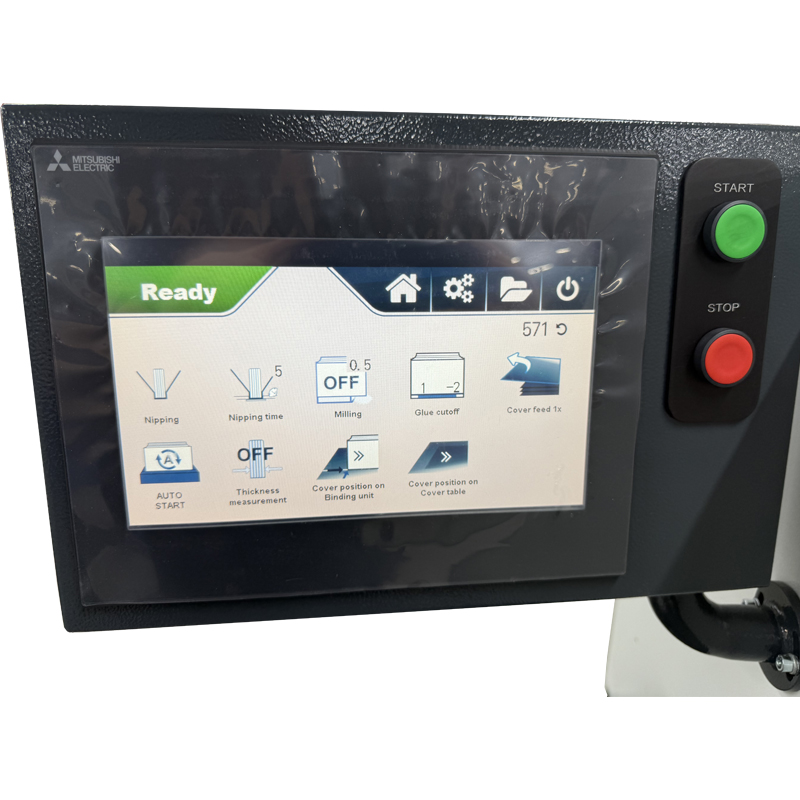

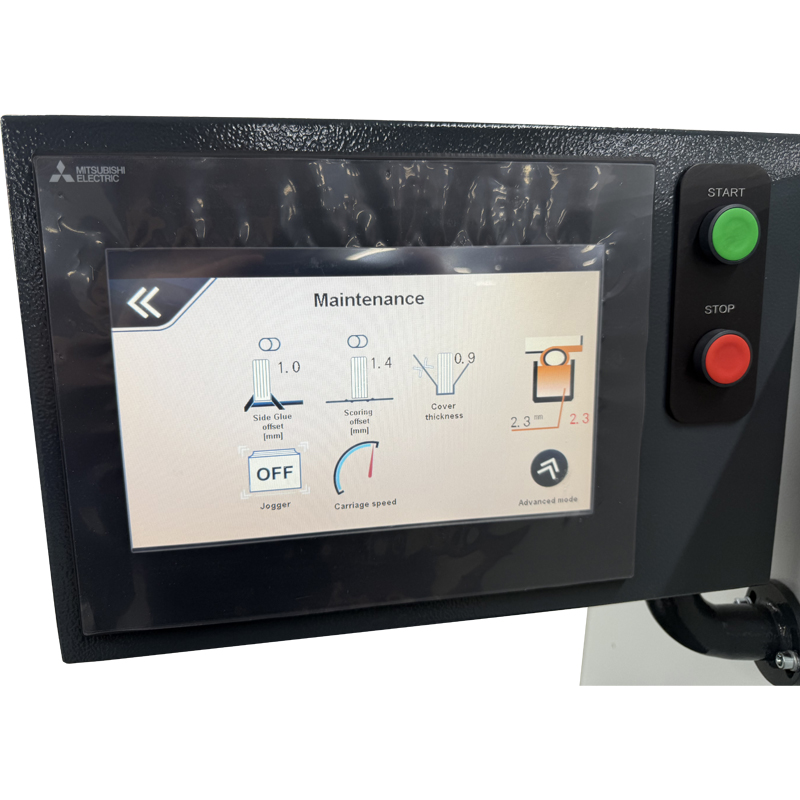

- Touch Screen Control System with Self Diagnostics
- Compatible with Planamelt R Digital Adhesive
- Bind Lithographic and Digital Prints
- Call or Click Enquire to Request an Official Quotation
Read MoreLess
Description
Demonstration Video
Specifications
Technical Overview Video
Alliance Package Included
Ancillaries

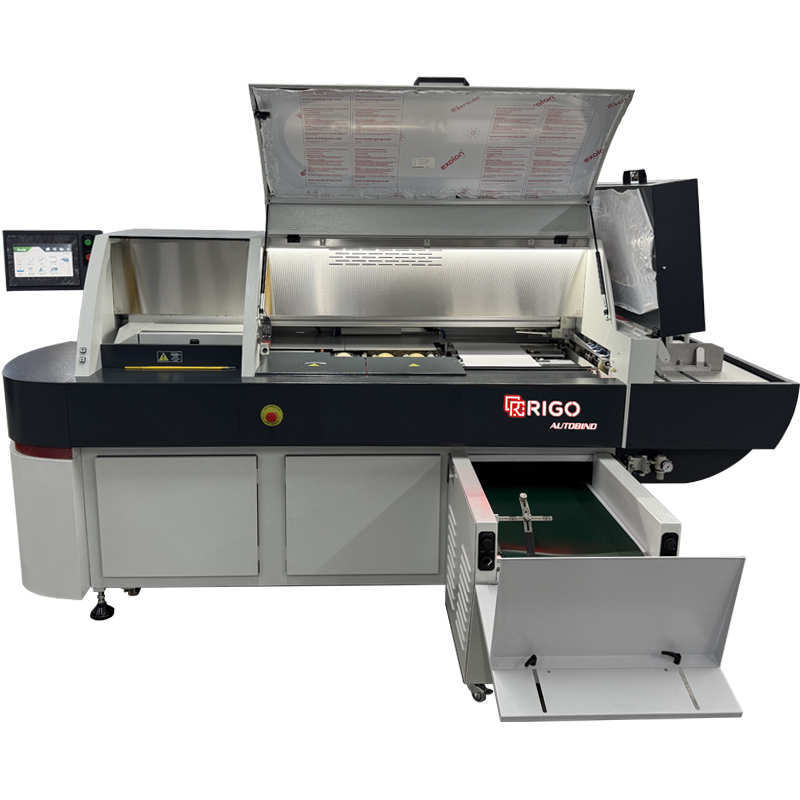

The Rigo Autobind EVA single-clamp perfect binder offers high-quality production perfect binding with fully autonomous operation. Designed to help commercial and digital printers to bring in-house, highly profitable, medium to higher volumes of on-demand perfect binding. The unique combination of high productivity and pricing make the Autobind a perfect choice for any commercial book binder or printer. Moreover, the Autobind’s ability to handle sewn sections, single sheets and folded sections further extend its capabilities in a professional environment.

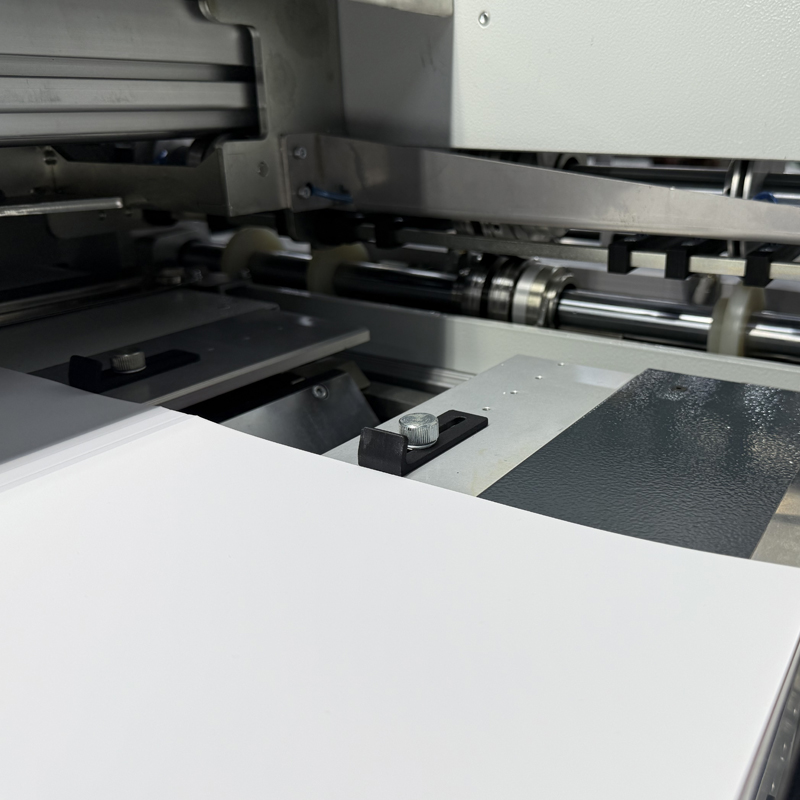

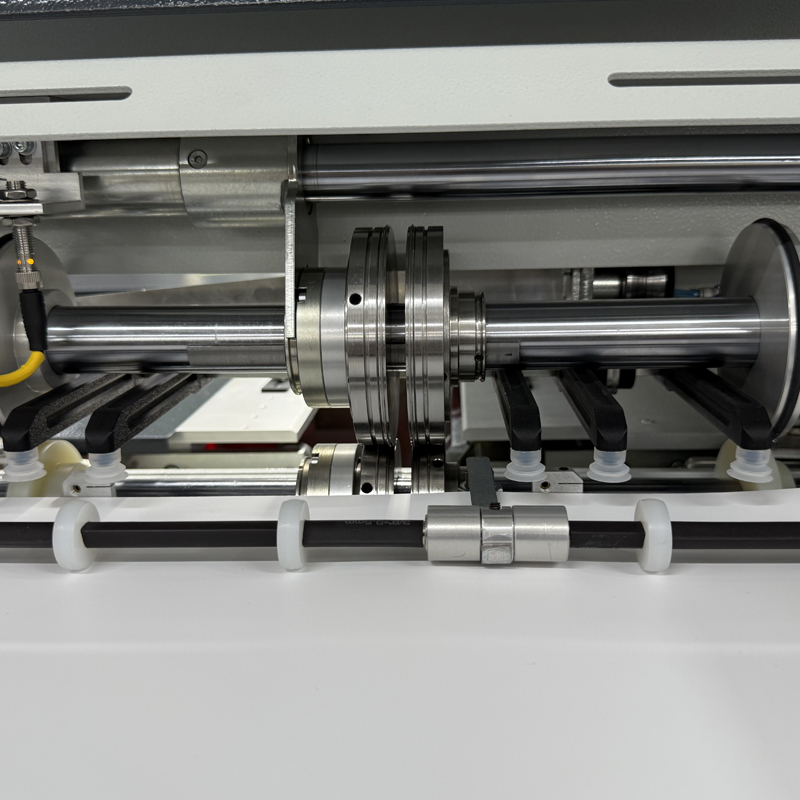

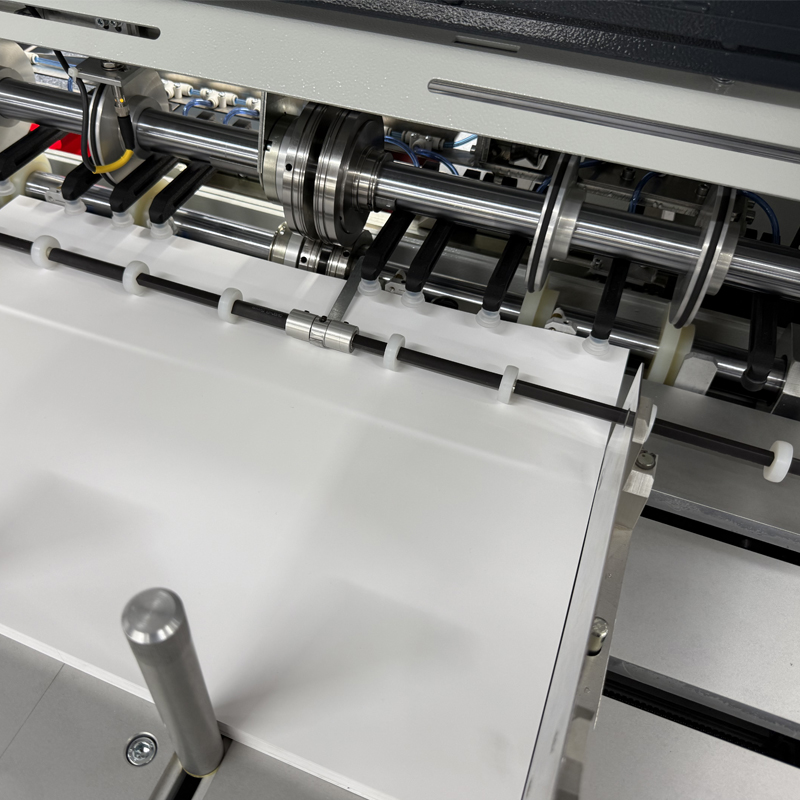

The Autobind EVA also features automated setup based on the block thickness. The side gluing rollers, spine/hinge crease tools and cover positioning are all changed automatically. Whilst the milling depth, glue length and book positioning are all changed via the intuitive touchscreen controller. An automatic air-suction cover feeder with integrated crease tools reliably feeds even the toughest of materials to the binding station with completed books neatly delivered to the output stacker delivery unit. True single operator design with job to job changeovers completed in seconds without the need for any tools. Combine with the latest Planamelt R digital adhesive the Autobind EVA is the perfect binder of choice for today’s digital printer.

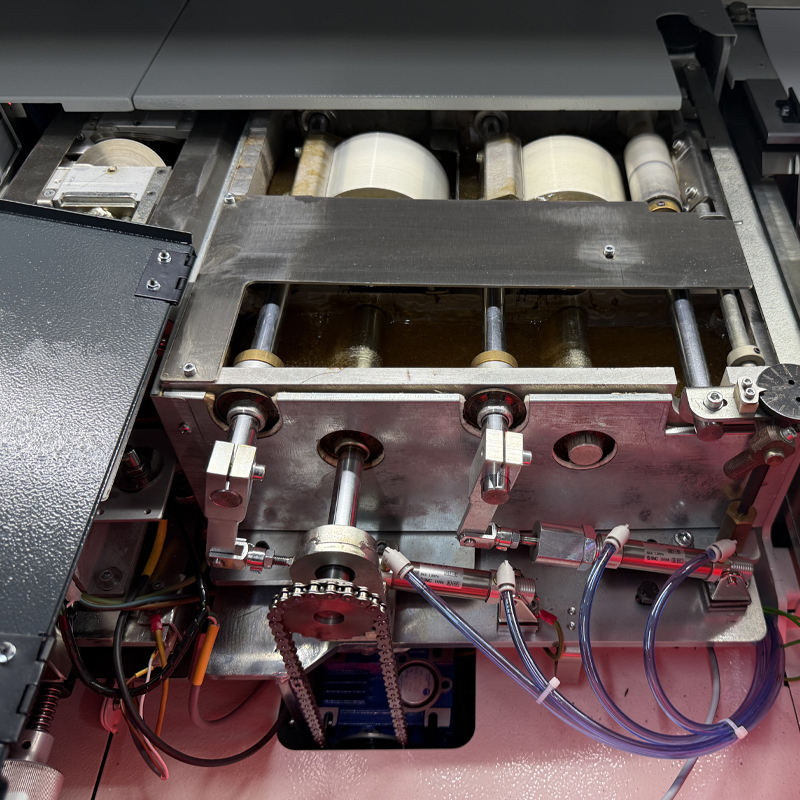

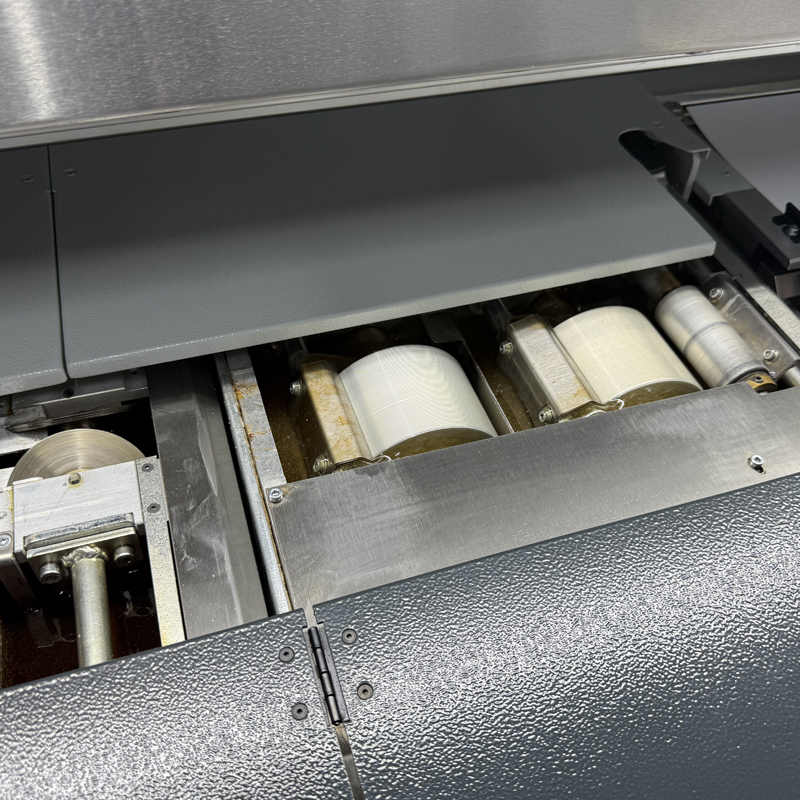

The Autobind EVA is a powerful binder, capable of up to 500 cycles per hour. Larger spine lengths up to 420mm and thicker spines up to 50mm are both standard features. Separate spine and side glue tanks provide greater flexibility in glue application. Whilst a 3 roller application system guarantees the perfect bead of spine glue for optimum performance. The automatically adjustable ribbed side glue application rollers apply a perfect 7mm bead of glue along the spine edge. Whilst the powerful nipping station merges the spine with the cover to form a perfect finish.
Perfectly suited to medium & high volumes of on-demand applications in A3, A4 or A5 finished sizes of softback books.
Why Rigo?
Rigo, based in Hungary, was established in 1990. Headquartered in Budapest with two separate production sites owned by the company. The production is carried out in modern factories with one housing the main assembly whilst the other houses the CNC Laser Cutters and CNC Edge Bending Machinery.
A continuous growth in sales is driven by their dedication to continuous market orientated R&D innovation. In tandem with the high quality of their manufactured products. A computerised production management system was first introduced in 1995. Since then the systems have been continually developed and reached ISO9001 certification in 1998. All the machines and equipment produced by RIGO are CE Certified.
5 Reasons to Buy a Rigo Autobind EVA
- Fully-automated operation with Air Suction Cover Feeder & Inline Creasing
- Automated job changeover according to block thickness
- Binds up to 420 books per hour with a single operator
- Adjustable glue application length and book block positioning (in relation to the cover)
- Binds larger formats up to 420mm lengths and up to 50mm in thickness
Typical Applications – Rigo Autobind EVA
- On-demand perfect binding
- Perfect binding digital prints
- Binding of difficult papers or media
- Full colour brochures
- Soft back books
- Instruction manuals
- Training manuals
- Maximum Book Size – 420mm (spine length) x 420mm
- Minimum Book Size – 80mm (spine length) x 80mm
- Maximum Cover Size – 420mm (spine length) x 775mm
- Minimum Cover Size – 80 (spine length) x 260mm
- Binding Thickness – 1.0mm to 50mm
- Cover Thickness – 80 to 300gsm
- Glue Warm Up Time – 20-25 Minutes (Depending on ambient temperature)
- Glue Warm Up Time from Standby Mode – 5 Minutes
- Glue Temperature Range – 100 to 200 Degrees Celsius
- Volume of Glue Tank – 3kgs
- Cycle Speed – 500 Cycles Per Hour (This automatically adjusts based on job requirements)
- Adjustment of binding time range – 1 to 99 seconds
- Production Speed – Up to 420 Books Per Hour
- Milling & Notching – Electronically Controlled Depth Adjustable High Speed Milling Unit (0-3mm) with Extraction
- Scoring – Automated Setup Based on Book Block Thickness – Also Depth Adjustable Dependant on Media

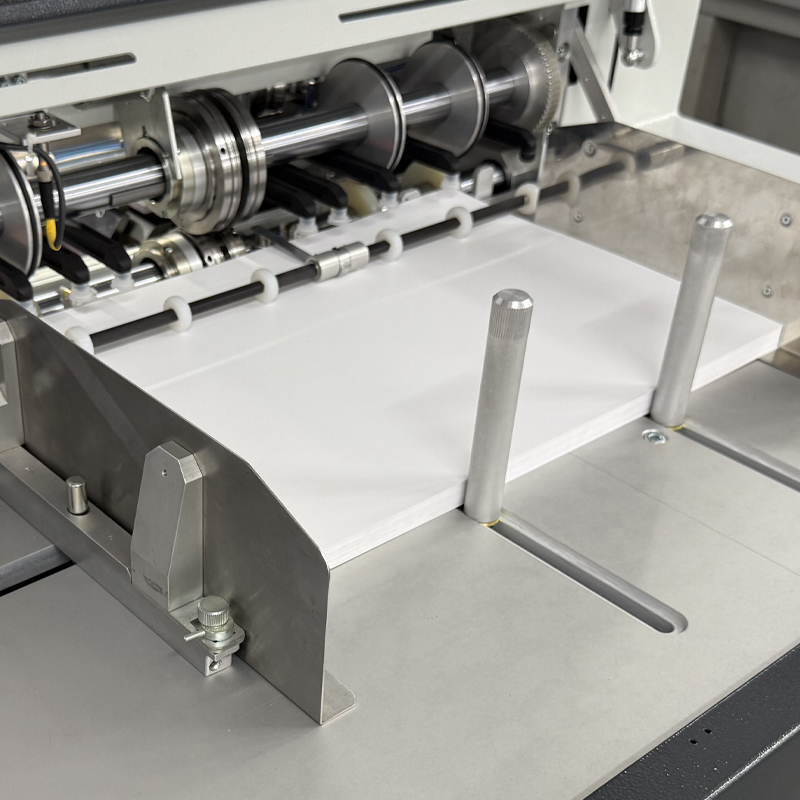

- Cover Feeder – Automated with Adjustable Air Suction Feed and Sheet Separation
- Operation Modes – Soft Cover (Perfect Bind), Padding

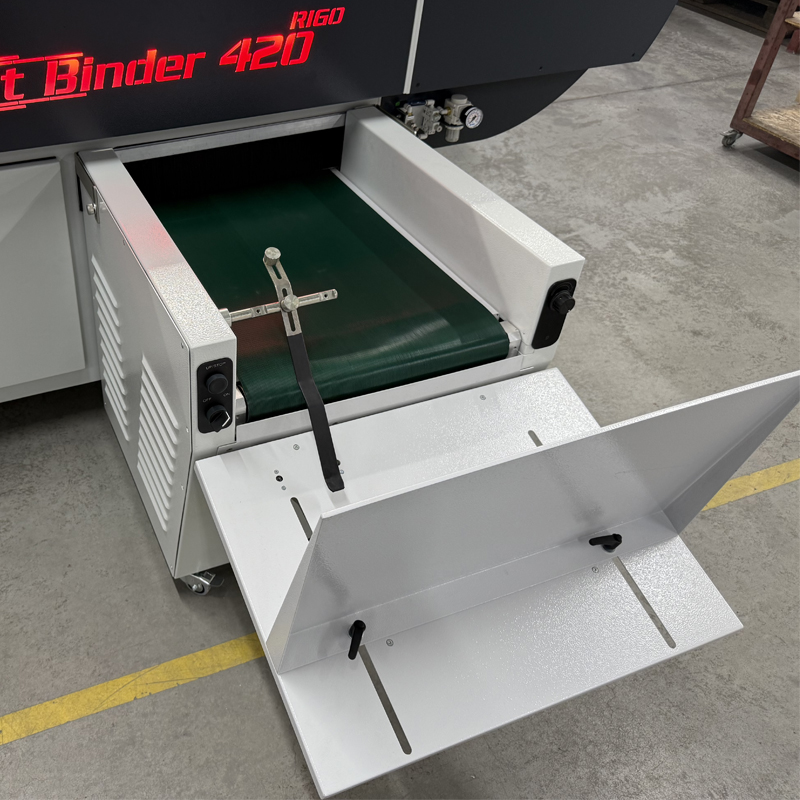

- Book Ejection – Automated to Conveyor and Integrated Stacking Unit
- Spine Glue Application – EVA (Recommend Planamelt R)
- Side Glue Application – EVA (AP-80164)
- Standard Features – Touch Screen Controller (Omron), Paper Dust Extraction, Stacker Unit, Online Remote Control
- Dimensions (L x W x H) – 3,010 x 1,110 x 1,670mm
- Weight – 1,100kgs
- Power Requirements – Single or 3 Phase Selectable (40A Single Phase 230V)
- Optional – Ultra-Sonic Double Sheet Detector, Glue Fume Extractor, Additional Scoring Wheels for Wing Type Covers
Introducing our unique Alliance Package. Our support does not cease once we make the sale or agree on a deal. At AfterPrint Ltd we are unique; our aim is to develop long-term business relationships that ensure you return to buy again when the time comes.
To ensure we are offering the most comprehensive package all of our Digital Finishing Solutions come complete with our unique Alliance Service Package. This package ensures your new purchase is taken care of correctly from day 1 and throughout your ownership of the product, to do this we include:
Delivery
- A Pre-Delivery Inspection is conducted on every machine prior to shipment
- A site survey will be conducted prior to shipping to ensure the delivery goes smoothly
- Specialist instrument logistics companies with freight insurance are used for delivery
- All deliveries are completed with Tail-Lift equipped vehicles & a minimum two-person team
- Customers are offered suitable timed delivery slots with a 2 Hour delivery window
Installation
- Our Installation Team will arrive at an agreed time to complete the installation (Normally on the same day as the delivery unless otherwise specified)
- The installation team will complete a thorough check of all processes and operations of the machine against the PDI checklist
- If the machine has been split into smaller components for delivery, the installation team will re-build the machine onsite
- Standard installation is ground floor with direct access, splitting the machine and re-building will not incur extra charges
- Installations required on upper floors will require lift access or extra charges will be incurred. All charges will be made clear and agreed upon before the installation date.
Training
- Training will be conducted by our trained and certified Specialist Training Team
- Training includes Best Working Practices for Safe Operation, General Operation, Binding Styles & Glue Up Keep
- All trained operatives will be issued with an official training certificate from our Certified Trainers (Certificates are created and posted within 7-10 days of training completion)
- Training is completed in small groups of up to three people maximum
- Training is normally completed on the same day as the installation
12 Month Manufacturer Warranty
- Manufacturer Warranty on all parts from the date of installation
- All Manufacturer warranties do not include labour, travel or identifying of parts (See Service Section)
12 Month Alliance Service Benefits
- 20% Discount on All Parts (Discount will be taken from Standard UK Sales Price of each Part)
- Direct Technical Team Access on the first phone call to discuss the fault (this will speed up any part requirements and offer a solution if possible that the operator can implement)
- Guaranteed next day appointment for an engineer to be onsite (Technical team will allocate during the initial phone conversation and confirm)
- Technical Team will identify if parts could be needed to resolve the issue, parts will be dispatched the same day so the engineer can meet parts on-site and perform the repair
- Parts will only be requested for payment once the parts are fitted and the machine is operational (All parts will be paid on account)
- 3 Month Warranty on all parts we fit (Manufacturer standard warranty is 30 days)
- No Call-Out Charges for Emergency Calls
- No Travel Charges for Emergency Calls
- No Labour Charges (Includes all-time on-site under normal contract conditions)
- 2 Preventative Maintenance visits per annum
- Call out priority given to customers on an agreement (Contracts will take precedence over an Ad-Hoc call out)
- Unlimited Emergency Call Outs – Within reason, Excludes intentional damage
- Free Technical Advice on how to set up machinery or complete certain tasks
