Used Matrix MX-370P – Pneumatic Single Sided Laminator with Foiling
Semi-Automated Single Sided Laminating Solution Pneumatically powered laminating rollers Low cost solution to bring your laminating back in house Optional...
Products
Used/Pre-Owned Laminating Machines
- Semi automated single-sided laminator with Foiling
- Produces up to 20 guillotine ready sheets per minute
- Ideal for short to medium run lengths
- Pneumatically controlled roller pressures
- Large chrome laminating roller
- Overlap control on feed gate via PLC Controller
- Automated burst function for sheet separation
- Adjustable de-curling bar for lay-flat production
- Rewind roller for foiling applications as standard
- Capacitive touch screen control panel
- Preset functions for common applications
- Infrared heaters with Thermo-couple sensors
- Silent compressor
- Compatible with all film types including Boss & Ultrabond
- Compatible with all toner foil effects including metallics & holographics
Read MoreLess
£4,495.00 ex VAT
£5,394.00 inc VAT
Description
Demonstration Video
Specifications
Ancillaries

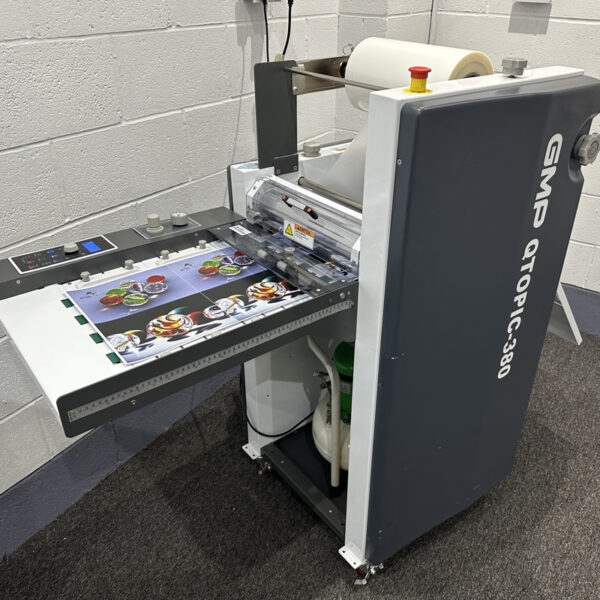

We have available this 2nd user GMP Q-Topic 380 Laminator with Foiling Unit and Silent Compressor. The machine is in a great condition with zero marks or wear on the rollers. There are some superficial marks to the outer covers but these do not effect the overall appearance of the machine. This particular machine has only ever been used for foiling applications so has done very little work for a production quality laminator. Our engineers have cleaned, serviced and checked over the machine ready for its new owner.
The GMP Q-Topic single-sided laminator is a specialist finishing system that meets the needs of an on-demand printer as an excellent complement to most digital print engines. This unit comes as standard with a semi-automatic feeder which controls the sheet overlap and operator feeding speed to ensure perfect results with the minimum of effort. A pneumatic chrome lamination roller sets a new standard in compact production environments. An adjustable de-curling system and rear burst roller ensures excellent lay-flat results.
The Q-Topic is capable of both laminating as well as SleekDigital finishing technology (Commonly known as Toner Foiling) which allows for variable data foil stamping, spot varnishing and holographic effects on digital outputs. The Q-Topic is the professional and economical addition for inhouse on-demand lamination and speciality finishing.
Q-Topic Features:
- Semi Automated Operation
- Illuminated feed indicator with pre-load function
- Automatically overlaps the sheets for perfect single sided results
- Adjustable overlap via control panel
- Speeds up to 10 Metres Per Minute possible
- Inline Burst Unit separates the sheets as they exit
- Produces up to 20 guillotine ready laminated sheets per minute
- Pneumatically controlled for best results on a wide variety of film types
Comes with a 3 Month Warranty, Silent Compressor, Foiling Attachment & Instructions.
Delivery, Installation and Training available at an extra cost
Demonstration available at our Cheshire, Showroom.
- Maximum Paper Size – 380 x 500mm (option for 1,200mm)
- Minimum Paper Size – 180 x 210mm
- Laminating Speed – Variable 1.5 to 10 metres per minute
- Substrate Thickness – 120 to 350gsm
- Film Compatibility – Tigerbond, Ultrabond, Boss Digital, Standard OPP films
- Foiling Capability – Yes fitted as standard
- Foil Styles – Metallic, Holographic, Gloss UV Effect (Spot), Matt UV Effect (Spot)
- Laminating Roller – Chrome Impact Roller onto lower silicone rubber roller
- Auto Sheet Overlap – Yes, automated gate on front table, PLC controlled combined with conveyor infeed belts
- Auto Sheet Separation – Yes using 3 perforation wheels and adjustable burst roller
- Control Panel – Capacitive Touch Screen
- Job Memory – Yes with laminating & foil settings pre-set from factory (all overwritable)
- Roller Pressure – Pneumatic & Fully Adjustable
- Pneumatic Power – Via silent compressor (included)
- Heating System – Infrared Heater
- Temperature Sensors – Yes – Thermo-couple inserted in the roller shell
- Film Core Size – 77mm (3″)
- Power Requirements – 240V 50Hz Standard UK plug
- Dimensions (W x L x H) – 720 x 1,700 x 1,350mm
- Weight – 187kgs
