- Immaculate example with very low total count
- Crease & Fold up to 5,000 sheets per hour

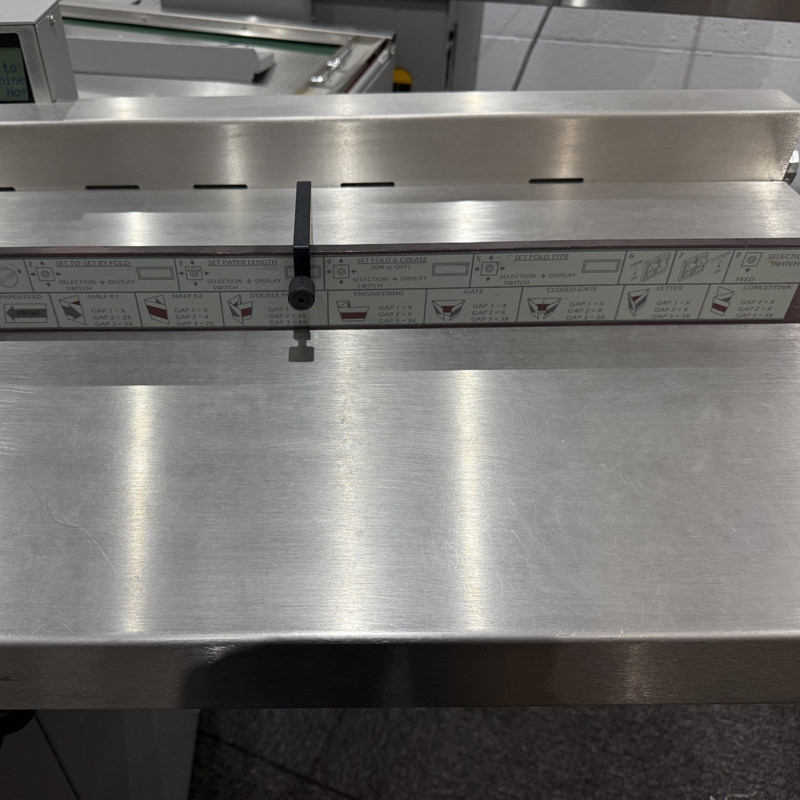

- Fold in all standard patterns – Half, Letter (C-Fold), Z Fold, Gate Fold, Double Parallel
- Eliminates fibre cracking on a wide range of digitally printed materials
- Patented DynaCrease technology
- Patented Flying Knife technology
- Posifeed feed system
- Crease only & fold only functions

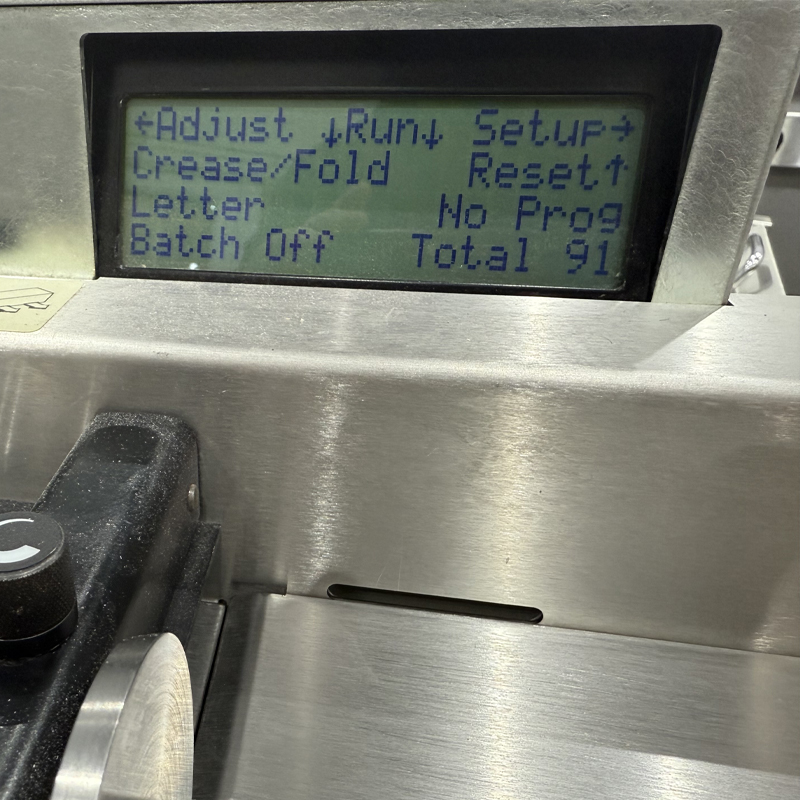

- SmartScreen touch screen operation
- Crease & fold up to 400gsm without fibre cracking
- Ideal for greeting cards, leaflets, menu’s etc
- Robust build with a proven track record
- Perfect for digital or litho printers, Universities, Copy shops, Councils
- Delivery, installation and full operator training also available (Extra charges may apply)
Read MoreLess
£4,295.00 ex VAT
£5,154.00 inc VAT
Description
Specifications

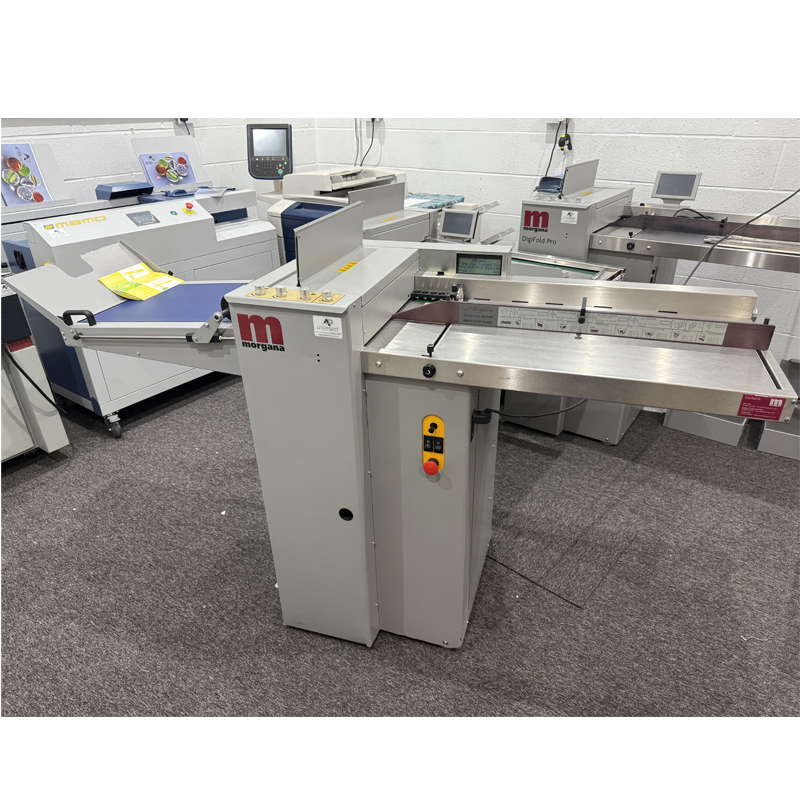

;An immaculate condition Morgana Digifold 5000P Creaser Folder. This machine has been very well maintained since new by its original owner. Serviced by Morgana for years and in perfect working order. Comes complete with the UK Instruction Manual and both narrow and wide crease tools.

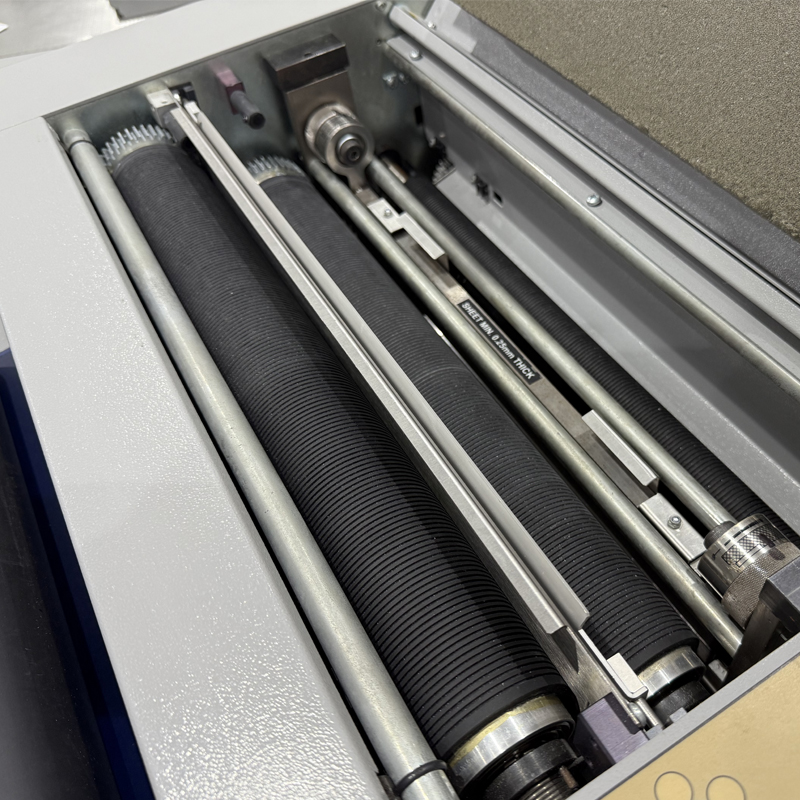

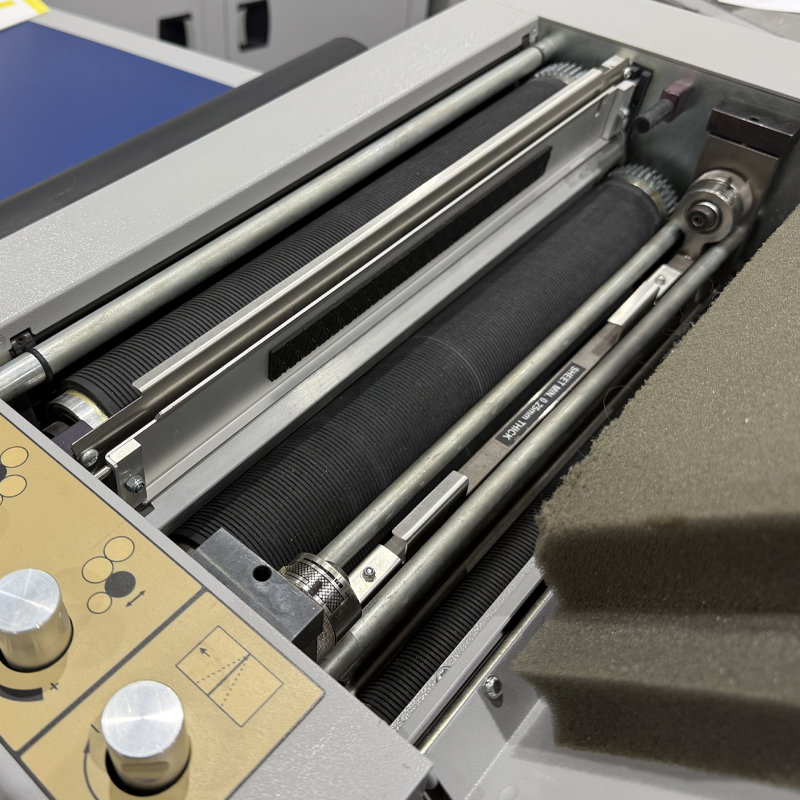

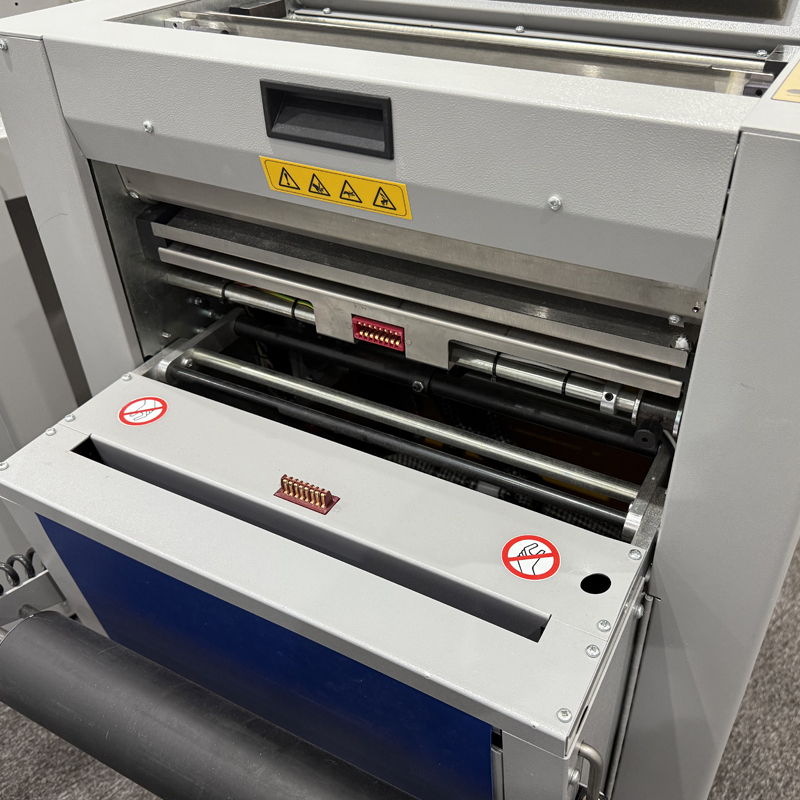

We have completed a full refurbishment to our normal high standards. As part of the refurbishment program we have replaced the exit tyres and cam followers. Due to the excellent condition of the machine and low total count, there are were very few worn parts. We believe this to be one of the best examples of the Digifold 5000P available on the 2nd user market. We welcome any inspection or trial, you will not be disappointed with this machine.
Demonstration available in our showroom in Cheshire, 10 Minutes from Junction 9 of M62 or Junction 21a of M6.
Comes with 3 Months Parts Warranty
The Digifold 5000P is an automatic creasing / folding machine designed specifically for the professional digital or litho printer who has a need to crease and fold digitally printed, heavy weight or cross grained stock.
By combining the functions of creasing and folding in a single compact unit. Morgana has provided the printer with a highly productive, easy to use mobile finishing centre. Equally effective with digital output or with heavy cross grained stocks.
The incorporation of yet more patented technology, the Dynacrease, Morgana has managed to increase the speed to over 5,000 A4 sheets per hour. Speed increases when running smaller stocks and is achieved by creasing the sheet without stopping it, yet maintaining accuracy of +/- 0.1mm.
This speed is maintained irrespective of the number of creases being applied to the sheet. 9 sheets each with 9 creases can now be produced in less than 9 seconds!

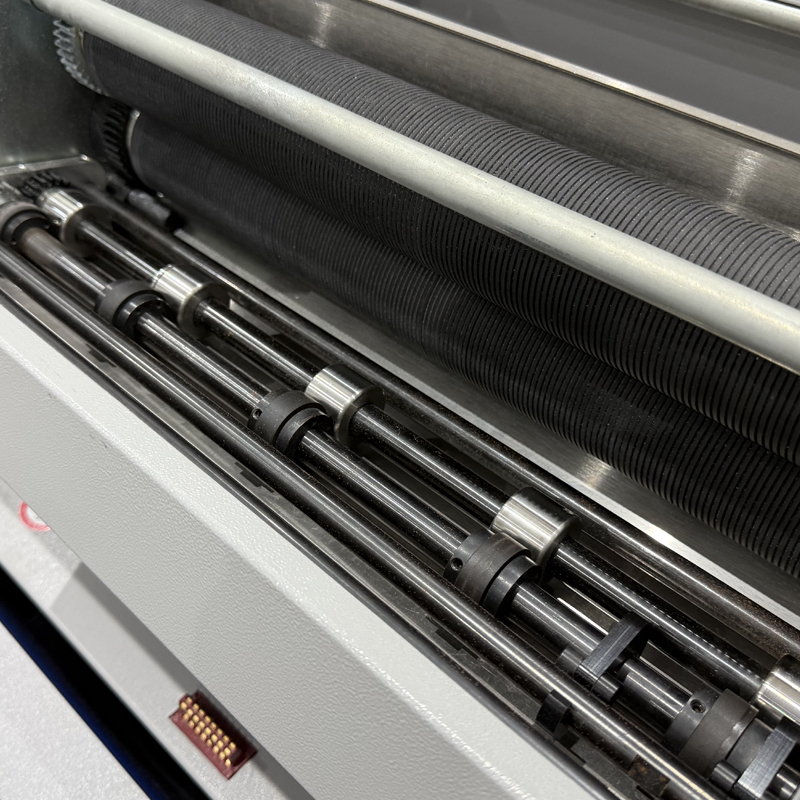

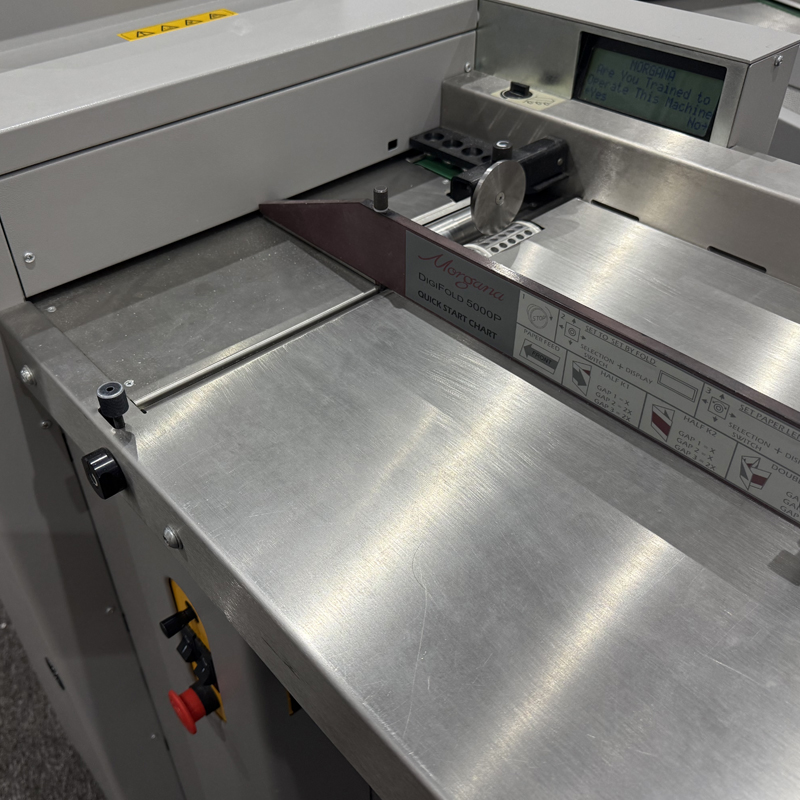

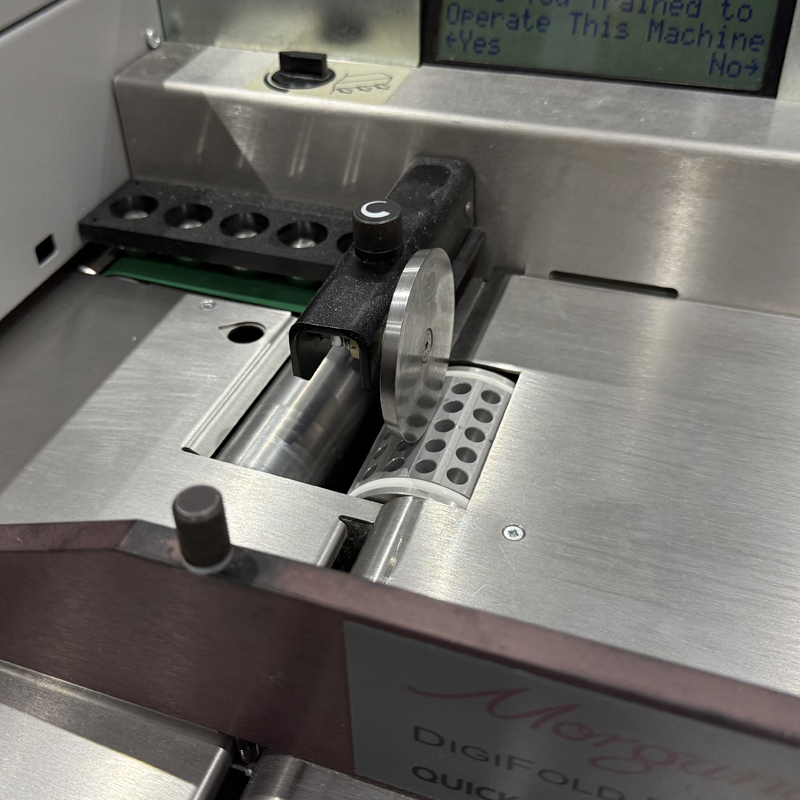

Perforation comes as standard on the Digifold 5000P with up to 5 perforation wheels being used across the sheet. The newly designed feeder is powered by a more powerful pump which allows greater airflow efficiency and therefore and higher pile to be loaded.
With a minimum sheet size of just 210 x 140mm and a maximum sheet size of 700 x 358mm, the Digifold 5000P can handle a wide range of jobs. Furthermore, it can hnadle both light and heavyweight stock, making it extremely versatile.
- Maximum sheet size – 700 x 358mm
- Minimum sheet size – 210 x 140mm
- Maximum paper thickness – 0.4mm (approx 400 gsm) including laminated material
- Minimum paper thickness – 0.15mm (approx 100 gsm)
- Maximum number of folds per sheet – 2
- Memory function – Yes 9 Programs
- Minimum repeat crease distance – 40mm
- Minimum repeat fold distance – 70mm (depending on paper weight)
- Minimum crease distance from lead edge – 50mm
- Minimum fold distance from lead edge – 50mm (depending on paper weight)
- Minimum crease distance from tail edge – 50mm
- Minimum fold distance from tail edge – 50mm (depending on paper weight)
- Minimum fold length – 70mm
- Speed per hour (A4 in half) – 5,000sph
- Dimensions (L x W x H) – 1,980 x 655 x 1,265mm
- Weight – 190kgs

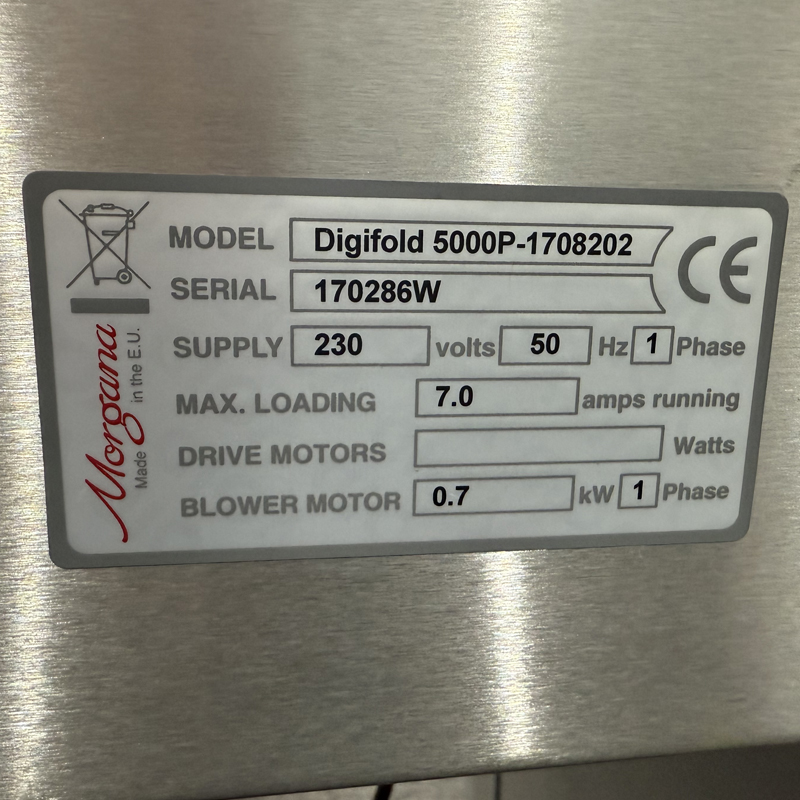

- Power requirement – 240V 50/60Hz
