Used/Pre-Owned Paper Guillotines

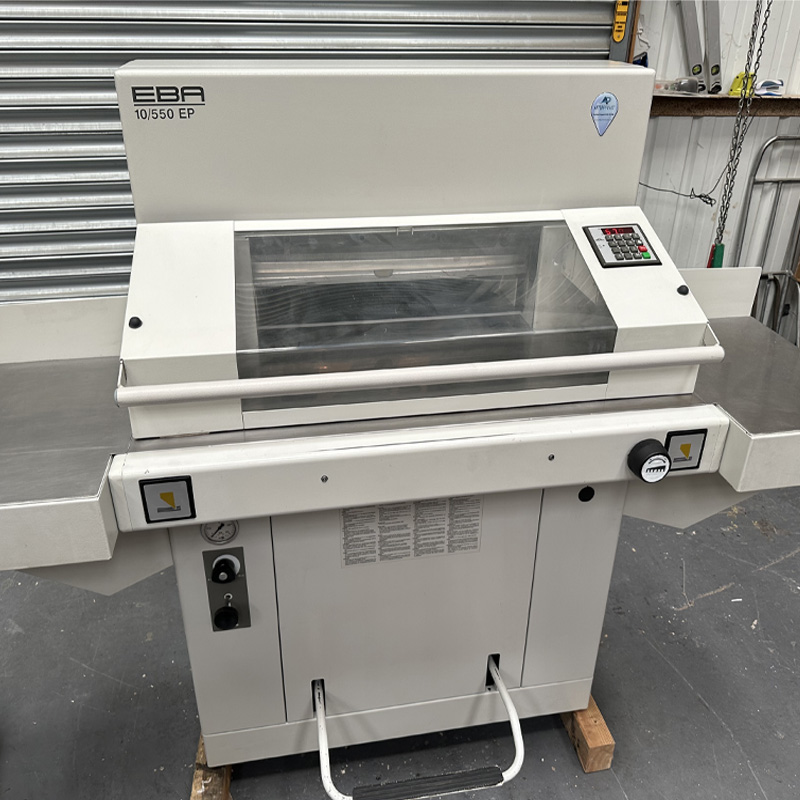

We have available this used EBA 10/550 EP Guillotine with Keypad controls and repeat cut function (not programmable). Fully refurbished. Full strip down to the framework and re-built with all worn or tired components replaced. The machine has been very well maintained by the original owner since new.  Regular maintenance completed by a certified EBA engineer.

This model is the same internally as the latest Ideal/EBA 5560 Guillotine with fully hydraulic operation of the knife and clamp mechanism. The new models utilise the exact same hydraulic system but with the added benefit of a IR Safety Curtain and a more advanced programmable touch screen control pad. This does also mean all parts from the newer machines cross over to this model. Electronically controlled back gauge with digital readout and quick tap in size adjustment. Multiple cut function for repeat cuts of the same dimension. The back gauge can also be positioned manually via the adjustment dial located on the front of the machine. A stainless steel front and rear table with the optional side tables also included to complete the package.

This model will cut up to a B2 Sheet (500 x 710mm) in half and SRA3 in both landscape and portrait orientation. Safety guarded front and rear and complies with new European Safety Standards.

The Used EBA 10/550 EP Guillotine offers:

• 550mm cut width
• 550mm cut depth behind the blade (Ideal for SRA2 in half)
• 95mm cut height for up to a full ream of 500+ sheets
• Fully Hydraulic Power knife (cut & release in 3 seconds)
• Fully Hydraulic Power clamp with Adjustable Clamping Pressure
• Removable False Clamp Plate (Works in tandem with the Adjustable Clamping Pressure to control clamp marking)
• Foot Treadle Operation of Clamp for Pre-Clamping (Ideal for awkward or difficult stocks)
• Power back gauge with keypad – simply tap in your desired size and the back gauge moves to that position automatically
• Multiple Cut Function
• Upgraded red optical cut line indicator
• EP models come complete with keypad controls for the back gauge with digital readout
• EP models have an electronically operated hand wheel for manual positioning of the back gauge

Comes with a new 6 Month Health & Safety Certificate, 2 Spare Blades, Tool Kit, Wooden Jogging Block and a 3 Month Parts & Labour Warranty.

Installation & Training can also be provided upon request – Extra charges may apply.

Available for demonstration in our Cheshire Showroom.
