Used/Pre-Owned Creasing Machines

  • Clean example with very low total count
  • Folds pre-creased sheets at up to 8,500 sheets per hour
  • Fold in all standard patterns – Half, Letter (C-Fold), Z Fold, Gate Fold, Double Parallel
  • Eliminates fibre cracking on a wide range of digitally printed materials
  • Patented Flying Knife technology
  • Can be linked to ANY existing creasing machine
  • Folds light weight 80gsm up to heavy weights of 400gsm
  • Can be hand fed as an offline solution
  • SmartScreen touch screen operation
  • Ideal for greeting cards, leaflets, menu’s etc
  • Robust build with a proven track record
  • Perfect for digital or litho printers, Universities, Copy shops, Councils
  • Delivery, installation and full operator training also available (Extra charges may apply)

£4,995.00 ex VAT

£5,994.00 inc VAT

Original price was: £14,990.00.Current price is: £4,995.00. £5,994.00Add to basket

Description

Specifications

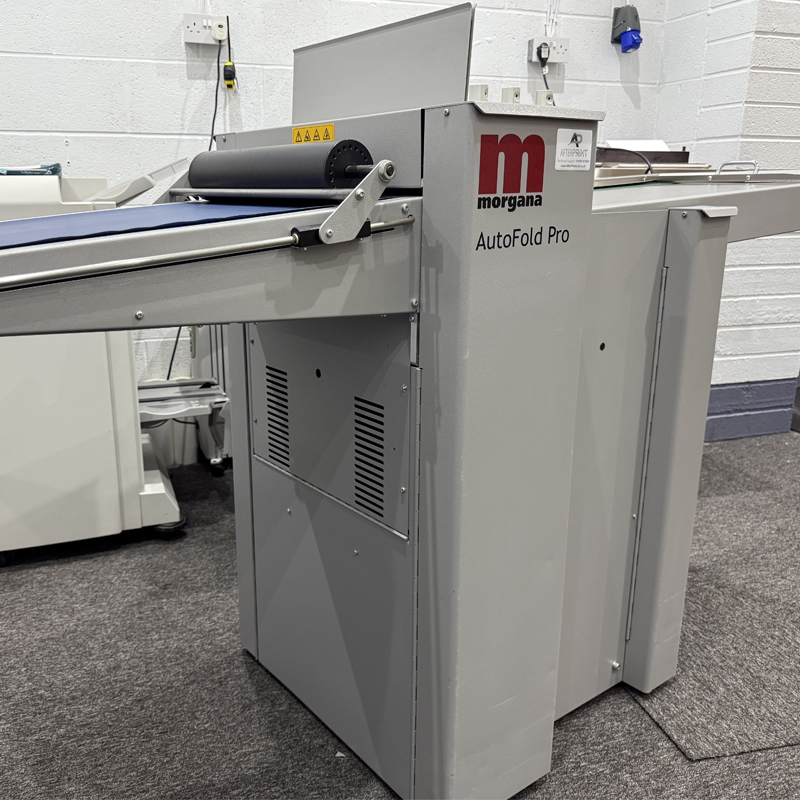

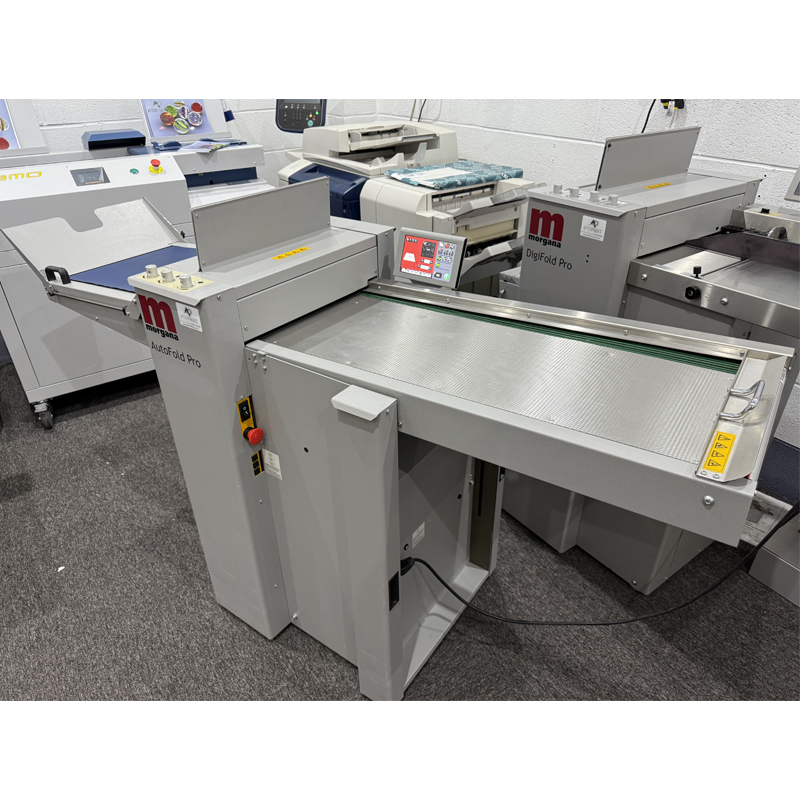

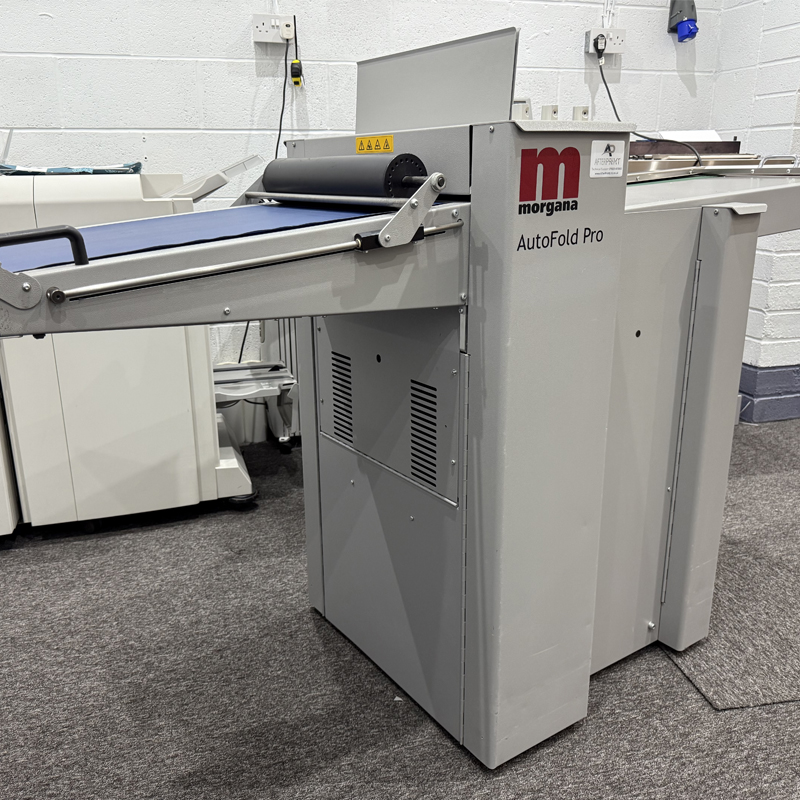

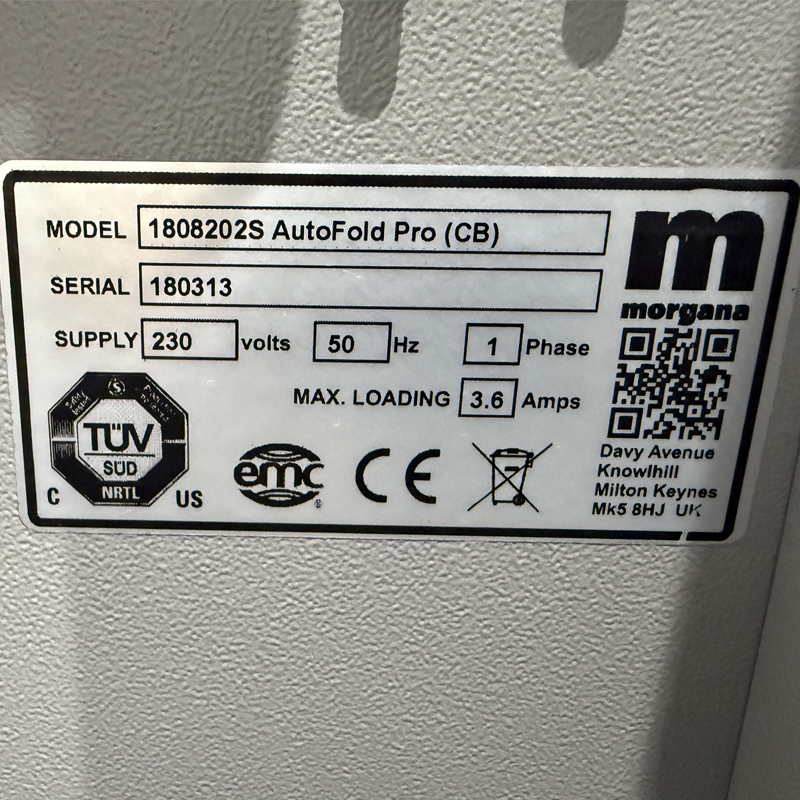

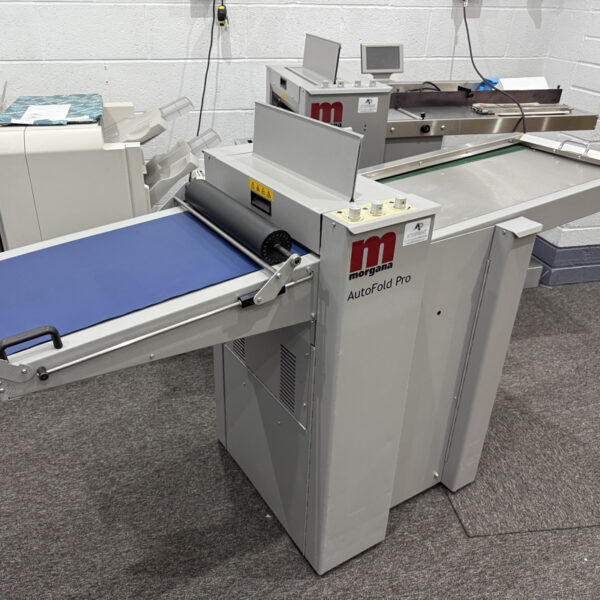

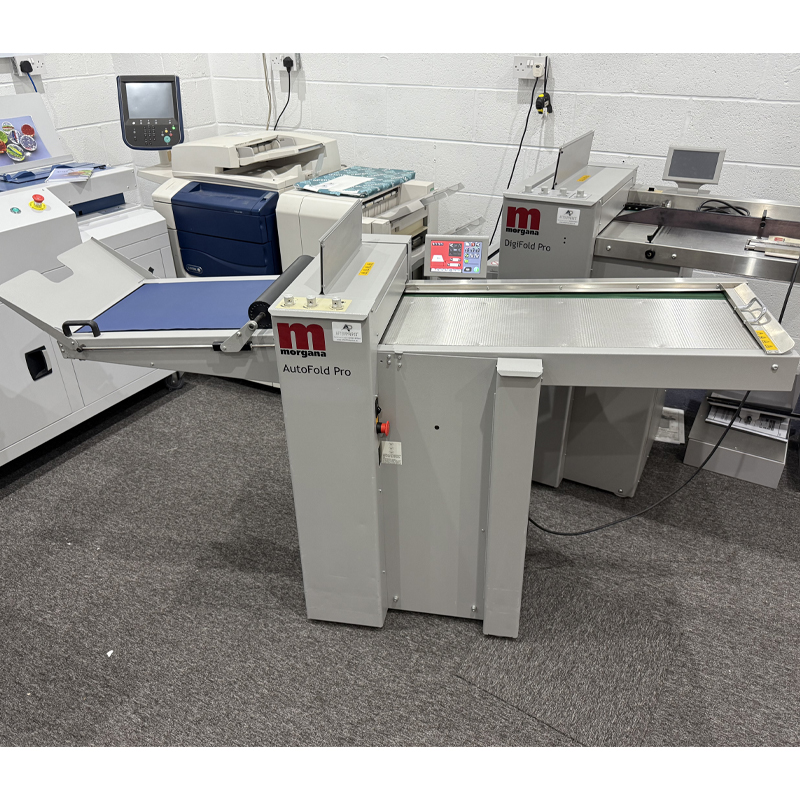

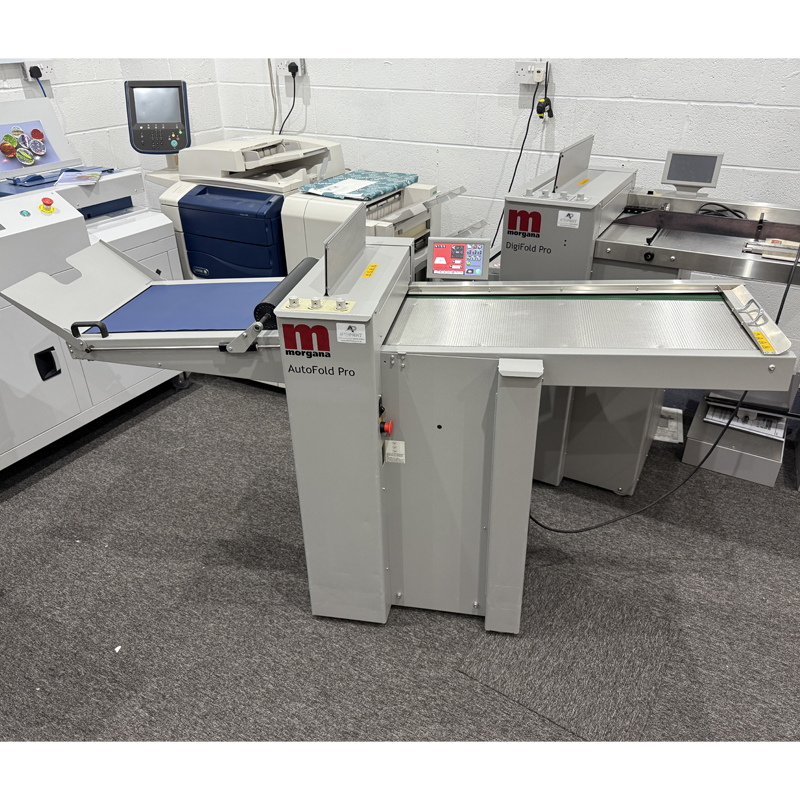

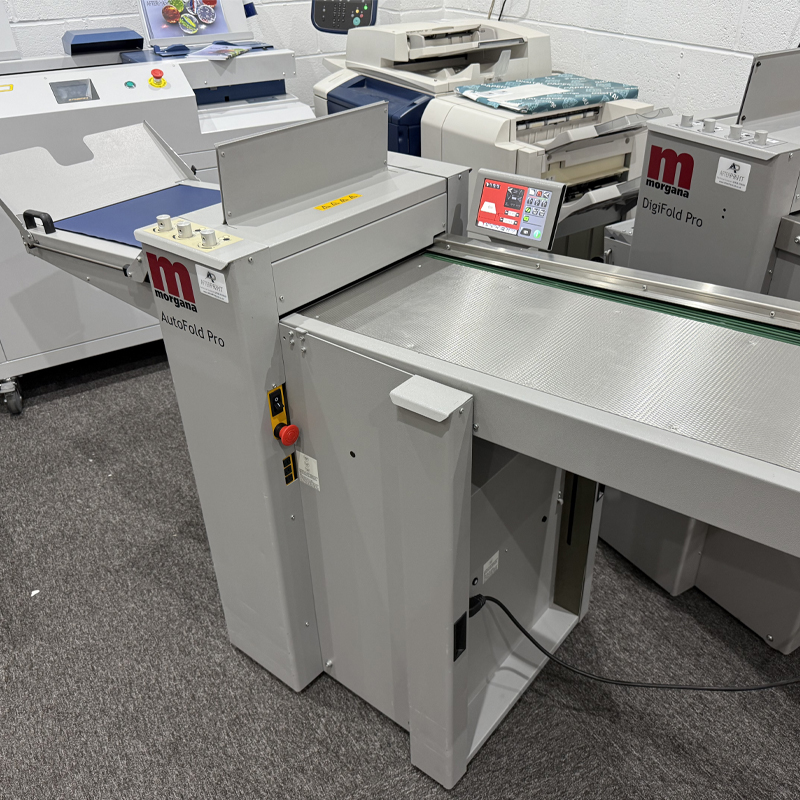

We have available this 2nd User Morgana AutoFold Pro. High-quality folding when linked to any manufacturer’s creaser. Manufactured in 2018 and in a great overall condition. It has a low total count of just 94,567 sheets since new. Although the total count is low, our trained engineers have still taken the time to service and check over the machine. As a precaution, we have replaced all consumable or commonly wearing parts. We welcome any inspection or trial.

Demonstration available in our showroom in Cheshire. 10 Minutes from Junction 9 of M62 or Junction 21a of M6.

Comes with 6 Months Parts Warranty

The AutoFold Pro is an automatic folding machine. Designed specifically for the professional digital or litho printer who has a need to fold pre-creased sheets. It is a free standing unit designed for folding digital stocks using Morgana’s patented flying knife technology. The Autofold Pro can be aligned to any Morgana or other manufacturer’s creaser. It offers perfectly folded results on a wide range of both digitally or litho printed stocks.

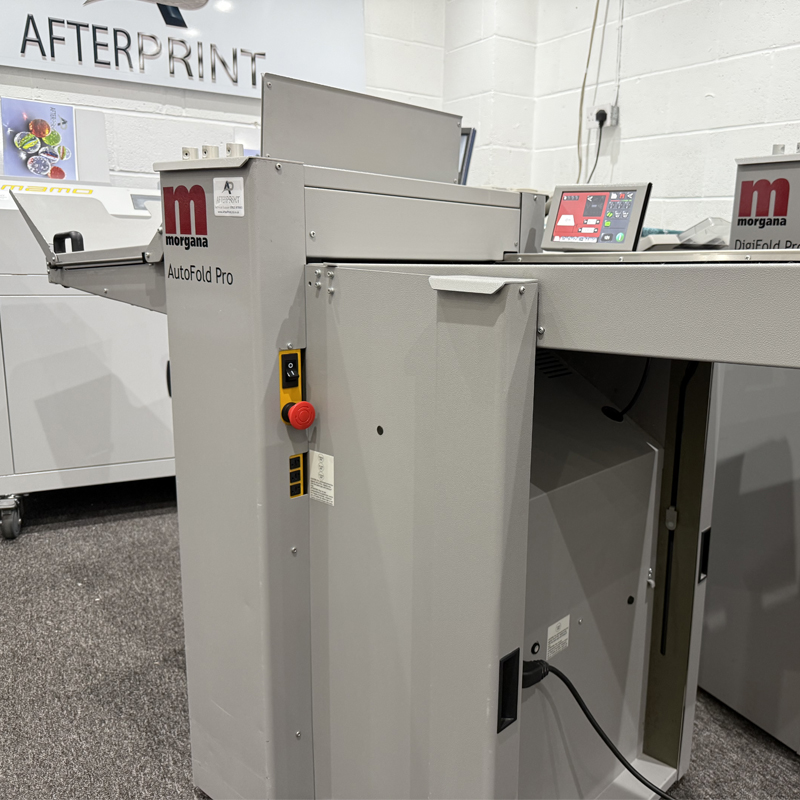

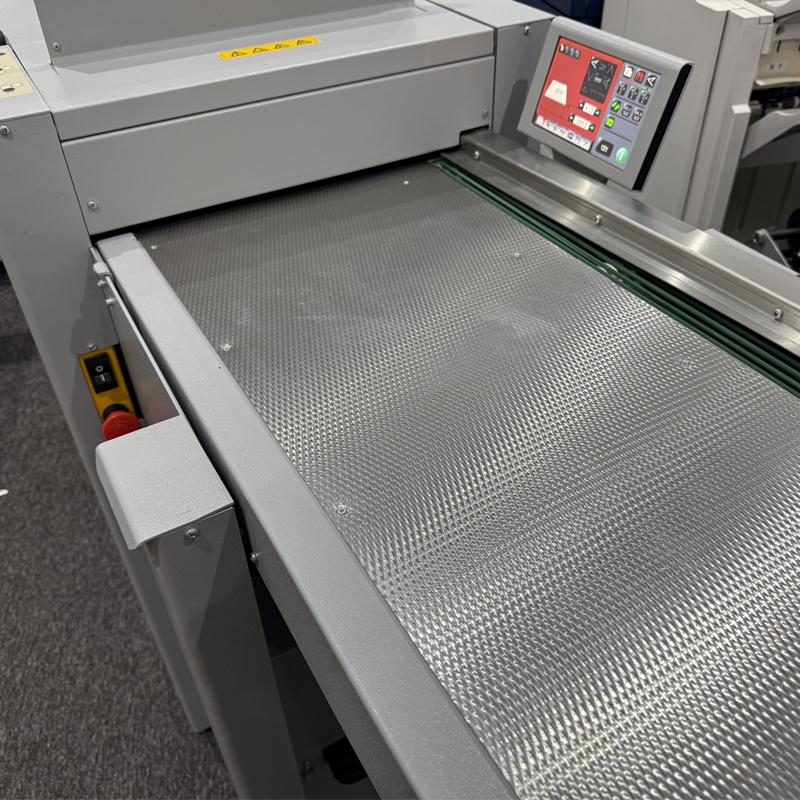

Controlled by the same intuitive 7″ SmartScreen panel as other machines in the Pro range. The Autofold Pro is instructed how long the pre-creased sheet is and which fold to produce. All settings and adjustments are made using the new SmartScreen and as only symbols are used, operation couldn’t be simpler.

The beauty of the Autofold Pro is its simplicity allowing the user of ANY manufacturer’s creaser to invest in one and to improve their productivity and quality immediately.

With a minimum sheet size of just 210 x 140mm and a maximum sheet size of 700 x 385mm, the AutoFold Pro can handle a wide range of jobs. Furthermore, it can also handle both light and heavy weight stock making it extremely versatile.

  • Maximum sheet size – 700 x 385m
  • Minimum sheet size – 210 x 140mm
  • Maximum paper thickness – 0.4mm (approx 400 gsm) including laminated material
  • Minimum paper thickness – 0.11mm (approx 80 gsm)
  • Maximum number of folds per sheet – 2
  • Memory function – Stores up to 50 custom jobs
  • Folding Blades – 2
  • Minimum repeat fold distance – 70mm (depending on paper weight)
  • Minimum crease distance from lead edge – 50mm
  • Minimum fold distance from lead edge – 50mm (depending on paper weight)
  • Minimum crease distance from tail edge – 50mm
  • Minimum fold distance from tail edge – 50mm (depending on paper weight)
  • Minimum fold length – 70mm
  • Speed per hour (A4 in half) – 8,500sph
  • Dimensions (L x W x H) – 2,129 x 660 x 1,235mm
  • Weight – 210kgs
  • Power requirement – 240V 50/60Hz
