- Fully refurbished 2023 Multigraf Touchline CF375
- Crease & Fold in one pass at speeds up to 5,000 sheets per hour
- Folds all standard fold patterns – Half, Letter, Z-Fold, Gate & Double Parallel
- Eliminates fibre cracking on a full range of digital & offset media
- Unique Swingarm crease action – prevents the sheet from stopping during the crease process
- Can be used for crease only or fold only

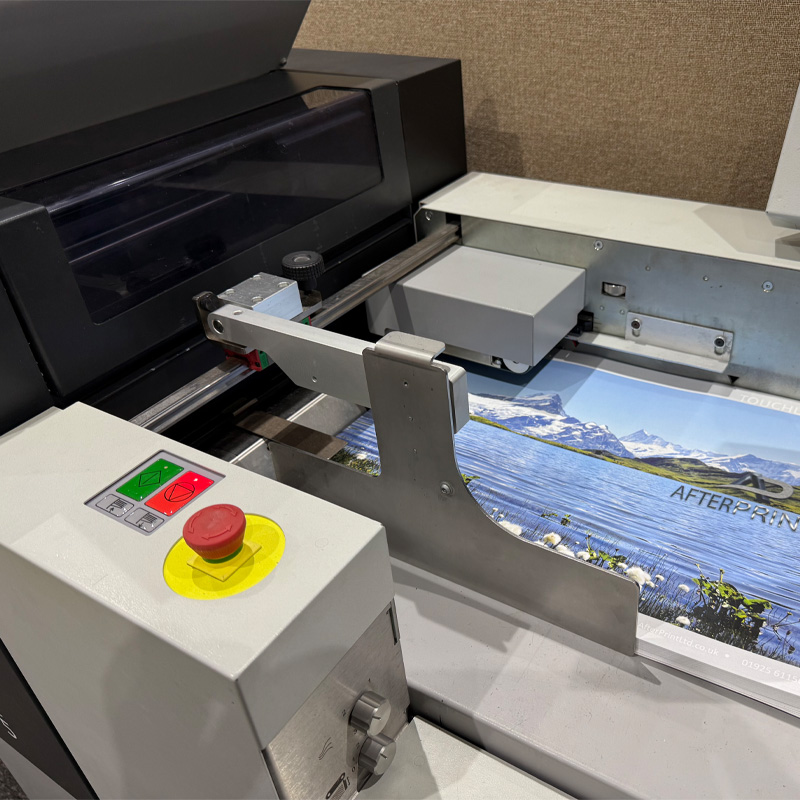

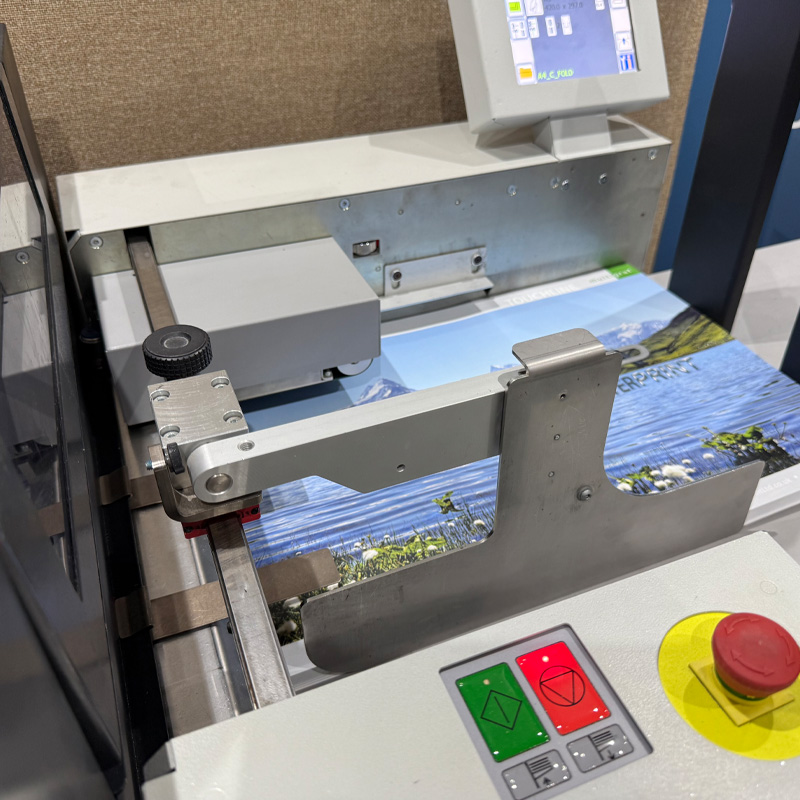

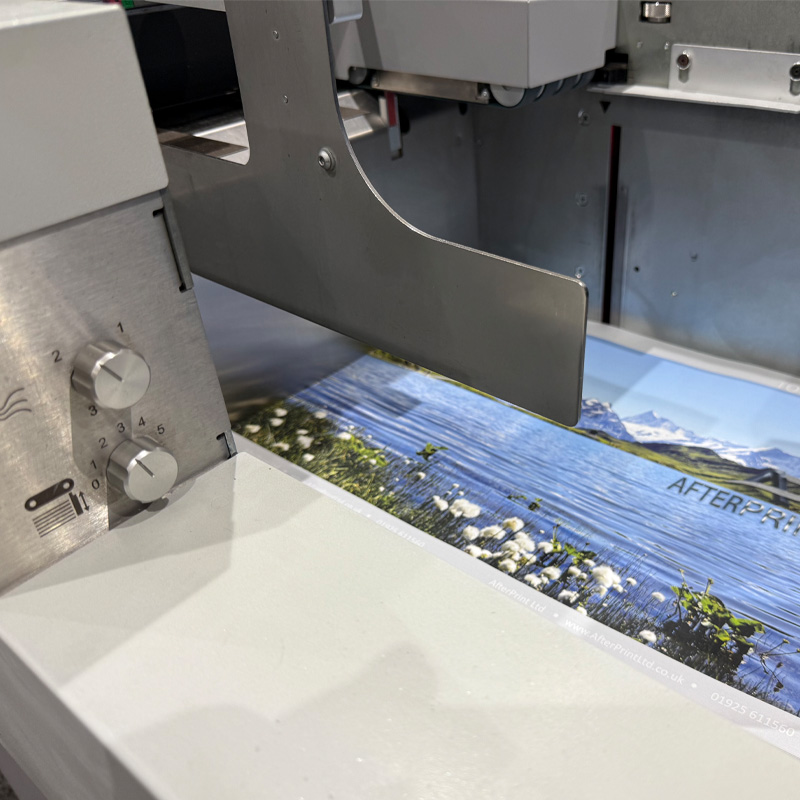

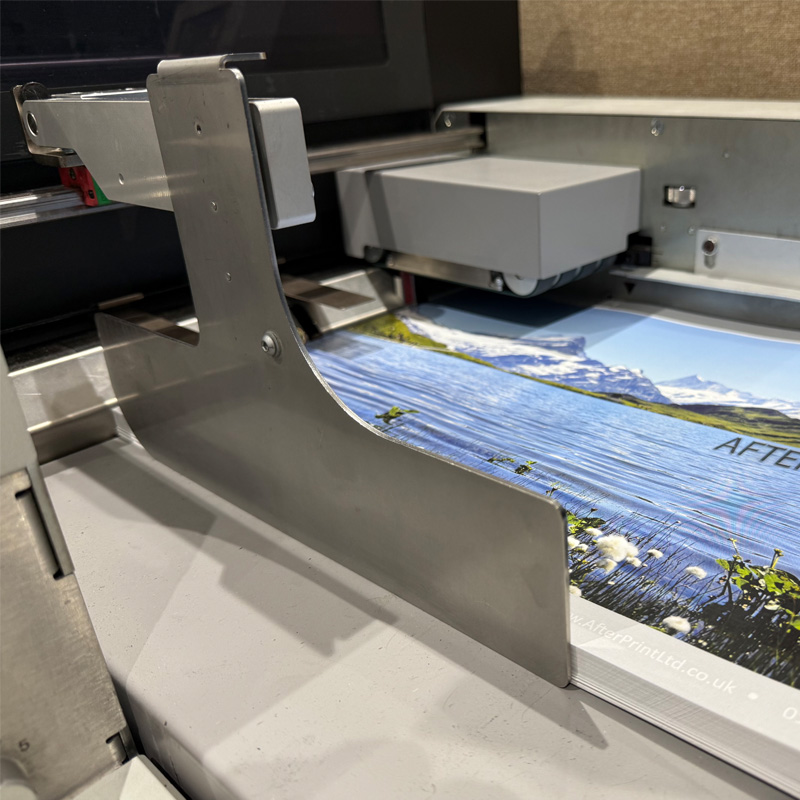

- Top feed vacuum belt
- High capacity feed table holds up to 180mm of media

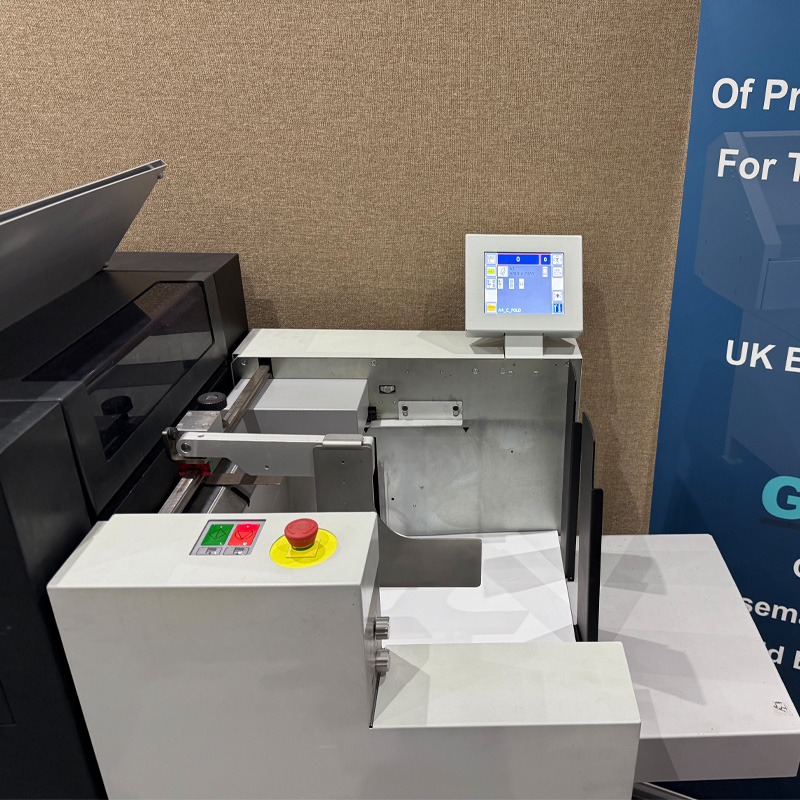

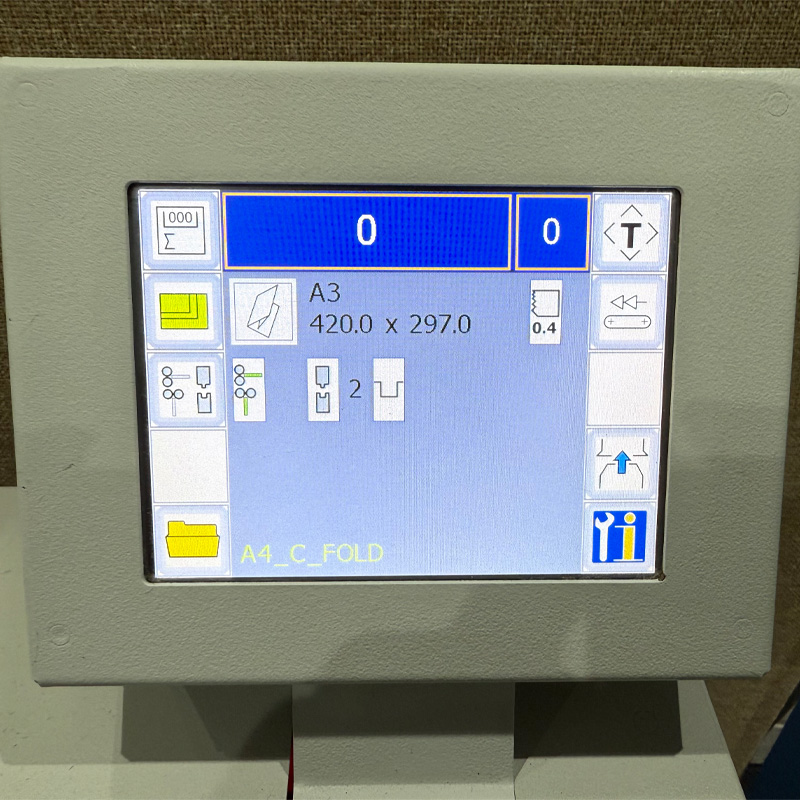

- Touchscreen controller for digital setup without tools
- Outputs an average of 3,000 to 5,000 folded sheets per hour
- Complete with Crease Tool and 2 Multigraf Pro Fold Knives
- Apply up to 20 creases in one pass (Max 2 folds)
- Ideal for mid to high volume production of Greeting Cards, Menu’s & Folded Leaflets
- Crease & Fold up to 400gsm Stock
- Robust Swiss Made product
- Perfect for Copy Shops, Commercial Print, Digital Printers & Universities
Read MoreLess
£14,995.00 ex VAT
£17,994.00 inc VAT
Description
Demonstration Video
Specifications

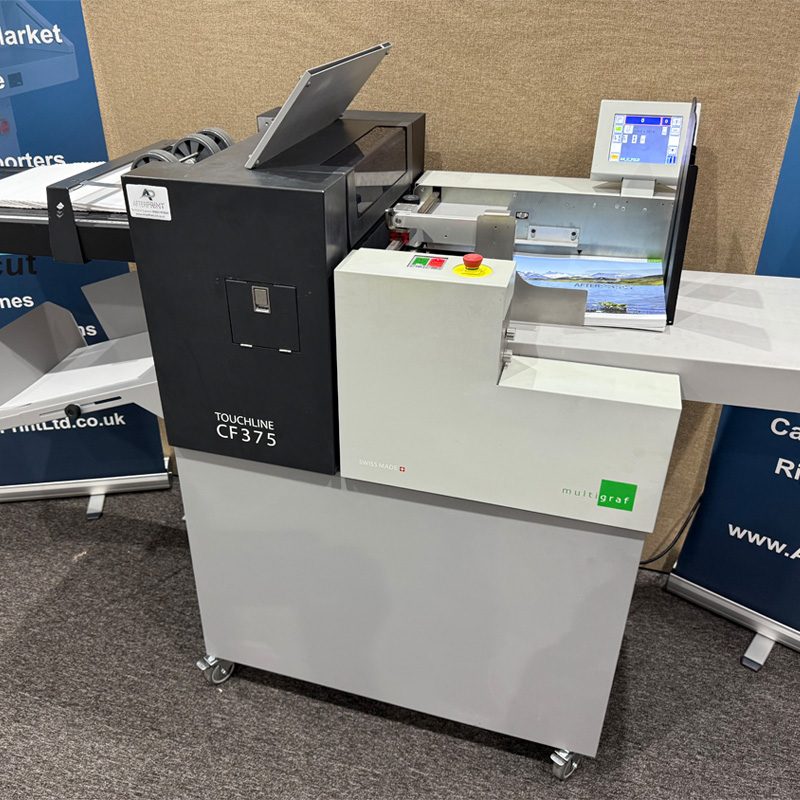

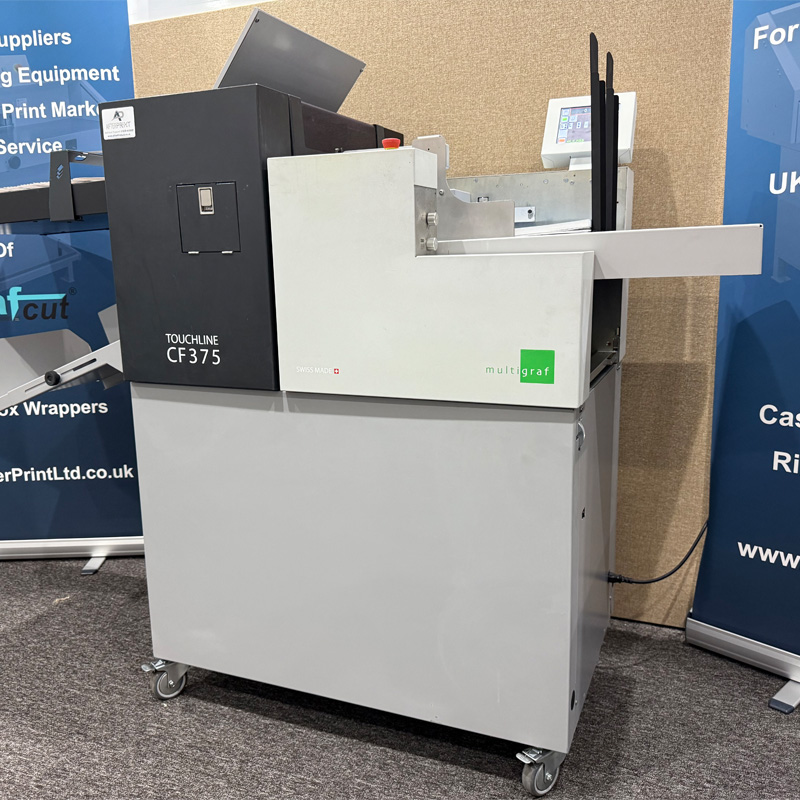

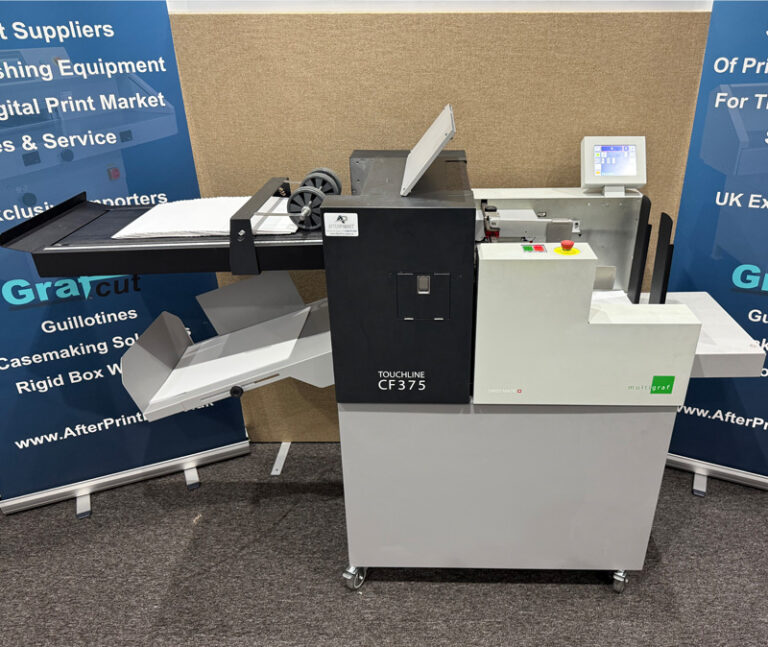

AfterPrint are delighted to offer this 2nd User Multigraf Touchline CF375 Crease & Fold solution. This is a 2023 machine so only just 2 years old. The machine has been fully rebuilt with new rollers, bearings, belts & sensors throughout the machine. We have thoroughly tested the machine ready for use by its new owner. The machine is in a very good condition as a result of our full refurbishment program.
Comes with a 6-Month Mechanical Parts Warranty
Delivery, Installation & Training can be arranged at an extra cost.
About Multigraf CF375
The Multigraf Touchline CF375 is a user friendly creasing and folding machine that will improve your productivity and your finishing quality. Highly efficient and automated, it allows users to crease and fold in a single pass, with setting up finished in seconds. Creasing without fibre cracking is possible using the system’s unique Multigraf Swingbar Crease system. Additionally, this system allows the crease tool to travel with the sheet, therefore preventing the need to stop the sheet to apply the crease. In turn, this speeds up production to an impressive 5,000 sheets per hour.
The Creaser/Folder Multigraf Touchline CF375 handles the widest range of paper stock of any machine in the world market. Capable of handling from 80 up to 400gsm, without any tool changes or re-configuring of the machine. Class-leading flexibility allows the CF375 to be used as a stand-alone creaser, a paper folder or with optional tooling a dedicated perforator. An integrated touch screen controller keeps every aspect of the machine operation at your fingertips. With unlimited program memory for repeat jobs and instant recall.

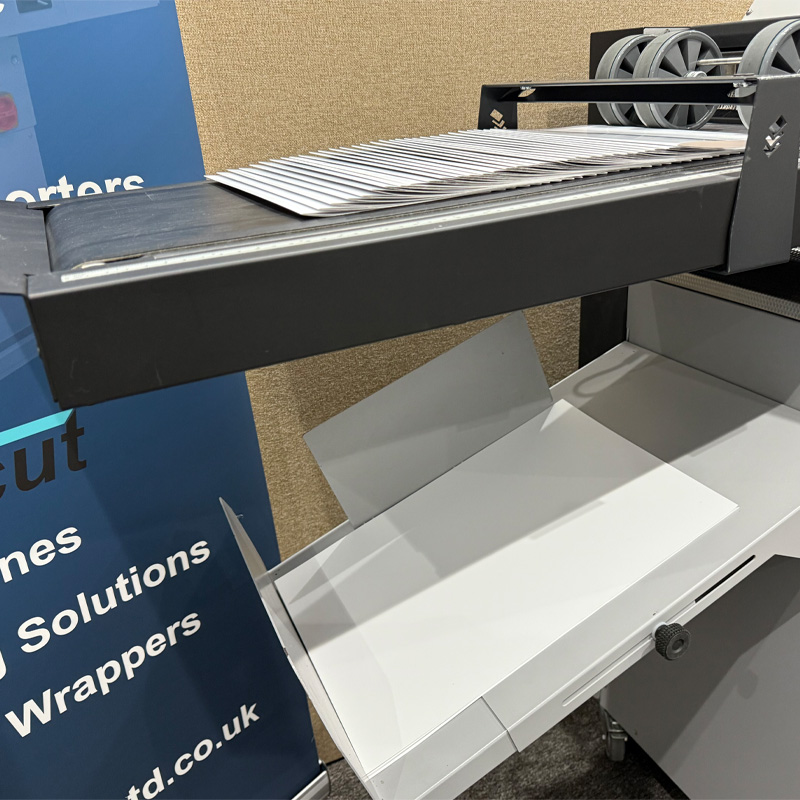

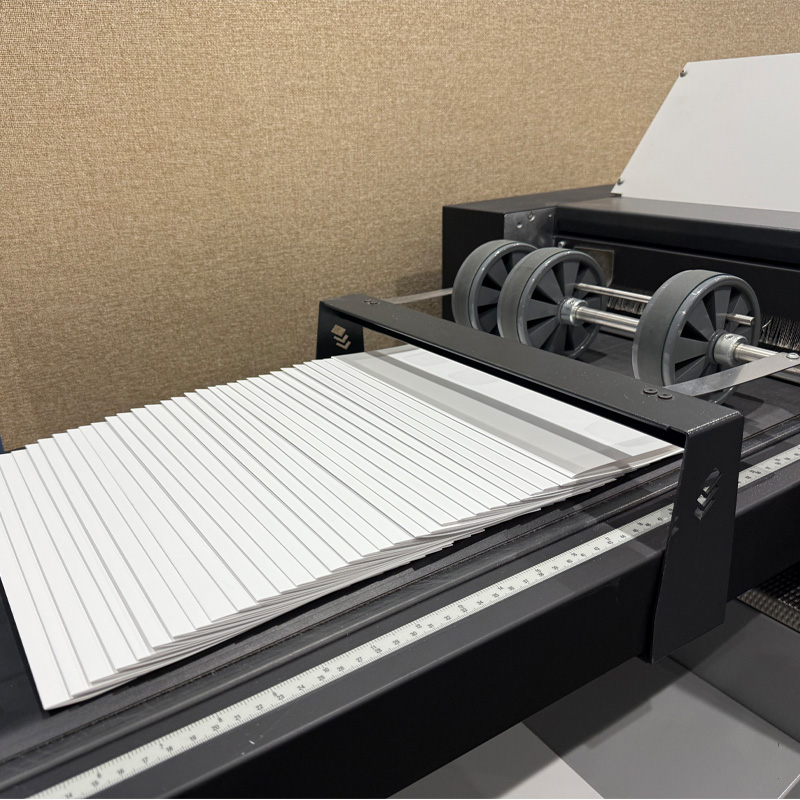

The 180mm high capacity feeder is complimentary to the rated speed and minimises any re-load times. The combination of this capacity along with top feeding design, means the CF375 simultaneously offers exceptional productivity and allows the operator to perform other tasks. Run your workflow faster and for longer periods, without any interruptions. The long conveyor also separates your job batches making it easier for you to collect and package each job individually. State of the art Ultrasonic double sheet detection comes as standard for highly reliable feed and perfect document integrity.
Why Multigraf?
Accepting challenges: That has always been the motto of Multigraf AG. 40 years ago, they made a name for themselves with innovative print finishing solutions. Flexible solutions that work efficiently and effectively have always been their focus.
The market change from mechanical to digital machines was a challenge but Multigraf have the answer: High tech Swiss made! This enabled Multigraf to transfer their many years of experience to a new generation of digital machines, setting themselves apart from the growing competition. Today the Touchline range of machines are some of the most innovative digital finishing solutions on the market.
5 Reasons to Buy a Multigraf Touchline CF375
- Crease and Fold in one pass at speeds up to 5,000 sheets per hour
- Unique Swing-Arm crease tooling speeds up production
- Crease and fold all standard formats and patterns with no special skills or tools
- Highly productive feeder with 180mm capacity for uninterrupted production
- Intuitive touchscreen control makes setup and format changes quick and simple
Typical Applications – Multigraf Touchline CF375
- Greeting Cards
- Folded Leaflets
- Menu’s
- Order of Service
- Brochures
- Flyers & Mailers
- Minimum Sheet Size – 105 x 148mm
- Maximum Sheet Size – 375 x 660mm (Table extension optional to 1,050mm)
- Stock Range – 80 – 400gsm
- Feeder Capacity – 180mm
- Production Speeds – Up to 5,000 Creased/Folded Sheets Per Hour (Based on A4 1 Crease Half Fold)
- Crease Tools – 2 Standard Receiver Bars 1.0mm and 1.2mm
- Creasing Depth – Adjustable 3 Automatic Steps
- Number of Creases – Up to 20 at 30mm intervals
- Fold System – Multigraf Pro Knife
- Number of Folds – Up to 2 Folds
- Control Unit – Touchscreen
- Control Unit Functions – Crease Positions, Fold Positions, Crease Depth, Fold Type, Paper Size, Batch Count, Air Separation, Vacuum Volume, Memory Function, Diagnostics
- Manual Controls – Air Gate for Separation, Feed pile height relation to feed belt
- Fold Types – Half Fold, Letter Fold, Z-Fold, Gate Fold & Double Parallel Fold
- Optional Tools – Rotary Perforation Module (Up to 2 standard tools down the length of the sheet only)
- Dimensions (L x W x H) – 1,850mm x 600 x 1,300mm
- Weight – 196kgs
