Duplo 150 Digital Booklet Maker System

  • Powerful Automated Booklet Making System for Digital Print
  • Feed, Stitch, Fold & Trim in One Pass
  • Professional Quality System for Low to Mid-Volume Users
  • Integrates Duplo’s Powerful DSF-2200 Digital Sheet Feeder with Vacuum Feed Technology
  • Feeds Pre-Collated Media – No Need for a Collator Unit
  • Separate Cover Feeder Allows Embellishments to be Added Prior to Completing the Job
  • Handles a Wide Variety of Media from 64 to 300gsm
  • Modular Design Grows and Adapts as your Business Demands Change
  • Compact Foot Print – Under 2.5 Metres in Length
  • Automatic Setup – User Friendly
  • 4 Finishing Modes – Booklets, Side Staple, Corner Staple, Fold Only
  • Produce up to 2,400 Booklets per Hour
  • Ideal Solution for Commercial Print, Digital Printers, Copy Shops
  • Very Economical to Run
  • Call or Click Enquire to Request an Official Quotation
Read MoreLess

Description

Demonstration Video

Specifications

Alliance Package Included

Ancillaries

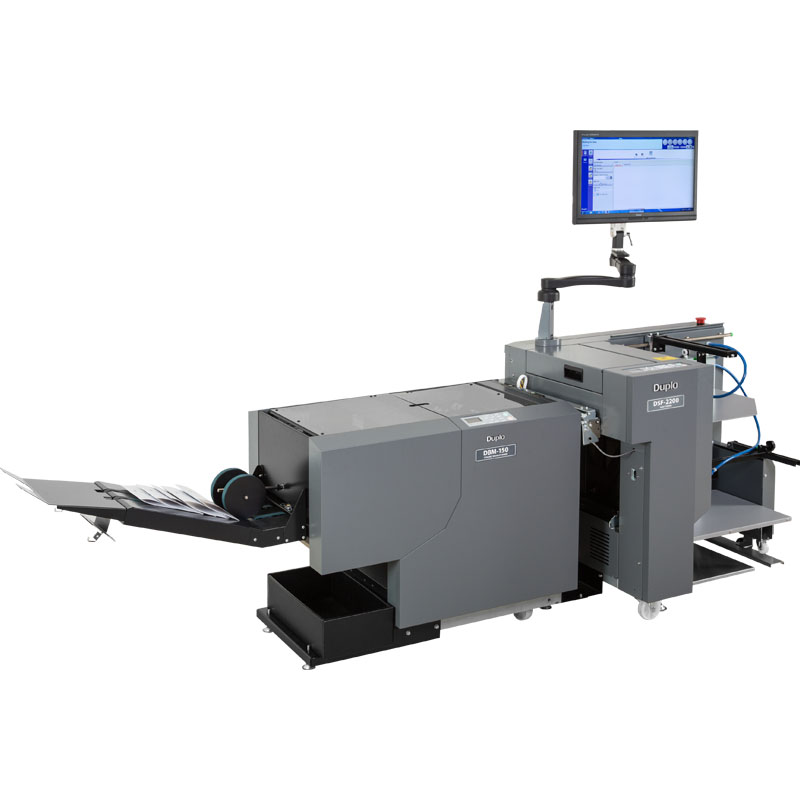

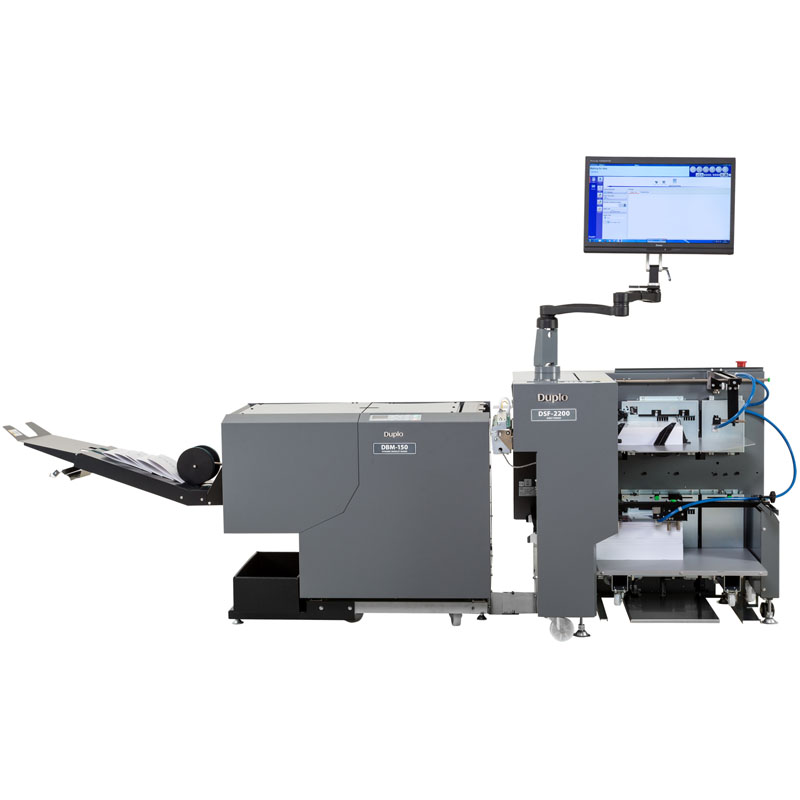

The Duplo 150 Digital Booklet Maker System is the combination of the world’s smallest fully automatic booklet maker, the DBM150, with the new generation DSF-2200 Sheet Feeder. It is an ideal near-line solution for low to mid-volume digitally printed sheets. Configured to meet the ever-changing demands of today’s digital printer. Designed to take the printed output from multiple sources. Duplo has bundled the features of the big booklet makers into this uniquely compact system.

Built around the DSF-2200, a heavy-duty sheet feeding system. Providing the user with the power, reliability and flexibility to handle a wide range of materials with consistent results. Equipped with an 8 belt feeding mechanism which enables the feed head to make contact with a large area of the sheet. Each bin comes with three separate DC fans, one to provide suction for feeding, another to provide front air separation and a final one to provide side air. Combined they ensure optimal paper separation and reliable feeding. The Duplo AMS (Air Management System) allows the operator to fine tune air control for each feed tray.

A PC Controller manages the system. This automatically sets up jobs within a few seconds without the need for any tools. The operator can create and save jobs with ease for future recall. State of the art Ultrasonic Technology comes as standard. The ultrasonic sensor detects air gaps between the sheets when a double feed occurs, regardless of ink colour or paper density. This enables the operator to feed different paper weights within the same job.

Integrates the Duplo DBM150T

To the left is the DBM-150 Booklet maker and Trimmer. A compact integrated system that sets up automatically from job memories to staple, fold and fore-edge trim to create a booklet or flat document. A wide variety of booklet formats from smaller-than-CD to A4 portrait finished size are possible. Easy change cartridges in the staple heads make for easy reloading. Optional loop stapling, to form ring staples suitable of filing, are also available. The 150 trimmer is fully automatic and is programmed from the PC Controller. The operator can adjust the trimming position both positively and negatively from 1 to 20mm.

Integrity & Security

The system can be equipped with features like Optical Mark Recognition (OMR) and optional Barcode Kits that can read 1D and 2D barcodes. The kit comprises of two readers for each feed tray and is designed to check the integrity of each set by reading a printed barcode on each sheet that is processed. Securing the production process and guaranteeing an accurate result. These features are especially important for personalised and variable production.

Why Duplo?

Duplo is a Japanese company which was established in 1951. Manufacturing one of the first duplicators in the print industry. In 1959, Duplo got its name “Duplo” coming from the word “Duplicator”. Duplo is now the leading supplier of print finishing equipment in the world having launched over 50 product ranges.

Today Duplo is dedicated to turning paper into great communication, pushing the boundaries of what’s possible with printed media. Duplo lead the world in the field of Multi Function Finishing Machines with the DC618, DC648 & DC746. Duplo were the first to bring this style of machine to market with the latest evolutions offering incredible performance and automation. Their booklet making ranges are just as impressive, starting with the entry level DBM150 through to the iSaddle systems, a solution for every requirement.

5 Reasons to Buy a Duplo 150 Digital Booklet Maker System

  • Powerful automated booklet making solution
  • Ability to take printed output from multiple sources – Handles pre-collated media
  • Consistent and reliable feeding of a wide range of media up to 300gsm
  • Ultrasonic Technology as standard secures the production workflow
  • Produce up to 2,400 booklets per hour

Typical Applications – Duplo 150 Digital Booklet Maker System

  • Booklets
  • Financial & Investment Reports
  • Benefit Statements
  • Pension Statements
  • Personalised University Prospectus
  • Order of Service
  • Brochures
  • Magazines
  • Newsletters
  • Instruction Manuals
  • Training Manuals
  • Menu’s

Duplo DBM150T Specifications

  • Maximum Sheet Size Booklets (W x L) – 320 x 460mm
  • Minimum Sheet Size Booklets (W x L) – 120 x 210mm
  • Maximum Sheet Size Side or Corner Stapling (W x L) – 320 x 231mm
  • Minimum Sheet Size Side or Corner Stapling (W x L) – 200 x 180mm
  • Paper Type – Fine quality 64 to 127gsm / Art coated 104 to 127gsm
  • Cover Type – Art Coated up to 300gsm
  • Stapling Thickness – Fine Quality up to 2.5mm regardless of paper weight / Art Coated up to 2mm regardless of paper weight
  • Trimming Capacity – 4 to 50 sheets
  • Trimming Waste Width – 1 to 20mm
  • Max Processing Speed – Up to 2,400 Cycles per Hour
  • Staple Capacity – 5,000 Staples per Cartridge
  • Adjustments – Independent Staple & Fold Position Adjustment, Skew Adjustment
  • Error Detections – Double Feed, Miss Feed, Bin Empty, Paper Jam, Staple Near Empty, Cover Open, Stop Position Error, Motor Overload, Fold Roller Gap Setting
  • Operation Panel – LCD Display
  • Noise Emission – 75db (A)
  • Dimensions (W x D x H) – 2,450 x 560 x 1,474mm
  • Net Weight – 203kgs
  • Power Consumption – 130W, 0.7-1.2A
  • Power Requirement – 230V, 50Hz – Normal UK Plug

Duplo DSF-2200 Digital Feeder Specifications

  • Number of Bins – 2
  • Upper Bin Capacity – 65mm
  • Lower Bin Capacity – 200mm
  • Sheet Length – 148 to 450mm
  • Sheet Width – 105 to 350mm
  • Paper Weight – 64 to 300gsm
  • Paper Type – Sheet, Variable Paper in the Same Stack
  • Detection – Double Feed, Miss-Feed, Paper Jam, Ultrasonic (Both Bins as Standard)
  • Feed System – Vacuum Belt with Air Sheet Separation (AMS)
  • Other Features – Active Anti-Static Bar, Touchscreen PC Controller with Duplo Software
  • Optional – OMR End of Set Mark Reader, Barcode Reader Kit, Trail Edge Air Kit, Pre-Loading Kit
  • Net Weight – 115kgs
  • Power Consumption – 130W, 0.7-1.2A
  • Power Requirement – 230V, 50Hz – Normal UK Plug

Overall System Dimensions

  • Duplo 150DBS System (W x D x H) – 2,540 x 750 x 840mm
