Duplo 350 Booklet Maker System

  • Powerful Automated Booklet Making System
  • Stitching Heads Offer Higher Productivity and Lower Running Costs
  • Collate, Stitch, Fold & Trim in One Pass
  • Professional Quality System for Mid-Volume Users
  • Integrates Duplo’s Powerful DSC 10/60i Vacuum Collator
  • Handles a Wide Variety of Media from 50 to 300gsm
  • Modular Design Grows and Adapts as your Business Demands Change
  • Compact Foot Print – Under 3.5 Metres in Length
  • Automatic Setup – User Friendly
  • 5 Finishing Modes – Collate, Booklets, Side Staple, Corner Staple, Fold Only
  • Produce up to 3,000 Booklets per Hour
  • High Speed Collation up to 10,000 Sets per Hour
  • Straight Stacking or Optional High Capacity Offset Stacking
  • Ideal Solution for Commercial Print, Digital Printers, Copy Shops
  • Very Economical to Run
  • Call or Click Enquire to Request an Official Quotation
Read MoreLess

Description

Demonstration Video

Specifications

Alliance Package Included

Ancillaries

The Duplo 350 Booklet Maker System is a fully automatic premium booklet-making solution for mid-volume commercial printers and in-plants. Combining the convenience of the DBM-350 Booklet maker and the power of the DSC-10/60 Collator. This system is capable of producing up to 3000 A5 booklets per hour and collating up to 10,000 A4 sets per hour. Starting with this system allows you to join a growth path for your business. Adapt and change the system as your needs develop by changing the collator to a sheet feeder for sequentially printed jobs; Or the booklet maker to a larger, faster alternative from the Duplo range.

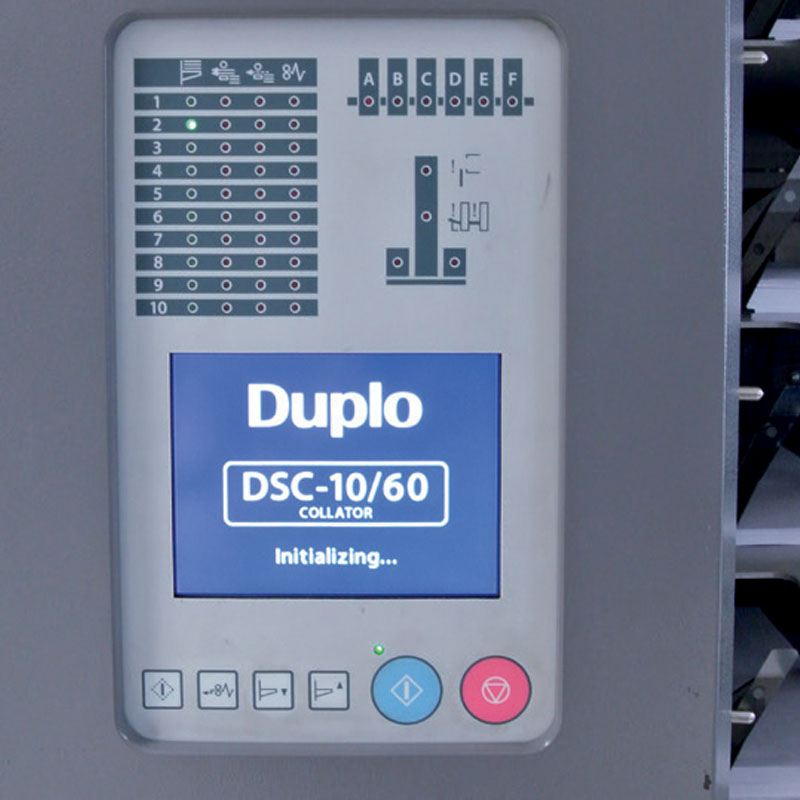

Built around the DSC-10/60, a heavy-duty feeding system, provides the user with the power, reliability and flexibility to handle a wide range of material with consistent results. Handles Heavy stock, laminated, pre-folded, whether produced from a digital or offset press. The Duplo AMS (Air Management System) allows the operator to fine tune air control for each feed tray for reliable feeding. Using Block Mode which enables the feed trays to be loaded on the run, further improves productivity. Whilst the optional Ultrasonic kit automatically identifies double sheets, a superior feature to common light-based detection systems especially for heavy cover stock.

Integrates the Duplo DBM350T

To the left is the DBM-350 Booklet maker and Trimmer. A compact integrated system that sets up automatically from job memories to stitch, fold and fore-edge trim to create a booklet or flat document. A wide variety of booklet formats from smaller-than-CD to A4 portrait finished size are possible. The DBM350T incorporates powerful stitching heads for high volume booklet making applications. Stitching heads ensure higher productivity and less down time with up to 50,000 stitched booklets created from each spool. Another useful feature of the DBM350T is the spine press, this flattens the spine prior to trimming and gives a flatter finish to your booklets.

Connecting the collator and booklet maker is a transport unit with reject tray to out-sort incorrect sets. Allowing operation to continue without interruption, another feature that maintains automatic quality control and production levels without unnecessary stoppages. For when you don’t want to make booklets. Divert the collator to the right side and collect sets in a simple jogger or deep pile stacker. Useful for preparing NCR sets, packs of marketing material, or documents to be wire or perfect bound.

The optional Duplo DSS350 Square Spine can be added to create professional looking booklets with a perfect bound effect.

Service the production from offset and multiple digital presses without being restricted to one print engine. The 350 Booklet System provides the platform that lets you translate a wide variety of media, into a range of sizes to meet your customer demands.

Why Duplo?

Duplo is a Japanese company which was established in 1951. Manufacturing one of the first duplicators in the print industry. In 1959, Duplo got its name “Duplo” coming from the word “Duplicator”. Duplo is now the leading supplier of print finishing equipment in the world having launched over 50 product ranges.

Today Duplo is dedicated to turning paper into great communication, pushing the boundaries of what’s possible with printed media. Duplo lead the world in the field of Multi Function Finishing Machines with the DC618, DC648 & DC746. Duplo were the first to bring this style of machine to market with the latest evolutions offering incredible performance and automation. Their booklet making ranges are just as impressive, starting with the entry level DBM150 through to the iSaddle systems, a solution for every requirement.

5 Reasons to Buy a Duplo 350 Booklet Maker System

  • Powerful automated booklet making solution with Stitching Heads
  • Consistent and reliable feeding of a wide range of media up to 300gsm
  • Collate only at high speeds of up to 10,000 sets per hour
  • Modular design grows as your business demands change or expand
  • Produce up to 3,000 booklets per hour

Typical Applications – Duplo 350 Booklet Maker System

  • Booklets
  • Order of Service
  • Brochures
  • Magazines
  • Newsletters
  • Instruction Manuals
  • Training Manuals
  • Menu’s

Duplo DBM350T Specifications

  • Maximum Sheet Size Booklets (W x L) – 320 x 460mm
  • Minimum Sheet Size Booklets (W x L) – 148 x 210mm
  • Maximum Sheet Size Side or Corner Stapling (W x L) – 215 x 297mm
  • Minimum Sheet Size Side or Corner Stapling (W x L) – 182 x 257mm
  • Paper Capacity – 20 Sheets + Cover x 1 (300gsm+)
  • Cover Type – Art Coated up to 300gsm
  • Stapling Thickness – Fine Quality up to 2.0mm regardless of paper weight / Art Coated up to 1.9mm regardless of paper weight
  • Trimming Capacity – 4 to 50 sheets
  • Trimming Waste Width – 1 to 20mm
  • Max Processing Speed – Up to 3,000 Cycles per Hour
  • Number of Stitching Heads – 2
  • Stitch Positions – Saddle, Fold Only, Corner & Side
  • Adjustments – Independent Stitch & Fold Position Adjustment, Independent Skew Adjustment for Stitch, Fold & Trim.
  • Error Detections – Double Feed, Miss Feed, Bin Empty, Paper Jam, Staple Near Empty, Cover Open, Stop Position Error, Motor Overload, Fold Roller Gap Setting
  • Operation Panel – LCD Display
  • Noise Emission – 75db (A)
  • Dimensions (W x D x H) – 2,740 x 650 x 1,030mm
  • Net Weight – 310kgs
  • Power Requirement – 230V, 50Hz, 3.8A – Normal UK Plug

Duplo DSC 10/60 Collator Specifications

  • Number of Bins – 10 to 40
  • Bin Capacity – 65mm
  • Sheet Length – 148 to 610mm
  • Sheet Width – 105 to 350mm
  • Paper Weight – 50 to 300gsm
  • Paper Type – Sheet, Folded, Cross Folded, Envelope (Option)
  • Detection – Double Feed, Miss-Feed, Paper Jam, Ultrasonic (Option)
  • Feed System – Vacuum Belt with Air Sheet Separation (AMS)
  • Other Features – Cover Insert Function, Alternate Mode, Block Mode, Processing Speed, Paper Overlap.

Overall System Dimensions

  • Single Tower System (W x D x H) – 3,280 x 1,180 x 1,972mm
  • Twin Tower System (W x D x H) – 4,630 x 1,180 x 1,972mm
