The Duplo 350 Digital Booklet Maker System marries the DSF-2200 Sheet Feeder with the DBM350 Booklet Maker and Trimmer, creating a cost-effective mid-range booklet-making system. Configured to meet the ever-changing demands of today’s digital printer. Designed to take the printed output from multiple sources and streamline the finishing process through one finishing line.
Built around the DSF-2200, a heavy-duty sheet feeding system. Providing the user with the power, reliability and flexibility to handle a wide range of materials with consistent results. Equipped with an 8 belt feeding mechanism which enables the feed head to make contact with a large area of the sheet. Each bin comes with three separate DC fans, one to provide suction for feeding, another to provide front air separation and a final one to provide side air. Combined they ensure optimal paper separation and reliable feeding. The Duplo AMS (Air Management System) allows the operator to fine tune air control for each feed tray.
A PC Controller manages the system. This automatically sets up jobs within a few seconds without the need for any tools. The operator can create and save jobs with ease for future recall. State of the art Ultrasonic Technology comes as standard. The ultrasonic sensor detects air gaps between the sheets when a double feed occurs, regardless of ink colour or paper density. This enables the operator to feed different paper weights within the same job.
Integrates the Duplo DBM350T

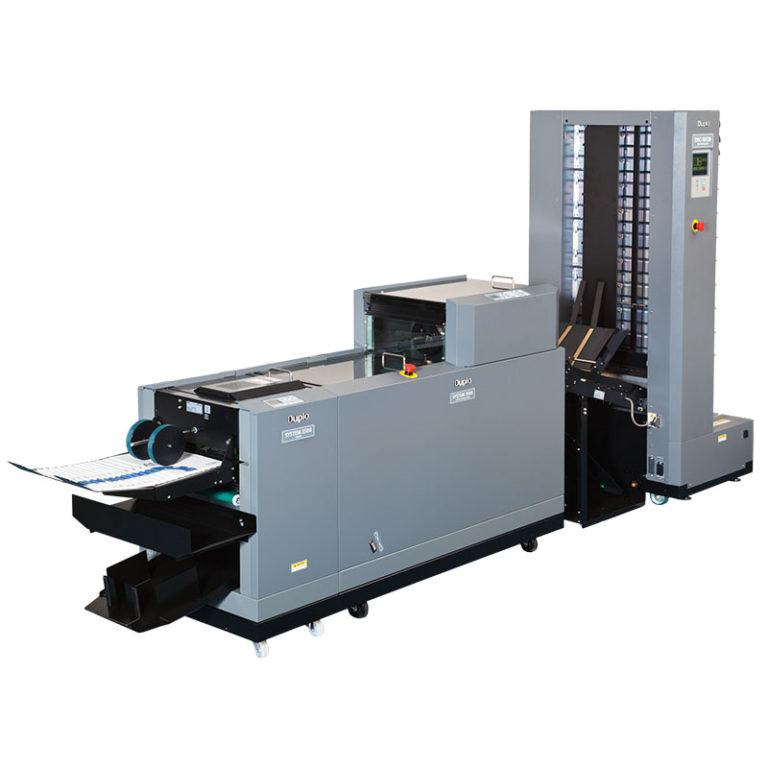

To the left is the DBM-350 Booklet maker and Trimmer. Duplo’s fully automatic mid-range booklet-maker meets the needs of a busy digital print environment conscious of budget expenditure. But, needing to produce a broad range of quality material. Typical production is a wide variety of booklet sizes of A4, A5, A6 and landscape A5. Custom sizes and hand feeding capabilities are also standard.
Stitching heads provide a heavier duty cycle and lower running costs compared to staples. Loop form stitches are also possible, allowing the booklet to be filed in a ring binder. An integrated spine press creates flatter books for a better finish. Whilst the fore-edge trimmer unit provides one final neat finish to the booklet.
Integrity & Security
The system can be equipped with features like Optical Mark Recognition (OMR) and optional Barcode Kits that can read 1D and 2D barcodes. The kit comprises of two readers for each feed tray and is designed to check the integrity of each set by reading a printed barcode on each sheet that is processed. Securing the production process and guaranteeing an accurate result. These features are especially important for personalised and variable production.
Why Duplo?
Duplo is a Japanese company which was established in 1951. Manufacturing one of the first duplicators in the print industry. In 1959, Duplo got its name “Duplo” coming from the word “Duplicator”. Duplo is now the leading supplier of print finishing equipment in the world having launched over 50 product ranges.
Today Duplo is dedicated to turning paper into great communication, pushing the boundaries of what’s possible with printed media. Duplo lead the world in the field of Multi Function Finishing Machines with the DC618, DC648 & DC746. Duplo were the first to bring this style of machine to market with the latest evolutions offering incredible performance and automation. Their booklet making ranges are just as impressive, starting with the entry level DBM150 through to the iSaddle systems, a solution for every requirement.
5 Reasons to Buy a Duplo 350 Digital Booklet Maker System
- Stitching Heads ensure lower operational costs compared with staples
- Ability to take printed output from multiple sources – Handles pre-collated media
- Consistent and reliable feeding of a wide range of media up to 300gsm
- Ultrasonic Technology as standard secures the production workflow
- Produce up to 3,000 booklets per hour
Typical Applications – Duplo 350 Digital Booklet Maker System
- Booklets
- Financial & Investment Reports
- Benefit Statements
- Pension Statements
- Personalised University Prospectus
- Order of Service
- Brochures
- Magazines
- Newsletters
- Instruction Manuals
- Training Manuals
- Menu’s
Duplo DBM350T Specifications
- Maximum Sheet Size Booklets (W x L) – 320 x 460mm
- Minimum Sheet Size Booklets (W x L) – 148 x 210mm (105mm width possible with Small Booklet Kit)
- Maximum Sheet Size Side or Corner Stapling (W x L) – 320 x 231mm
- Minimum Sheet Size Side or Corner Stapling (W x L) – 200 x 180mm
- Paper Capacity – 20 Sheets + Cover x 1 (300gsm+)
- Cover Type – Art Coated up to 300gsm
- Stapling Thickness – Fine Quality up to 2.0mm regardless of paper weight / Art Coated up to 1.9mm regardless of paper weight
- Trimming Capacity – 4 to 50 sheets
- Trimming Waste Width – 1 to 20mm
- Max Processing Speed – Up to 3,000 Cycles per Hour
- Number of Stitching Heads – 2
- Stitch Positions – Saddle, Fold Only, Corner & Side Stitch
- Adjustments – Independent Stitch & Fold Position Adjustment, Independent Skew Adjustment for Stitch, Fold & Trim
- Error Detections – Double Feed, Miss Feed, Bin Empty, Paper Jam, Staple Near Empty, Cover Open, Stop Position Error, Motor Overload, Fold Roller Gap Setting
- Operation Panel – Touch Screen PC Controller with Duplo Software
- Noise Emission – 75db (A)
- Dimensions (W x D x H) – 2,740 x 650 x 1,030mm (Inc Belt Stacker)
- Net Weight – 310kgs
- Power Requirement – 230V, 50Hz, 3.8A – Normal UK Plug
Duplo DSF-2200 Digital Feeder Specifications
- Number of Bins – 2
- Upper Bin Capacity – 65mm
- Lower Bin Capacity – 200mm
- Sheet Length – 148 to 450mm
- Sheet Width – 105 to 350mm
- Paper Weight – 64 to 300gsm
- Paper Type – Sheet, Variable Paper in the Same Stack
- Detection – Double Feed, Miss-Feed, Paper Jam, Ultrasonic (Both Bins as Standard)
- Feed System – Vacuum Belt with Air Sheet Separation (AMS)
- Operation Panel – Touch Screen PC Controller with Duplo Software
- Other Features – Active Anti-Static Bar, Touchscreen PC Controller with Duplo Software
- Optional – OMR End of Set Mark Reader, Barcode Reader Kit, Trail Edge Air Kit, Pre-Loading Kit
- Net Weight – 115kgs
- Power Consumption – 130W, 0.7-1.2A
- Power Requirement – 230V, 50Hz – Normal UK Plug
Overall System Dimensions
- Duplo 350DBS System (W x D x H) – 3,100 x 750 x 1,030mm
