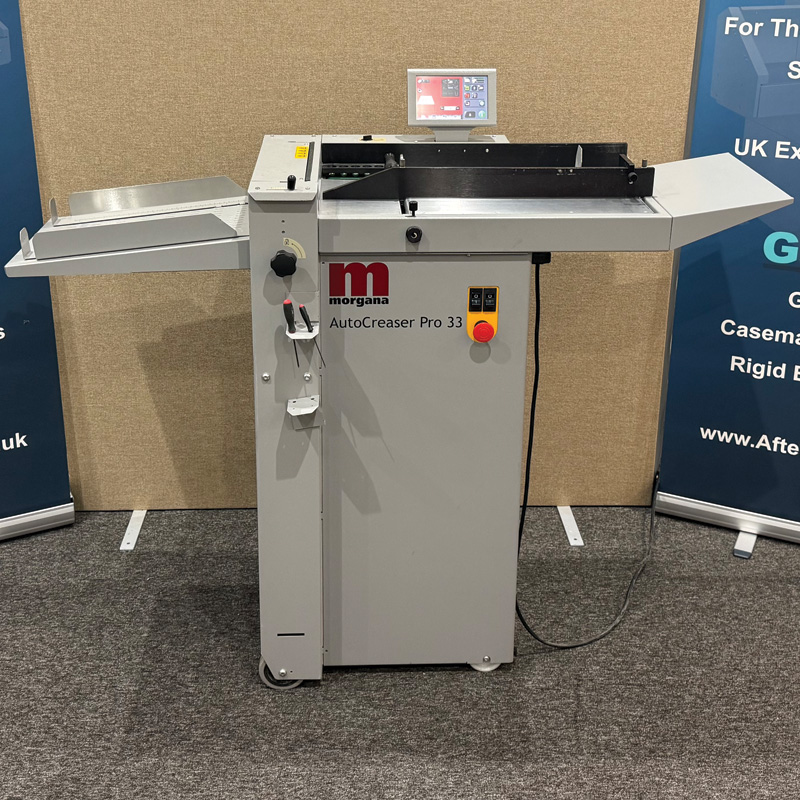

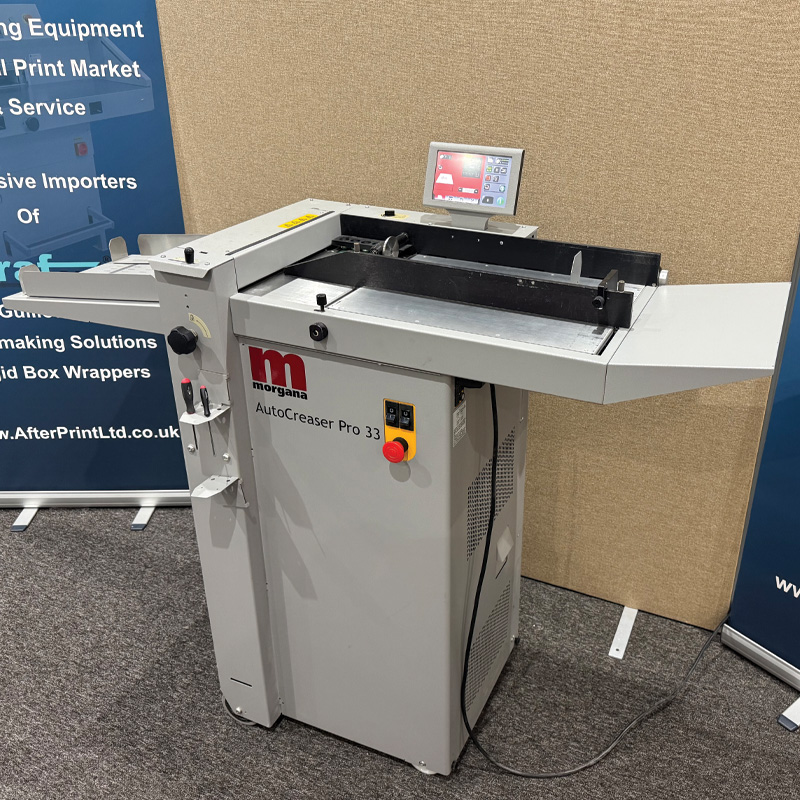

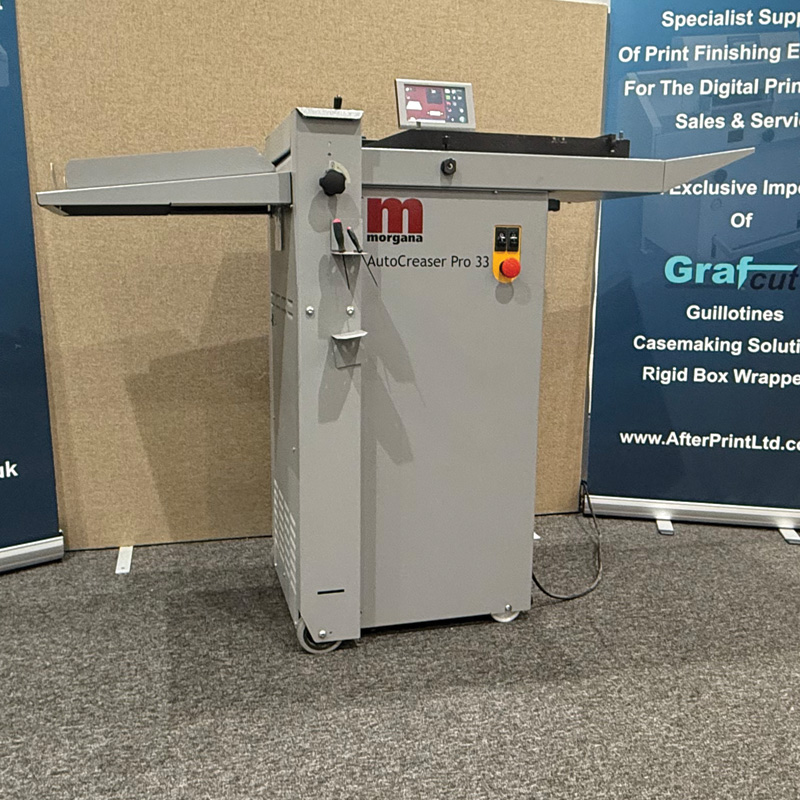

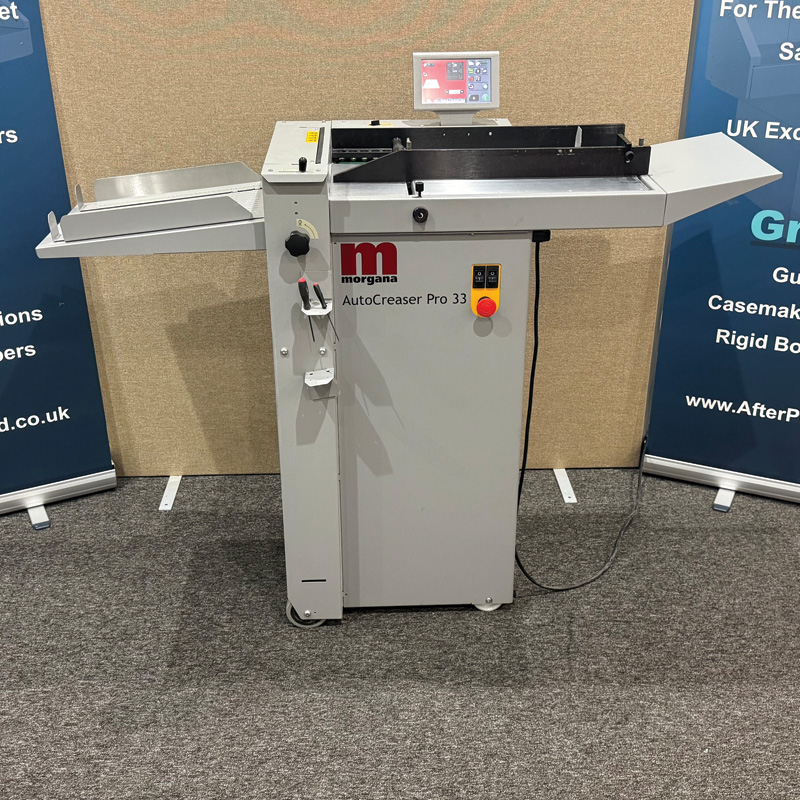

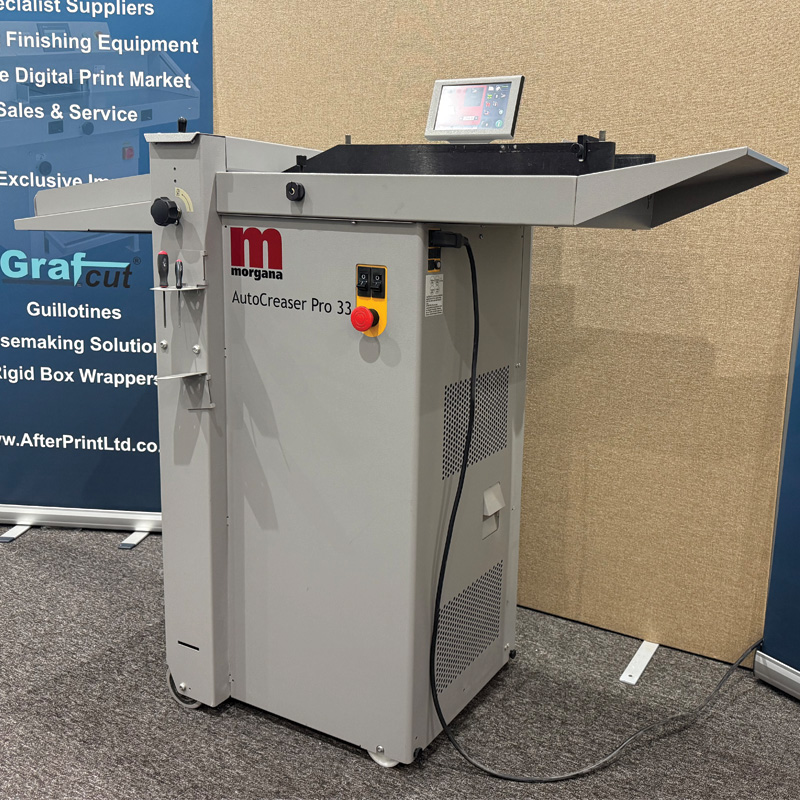

Refurbished Morgana AutoCreaser Pro 33

  • Immaculate Example with a low total count
  • Crease up to 8,500 sheets per hour
  • Apply up to 16 creases per sheet
  • Eliminates fibre cracking on a wide range of printed materials
  • Morgana Posifeed feeding system
  • Fully Automatic operation
  • Crease & Matrix rule crease (Guaranteed for life)
  • Handles stock up to 400gsm
  • Intuitive and easy to use
  • Program storage for infinite number of jobs
  • Perforation as standard
  • Available for Demo at our Cheshire Showroom
Read MoreLess

£4,500.00 ex VAT

£5,400.00 inc VAT

50+ Years’ Experience Combined industry expertise you can rely on
Expert Advice Helping you find the right solution for your needs
Fast & Reliable Delivery 24–48 hour delivery on most orders
Technical Support Expert maintenance, repairs and genuine parts

Description

Specifications

We have available this Used Morgana AutoCreaser Pro 33. The machine is in an excellent overall condition. The driving rollers are all perfect with no marks or knicks. The rubber output tyres have also been replaced to ensure the machine is ready for its new owners.

Demonstration available in our showroom in Cheshire, 10 Minutes from Junction 9 of M62 or Junction 21a of M6.

Comes with 3 Month Mechanical Parts Warranty

The AutoCreaser, made in the UK by Morgana, provides the complete solution to the problem of cracking that occurs when folding digitally printed output. It is equally effective in dealing with conventionally printed card, laminates or cross-grained stock.

Traditional rotary scoring machines use circular blades that are in constant motion as the stock passes through them. This creates a ploughing action that actually cuts through the top fibres of the paper or card in order to create a score. Inevitably this weakens the paper and encourages cracking. In contrast, the Morgana AutoCreaser Pro 33 employs a unique creasing rule and matrix that eliminates tearing and, therefore, cracking.

Key Features of the Morgana AutoCreaser Pro 33

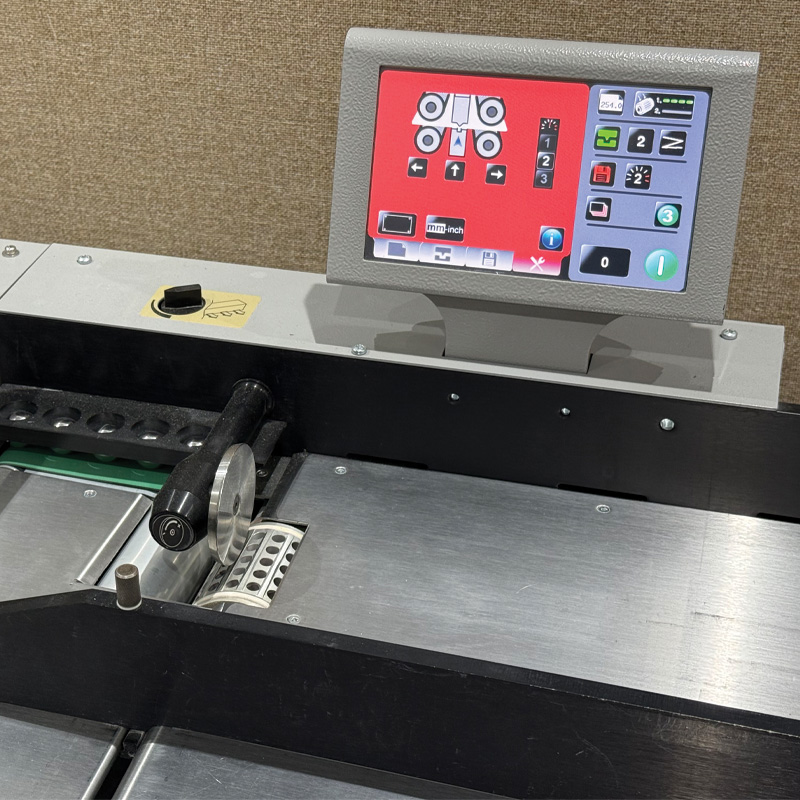

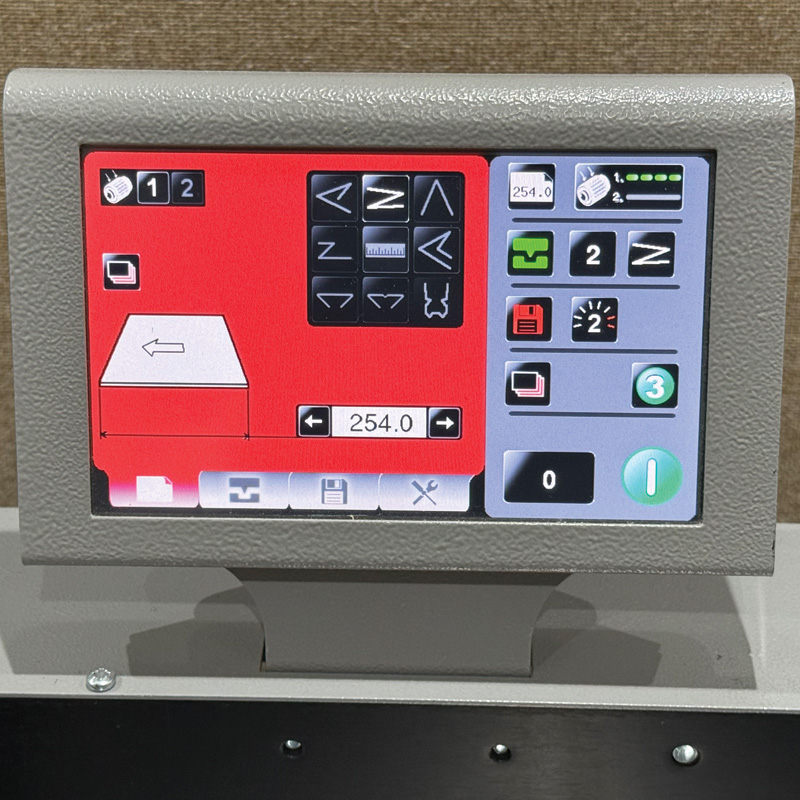

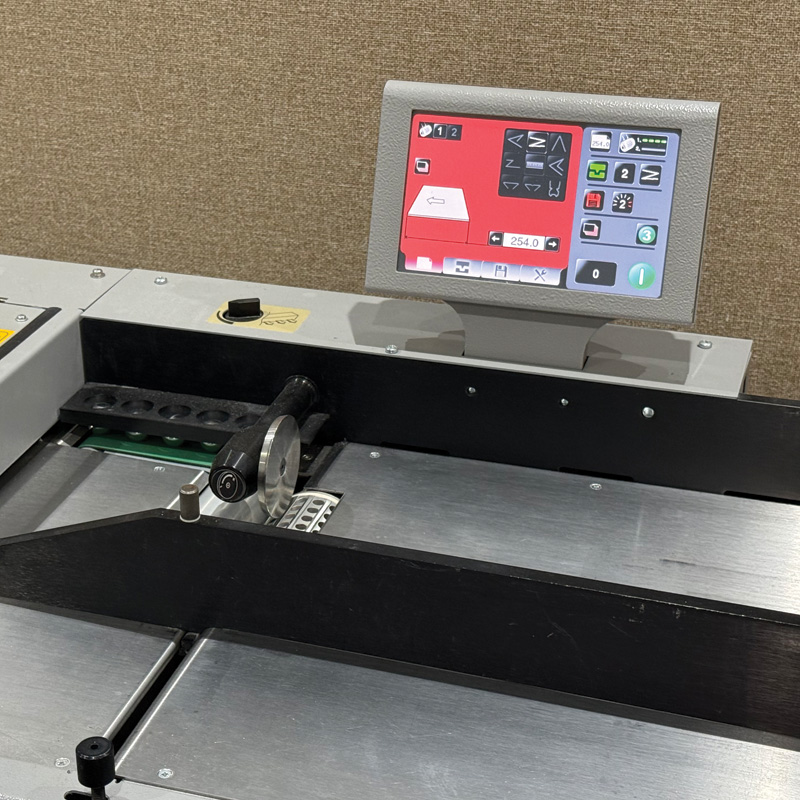

  • 72 SmartScreen touch screen
  • Intuitive and easy to use
  • fully automatic
  • Up to 16 creases per sheet
  • Accepts stock up to 0.4mm (approx 400gsm)
  • Rule and matrix guaranteed for life
  • 8,500 sheets per hour
  • Unlimited alpha-numeric memory
  • Adjustable crease depth and square
  • Perforating as standard
  • Creases without cracking
  • Maximum Sheet Size – 700 x 330mm
  • Minimum Sheet Size – 210 x 140mm
  • Maximum Paper Thickness – 0.4mm (approx 400gsm) including laminated material
  • Minimum Paper Thickness – 0.11mm (approx 80gsm)
  • Maximum Number of Creases per Sheet – 16
  • Maximum Number of Programmed Applications – Unlimited
  • Minimum Repeat Crease Distance – 1mm (depending on paper weight)
  • Minimum Crease Distance from Leading Edge – 2.5mm
  • Minimum Crease Distance from Tail Edge – 35mm
  • Speed per Hour – 8,500 sph (A4) 11,000 sph (A5)
  • Dimensions (L x W x H) – 1,450 x 522 x 1,224mm
  • Weight – 121Kgs
  • Power Requirement – 240V 60/60Hz
