Plastic Coil Binding

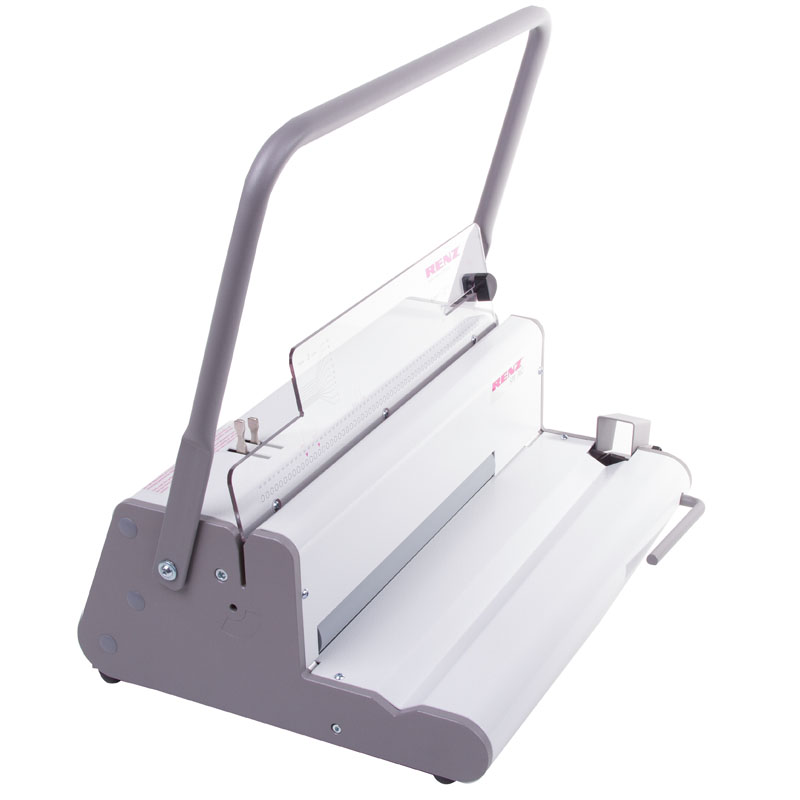

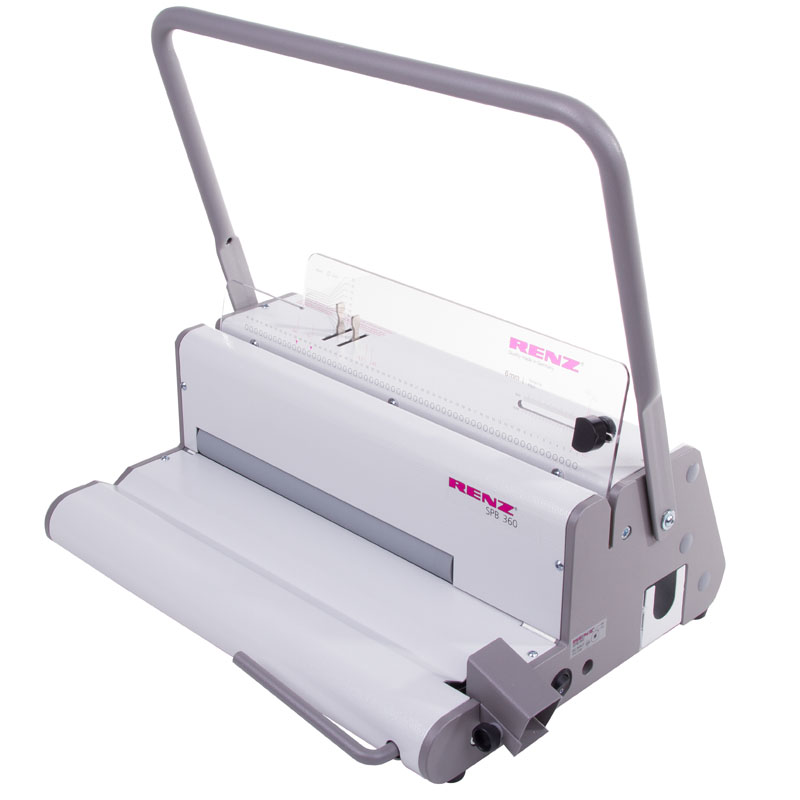

Renz SPB360 Coil Binding Machine

  • All in One Coil Punch & Binding Machine
  • Electrically Operated Coil Insertion with Manual Cut & Crimp
  • Modular Design – Upgrades to Comfort Plus with Additional Motor Drive
  • Durable Heavy Duty Coil Insertion Device
  • Cut & Crimp Unit Cuts and Folds the Coils to Ensure a Perfect Presentation

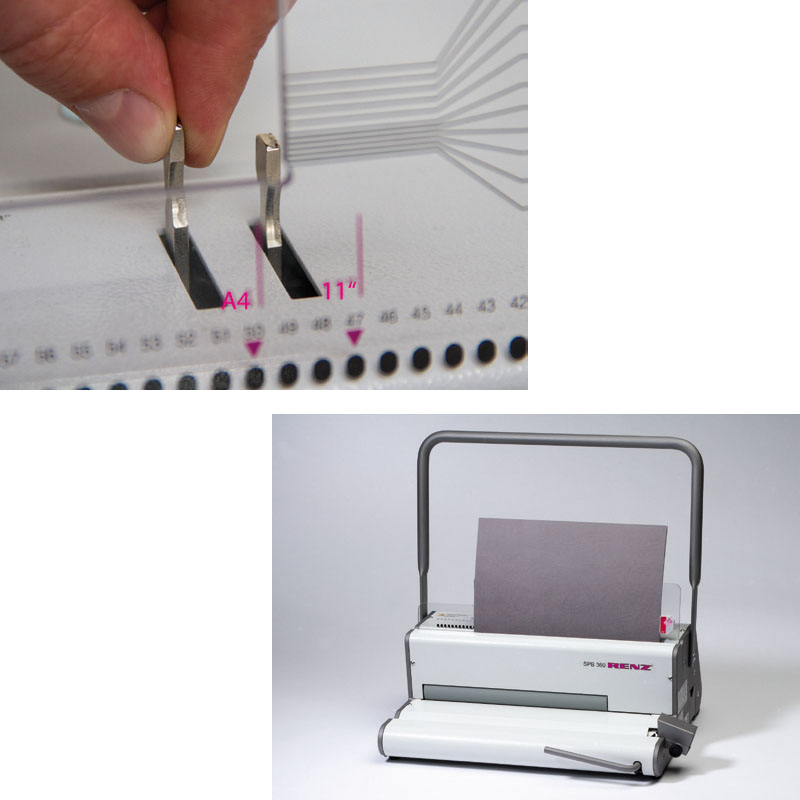

  • QSA Selectable Punch Pins for A4 & A5
  • Binds Documents up to 160 Sheets
  • Compatible with 6mm to 20mm Binding Coils
  • Bind A4, A5, & Short Edge A3 Documents
Read MoreLess

£1,899.00 ex VAT

£2,278.80 inc VAT

£1,899.00 £2,278.80Add to basket


Demonstration Video



The Renz SPB360 is a combined coil punch and coil inserting machine. The Renz SPB360 incorporates Renz’s universal lever format for punching. Whilst the electric roller inserts with ease before the manual cut & crimp unit complete the document. QSA (quick size adjustment) selectable punching pins located on the top of the machine complete the package.

Designed for low to medium volumes of PVC coil book production. Perfectly suited for use in a small to medium size office or education reprographics department. Compatible with all binding coils from 6mm to 20mm.

The integrated electrically operated roller makes inserting the coils very easy. The roller inserts the coil in seconds, whilst the manually operated cut and crimp unit completes the task. Zero setup is required to change coil diameter, allowing the machine to be as flexible as possible.

Why Renz?

High-quality, adaptable German engineered systems for any loose-leaf punching or binding style. Renz manufacturer state of the art punching, binding and laminating systems, from desktop to high output automated line equipment. Renz machines will make it easier to keep jobs in-house, allowing you to maintain a quick turnaround and maximise your return on investment.

Decades of experience designing and manufacturing punching, binding and laminating equipment. Recognised as the leading manufacturer in the punching and binding industry.

5 Reasons to Buy a Renz SPB360

  • Compact all in one coil binding solution
  • Electrically powered roller makes inserting the coils quick and easy
  • Integrated cut and crimp unit allows easy completion of the bind
  • Silent in operation
  • Binds all coil sizes from 6mm to 20mm

Typical Applications – Renz SPB360

  • Financial Reports
  • Company Minutes
  • Tender Documents
  • Staff Handbooks
  • Student Diaries
  • Punching Operation – Manual
  • Insertion Operation – Electric Roller Insert with Manual Cut & Crimp
  • Pitch – 6mm / 0.2476″
  • Punch Die Tool – Oval 5 x 4mm
  • Max Binding Width – 340mm
  • Min Binding Width – 10mm
  • Punching Capacity – 2.0mm (20 sheets)
  • Binding Thickness – 1-16mm
  • Binding Elements – 6 to 20mm
  • No of Books Per Hour – 40
  • Dimensions (L x W x H) – 360 x 490 x 250mm
  • Weight – 19kgs
  • Power Requirement – 240V – 90W
