Duplo DC616 PRO Slitter, Cutter & Creaser
- Fully automated multi-function finishing solution
- Comes complete with touchscreen PC Controller and Duplo Software
- Slit, Cut, Crease & Perforate in a single pass
- Automates the complete finishing cycle in one pass
- Replaces the guillotining process within a digital print environment
- Integrate with Fiery Impose to streamline your production workflow
- Unattended operation thanks to Barcode Reader
- Top feed vacuum technology
- 100mm feeder capacity for uninterrupted production
- LCD Control panel with 80 program memory
- Apply up to 6 slits, 20 creases and 25 guillotine cuts
- Electronic depth adjustment of crease depth
- Handles a Wide Variety of Media Types – Coated, Uncoated and Laminated materials
- Process up to 10 sheets per minute
- Very Economical to Run
- Call or Click Enquire to Request an Official Quotation
Read MoreLess
£11,975.00 ex VAT
£14,370.00 inc VAT
Description
Demonstration Video
Specifications
Alliance Package Included
Just arrived in stock, a Duplo DC616 Pro multi-function finisher. We have serviced this machine since new having originally installed it in 2017. The machine has gone through our workshop with any worn or tired parts replaced. The DC616 Pro is in perfect working condition with all rollers, slitters and blades in excellent condition ready for use by its new owner.
Demonstration available in our showroom in Cheshire, 10 Minutes from Junction 9 of M62 or Junction 21a of M6.
Comes with our Alliance Service Package & a 6 Month Parts Warranty.
The Duplo DC616 PRO is the perfect option for the short-run on-demand digital printer. With the ability to process up to 6 slits, 25 cuts and 20 creases in a single pass, the DC-616 delivers full-bleed applications at the press of a button. Process Up to 10 sheets per minute without white borders and toner cracking for a clean finish. Bring your print finishing in-house with the Duplo DC616 Pro!
The versatility of the DC616 Pro makes it ideal for finishing full bleed applications in a single pass. Its rotary slitters, guillotine cutter and depth-adjustable creaser provides the versatility of multiple machines without the costly, manual setup and production times. Margins trimmed horizontally by the slitter and vertically by the cutter are automatically deposited into the large waste bin. Only the finished pieces are delivered to the exit tray.
The creaser utilises male and female matrix channels to create up to 20 creases across the sheet, enabling documents to be folded with ease. Creasing performance is optimised via the adjustable 3-step crease depth for various paper types and weights. The card stacker which is ideal for business cards and postcards keeps smaller finished applications neatly stacked and organised.

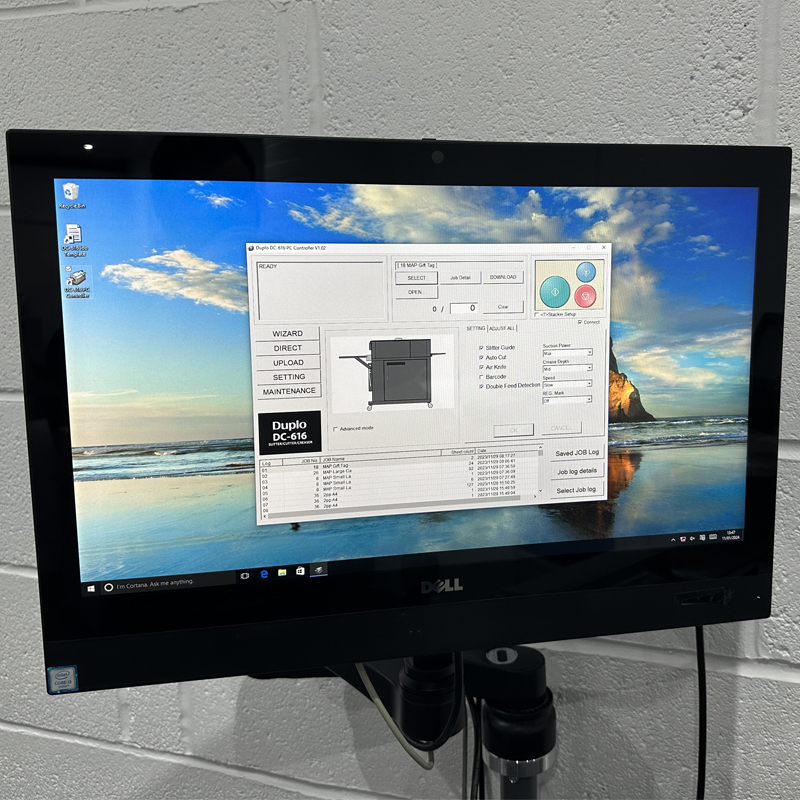

PC Controller
The PC Controller’s software wizard makes it simple for operators to create new jobs, make adjustments, and save a virtually unlimited number of jobs to the PC’s enabling faster changeovers. Using the Window PC user interface, even inexperienced operators can program jobs with ease. Make quick adjustments, and save an unlimited number of jobs on the hard drive for instant format changes.
Extend the possibilities with multiple finishing options
Optimise layout and productivity to create a wide range of high-value complex applications. Including tear-off tickets or reply cards.

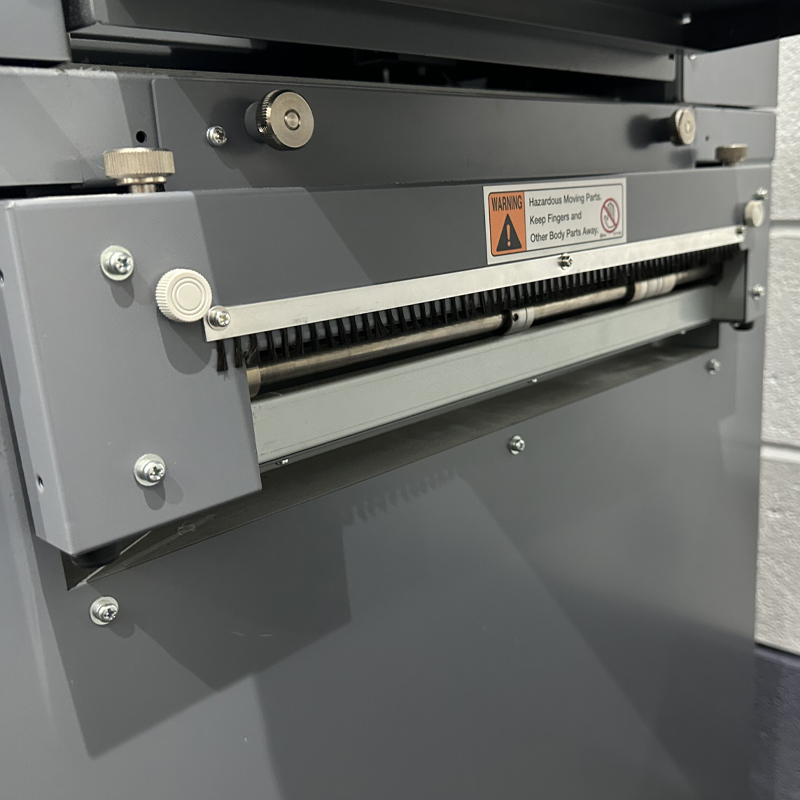

Perforation Module – Manual setup with two tools for continuous perforations or creases in the direction of paper movement.
Rotary Crease Tool (Tech-ni-fold) – Optional equipment that fits onto the Perforator Shafts and enables high quality rotary creasing using Tech-ni-folds patented crease technology. Ideal for tall A3 menu’s or multiple up greeting cards that require creasing down the length of the sheet. Ask for pricing.
Automatic Barcode and Registration Mark Scanner
Using the built-in CCD to read a printed barcode, the DC616 will recall the job from memory and automatically setup, reducing changeover time and errors. The automation is complemented by a second feature of the CCD, to read a printed mark and compensate for any horizontal or vertical movement in the image. Ensuring precision finishing every time.
Why Duplo?
Duplo is a Japanese company which was established in 1951. Manufacturing one of the first duplicators in the print industry. In 1959, Duplo got its name “Duplo” coming from the word “Duplicator”. Duplo is now the leading supplier of print finishing equipment in the world having launched over 50 product ranges.
Today Duplo is dedicated to turning paper into great communication, pushing the boundaries of what’s possible with printed media. Duplo lead the world in the field of Multi Function Finishing Machines with the DC618, DC648 & DC746. Duplo were the first to bring this style of machine to market with the latest evolutions offering incredible performance and automation. Their booklet making ranges are just as impressive, starting with the entry level DBM150 through to the iSaddle systems, a solution for every requirement.
5 Reasons to Buy a Duplo DC616 PRO
- Fully automated multi-function finishing solution with PC Controller
- Slit, Cut, Crease & Perforate in a single pass
- Replaces the guillotining process within a digital print environment
- Proven reliability
- Unattended operation even for variable data thanks to Barcode Reader
Typical Applications – Duplo DC618 PRO
- 21 Up Business Cards
- Postcards
- Greeting Cards
- Invitations
- Perforated Tickets
- Brochures
- Menu’s
- Direct Mail Pieces
- Book Covers
- Tear Off Vouchers
- Reply Cards
- Maximum Sheet Size (W x L) – 320 x 650mm (Longer sheets up to 999mm can be processed with an optional tray extension)
- Minimum Sheet Size (W x L) – 210 x 210mm
- Paper Type – Uncoated, Coated & Laminated
- Input Paper Weight – 110 to 400gsm (paper curl within +/- 3mm)
- Feeder Capacity – 100mm (exit tray 110mm)
- Feeder Type – Top feed / 8 belt suction
- Feeder Speed – 21-up Business Cards 300 sheets p/hr, 4-up Greeting Cards 42 sheets p/hr, 2-up A4 540 sheets p/hr
- Number of Slits – Up to 6 per sheet
- Guillotine Cuts – up to 25 per sheet
- Number of Creases – Up to 20 creases per document across the paper direction
- Crease Depth Adjustment – 3 Steps (from control panel)
- Crease Tolerance – +/-0.3mm
- Minimum Finished Size (W x L) – 48 x 50mm
- Waste Bin Capacity – 75 Litres
- Controller – Touchscreen PC with Duplo Software
- Memory – Unlimited with PC Controller
- Error Detections – Paper Jam, Double Feed, Feeder Empty, Stacker Full
- Standard Features – Air Knife, Card Stacker, Automatic gutter slitters, CCD Scanner, Ultrasonic Double Sheet Detection
- Optional – Tech-ni-fold Rotary Crease Tool
- Dimensions (W x D x H) – 1,600 x 620 x 1,050mm (1,654mm to the top of the PC)
- Net Weight – 150kgs
- Power Consumption – 100W, 0.7A
- Power Requirement – 230V, 50Hz – Normal UK Plug
Introducing our unique Alliance Package. Our support does not cease once we make the sale or agree on a deal. At AfterPrint Ltd we are unique; our aim is to develop long-term business relationships that ensure you return to buy again when the time comes.
To ensure we are offering the most comprehensive package all of our Digital Finishing Solutions come complete with our unique Alliance Service Package. This package ensures your new purchase is taken care of correctly from day 1 and throughout your ownership of the product, to do this we include:
Delivery
- A Pre-Delivery Inspection is conducted on every machine prior to shipment
- A site survey will be conducted prior to shipping to ensure the delivery goes smoothly
- Specialist instrument logistics companies with freight insurance are used for delivery
- All deliveries are completed with Tail-Lift equipped vehicles & a minimum two-person team
- Customers are offered suitable timed delivery slots with a 2 Hour delivery window
Installation
- Our Installation Team will arrive at an agreed time to complete the installation (Normally on the same day as the delivery unless otherwise specified)
- The installation team will complete a thorough check of all processes and operations of the machine against the PDI checklist
- If the machine has been split into smaller components for delivery, the installation team will re-build the machine onsite
- Standard installation is ground floor with direct access, splitting the machine and re-building will not incur extra charges
- Installations required on upper floors will require lift access or extra charges will be incurred. All charges will be made clear and agreed upon before the installation date.
Training
- Training will be conducted by our trained and certified Specialist Training Team
- Training includes Best Working Practices for Safe Operation, General Operation, Job Programming, Crease Adjustments
- All trained operatives will be issued with an official training certificate from our Certified Trainers (Certificates are created and posted within 7-10 days of training completion)
- Training is completed in small groups of up to three people maximum
- Training is normally completed on the same day as the installation
12 Month Manufacturer Warranty
- Manufacturer Warranty on all parts from the date of installation
- All Manufacturer warranties do not include labour, travel or identifying of parts (See Service Section)
12 Month Alliance Service Benefits
- 20% Discount on All Parts (Discount will be taken from Standard UK Sales Price of each Part)
- Direct Technical Team Access on the first phone call to discuss the fault (this will speed up any part requirements and offer a solution if possible that the operator can implement)
- Guaranteed next day appointment for an engineer to be onsite (Technical team will allocate during the initial phone conversation and confirm)
- Technical Team will identify if parts could be needed to resolve the issue, parts will be dispatched the same day so the engineer can meet parts on-site and perform the repair
- Parts will only be requested for payment once the parts are fitted and the machine is operational (All parts will be paid on account)
- 3 Month Warranty on all parts we fit (Manufacturer standard warranty is 30 days)
- No Call-Out Charges for Emergency Calls
- No Travel Charges for Emergency Calls
- No Labour Charges (Includes all-time on-site under normal contract conditions)
- 2 Preventative Maintenance visits per annum
- Call out priority given to customers on an agreement (Contracts will take precedence over an Ad-Hoc call out)
- Unlimited Emergency Call Outs – Within reason, Excludes intentional damage
- Free Technical Advice on how to set up machinery or complete certain tasks
