Used Multigraph CF375 Crease & Fold

  • Fully Refurbished – Rebuilt from the frame upwards
  • Crease & Fold up to 5,000 sheets per hour
  • Fold in all Standard Patterns – Half, Letter (C Fold), Z Fold, Gate Fold, Double Parallel
  • Eliminates Fibre Cracking on a whole range of Digital & Lithographic Media
  • Unique Swingarm Crease Action
  • Crease only or Fold only functions
  • 100mm Pile Feeder with Vacuum Belt for Reliable Feeding
  • Touch Screen Controller for Digital Setup without Tools
  • Applies up to 20 Creases in one Pass
  • Ideal for mid to high volume production of Greeting Cards, Leaflets, Menu’s etc
  • Crease & Fold up to 350gsm+ stock
  • Robust Swiss Made Product with Proven Reliability Record
  • Perfect for Digital Printers, Copy Shops, Universities, Commercial Printers
  • Delivery, Installation & full operator Training also available (Extra costs may apply)
Read MoreLess

£7,995.00 ex VAT

£9,594.00 inc VAT

Description

Demonstration Video

Specifications

We have available this Fully Refurbished Multigraph Touchline CF375 Crease & Fold solution. The machine has been stripped down to its bare frame and re-built with every component showing signs of wear replaced. It has had new transport rollers, new steel guides, new feed belts, new delivery belt and several new bearings. Images of the machine in pieces for refurbishment can be provided upon request.

The Multigraf Touchline CF375 is a user friendly creasing and folding machine that will improve your productivity and your finishing quality. Highly efficient and automated, it allows users to crease and fold in a single pass, with setting up finished in seconds. Creasing without fibre cracking is possible using the system’s unique Multigraf Swingbar Crease system. This system allows the crease tool to travel with the sheet, therefore preventing the need to stop the sheet to apply the crease. In turn, this speeds up production to an impressive 5,000 sheets per hour.

The Creaser/Folder Multigraf Touchline CF375 handles a wide range of paper stock. Capable of handling from 130 up to 350gsm, without any tool changes or re-configuring of the machine. Class-leading flexibility allows the CF375 to be used as a stand-alone creaser, a paper folder or with optional tooling a dedicated perforator. An integrated touch screen controller keeps every aspect of the machine operation at your fingertips. With unlimited program memory for repeat jobs and instant recall.

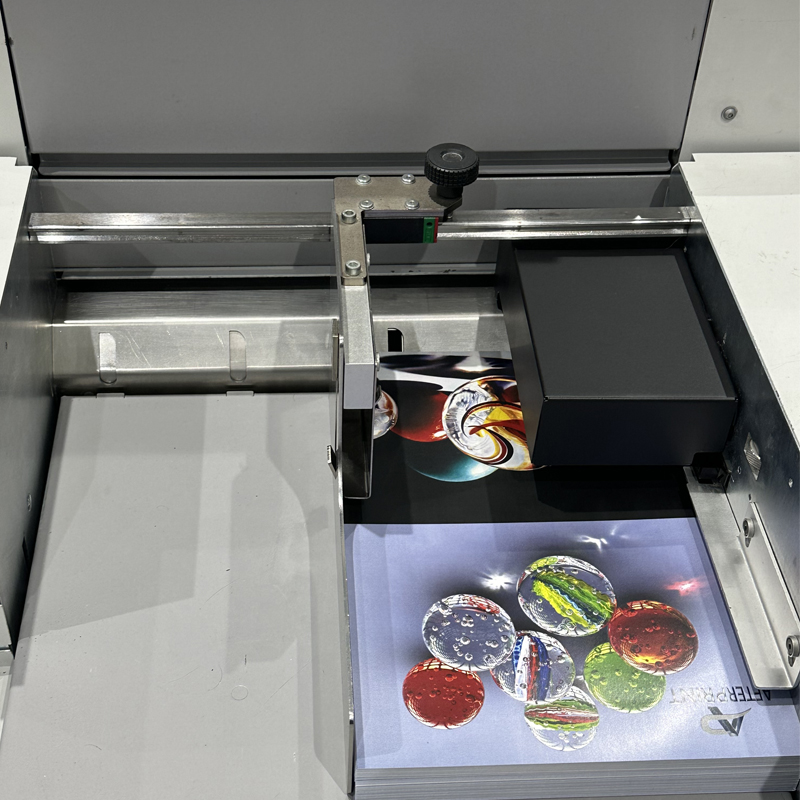

The 100mm high capacity feeder is complimentary to the rated speed and minimises any re-load times. The combination of this capacity along with top feeding design, means the CF375 offers exceptional productivity and allows the operator to perform other tasks. Run your workflow faster and for longer periods, without any interruptions. The long conveyor also separates your job batches making it easier for you to collect and package each job individually. State of the art Ultrasonic double sheet detection comes as standard for highly reliable feed and perfect document integrity.

Why Multigraf?

Accepting challenges: That has always been the motto of Multigraf AG. 40 years ago, they made a name for themselves with innovative print finishing solutions. Flexible solutions that work efficiently and effectively have always been their focus.

The market change from mechanical to digital machines was a challenge but Multigraf have the answer: High tech Swiss made! This enabled Multigraf to transfer their many years of experience to a new generation of digital machines, setting themselves apart from the growing competition. Today the Touchline range of machines are some of the most innovative digital finishing solutions on the market.

5 Reasons to Buy a Multigraf Touchline CF375

  • Crease and Fold in one pass at speeds up to 5,000 sheets per hour
  • Unique Swing-Arm crease tooling speeds up production
  • Crease and fold all standard formats and patterns with no special skills or tools
  • Highly productive feeder with 100mm capacity for uninterrupted production
  • Intuitive touchscreen control makes setup and format changes quick and simple

Typical Applications – Multigraf Touchline CF375

  • Greeting Cards
  • Folded Leaflets
  • Menu’s
  • Order of Service
  • Brochures
  • Flyers & Mailers
  • Feeder System – Vacuum Belt, Pile Feeder, Top Fed
  • Feeder Capacity – 100mm
  • Maximum Sheet Size (W x L) – 375 x 650mm
  • Minimum Sheet Size (W x L) – 105 x 148mm
  • Paper Stock – 130 to 350 gsm+
  • Control Panel – Touchscreen
  • Creasing System – Multigraph Swing Bar
  • Crease Styles – 2 (Narrow and Standard)
  • Crease Depths – 3 Automatically Setup
  • Creasing Accuracy – +/- 0.1mm
  • Max Number of Creases – 20
  • Minimum Distance Between Creases – 30mm
  • Fold System – Multigraph Pro-Knife
  • Number of Folds – 2
  • Fold Length Minimum – 30mm
  • Fold Length Maximum – 500mm
  • Delivery Belt Length – 900mm
  • Reception Tray Height – 120mm
  • Speed – 5,000 p/hr A5 – 3,500 p/hr A4
  • Dimension W x D x H – 1,860 x 600 x 1,320mm
  • Weight – 168kg
  • Power Connection – 240Vac 50/60Hz
