Renz Punch 500 ES Heavy Duty Punch
- Powerful 3 Phase Punching Machine
- Punches up to 4.0mm of Even the Toughest Digital Media Each Cycle
- Specially Developed to Punch the Latest Digital Medias
- Punch a Complete Calendar with Thumb Cut in One Cycle
- Professional 2 Piece Split 3:1 Wire Die with 20mm Thumb Cut
- Punching Dies to All Binding Styles – Wire, Coil, Comb, Calendar
- Highly Productive Punch System – Punches a Wide Range of Mixed Stocks
- Integrated Micro-Switch Operates the Punch Cycle Leaving Your Hands Free
- Foot Pedal Operation of Punch Tool for Awkward Stock Types
- Punches up to 36,000 Sheets Per Hour
- Compatible with Size 4 to Size 24 Binding Wires, Side 6 to 50mm Plastic Combs & 6 to 24mm Coils.
- Selectable QSA Punching Pins on all Die Tools
- Punch & Bind A4, A5, & Short Edge & Long Edge A3 Documents
- Call or Click Enquire to Request an Official Quotation
Read MoreLess
Description
Demonstration Video
Specifications
Alliance Package Included
Ancillaries
The Renz Punch 500 ES is the ultimate heavy-duty desktop or table-mounted 500mm wide punching machine. Incredible punching power that enables it to punch through even the toughest materials with ease. Specially designed to cope with the latest requirements for thicker digital media and high-end bespoke calendars. Punches up to 4mm in thickness, even on the toughest media, making it ideal for punching complete calendars in one cycle.
The Punch 500 ES is an extremely flexible heavy-duty punch with all punch tools integrating QSA (Quick Size Adjustment) technology. Professional two-piece wire tooling integrates a 20mm calendar thumb cut which can be reversed to allow full 500mm punch width when required. Whilst wire bind and calendar work is the most common application, the Punch 500 ES can also punch documents for coil & comb binding.

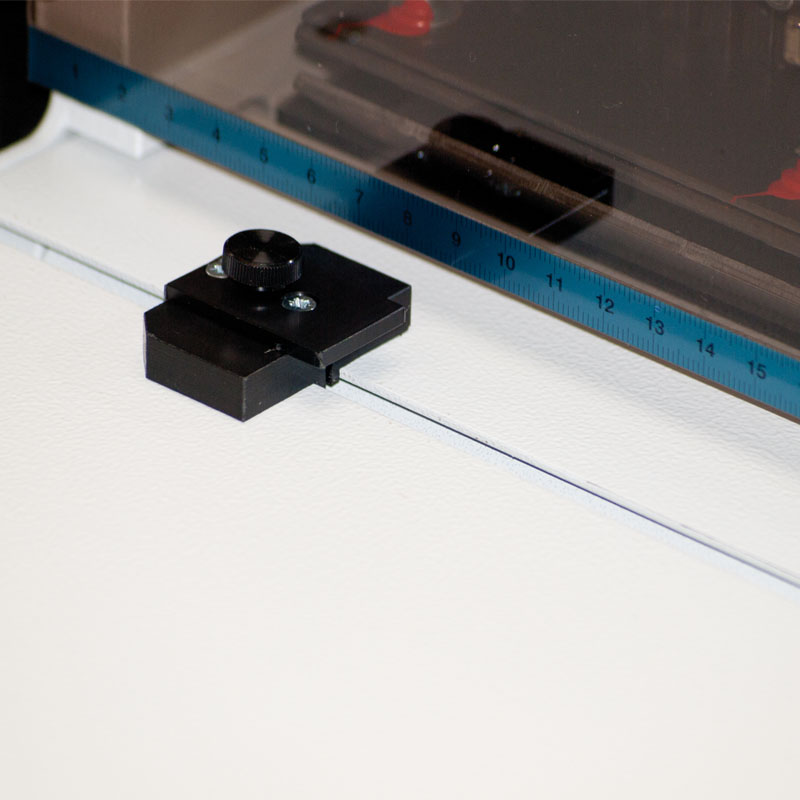

Horizontal punching with large front table to support your document during the punching process. An adjustable side lay with integrated punch activation switch makes operation quick and simple. For larger materials or difficult stocks the punch can also be activated via a foot pedal. Eccentric punch cams allow minute adjustment of the punch depth, this allows the punch pins to also be sharpened for greater longevity of service.
The Renz Punch 500 ES has all the features you would expect from Renz. Functional and easy to use with heavy-duty all steel construction. Reliable electronic punching mechanism with an impressive punch capacity of up to 4.0mm. It is the perfect partner to the Renz Mobi 500 for wire bind and calendar work or the Renz APSI300 for high volume coil binding.
The Punch 500 ES is the perfect solution for any Commercial Printer, Print Shop, Specialist Bindery, Large Corporate Print Room or University.
Why Renz?
High-quality, adaptable German engineered systems for any loose-leaf punching or binding style. Renz manufacturer state of the art punching, binding and laminating systems, from desktop to high output automated line equipment. Renz machines will make it easier to keep jobs in-house, allowing you to maintain a quick turnaround and maximise your return on investment.
Decades of experience designing and manufacturing punching, binding and laminating equipment. Recognised as the leading manufacturer in the punching and binding industry.
5 Reasons to Buy a Renz Punch 500 ES
- The most powerful desktop punch on the market
- Professional 2 piece wire punch tools with 20mm thumb cut
- Eccentric cams allow for punch pin sharpening & extends the life of the punch tools
- Produce, Wire, Plastic Coil, Comb & Calendars all on one machine.
- Punches up to 4.0mm of virtually any media
Typical Applications – Renz Punch 500 ES
- Financial Reports
- Company Minutes
- Tender Documents
- Staff Handbooks
- Calendar Production
- Punching Operation – Electrically Powered via Micro-Switch or Foot Pedal
- Closing Operation – Separate Machine – Recommend Renz Mobi 500 or Renz APSI300
- Punch Dies Available – 3:1 with 20mm Calendar Thumb Cut (2 Piece), 2:1, Plastic Coil, Comb
- Max Punching/Binding Width – 500mm
- Min Punching/Binding Width – 70mm (With Foot Pedal) or 110mm (With Micro-Switch)
- Selectable Punch Pins (QSA) – Yes All Tools
- Variable Margin Depth – Optional
- Punching Capacity – 4.0mm
- Mechanical Cycles Per Hour – 3,000
- Dimensions (L x W x H) – 670 x 450 x 400mm
- Weight – 112kgs
- Power Requirement – 3 Phase 400V – 3.5Kwh
